Home Insulated twin wire-end ferrules, cross-section 2 x 16.0 mm², ferrule length 14 mm

Insulated twin wire-end ferrules, cross-section 2 x 16.0 mm², ferrule length 14 mm

Name: Insulated twin wire-end ferrules, cross-section 2 x 16.0 mm², ferrule length 14 mm
Brand: CIMCO
SKU: 182484
Price: 15594000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Germany

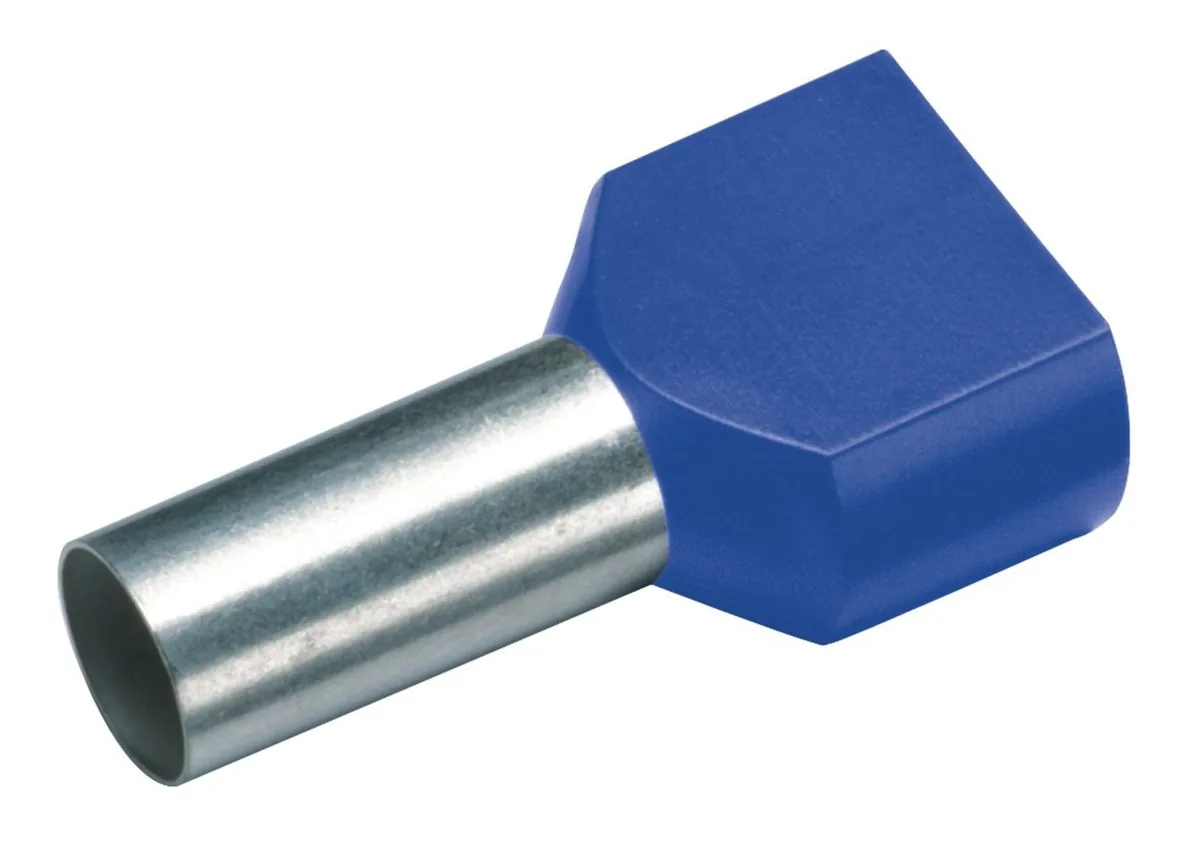

Insulated twin wire-end ferrules according to DIN 46228 part 4, color range according to standard, cross-section 2 x 16.0 mm², ferrule length 14 mm, total length 30 mm, color: blue, 100 pieces

SKU: 182484

15.594.000 đ

Stock status: Hết hàng

Price includes VAT

Description

Insulated twin wire end ferrule to DIN 46228-4, color series 2, made of Cu-ETP to DIN EN 13600, tin-plated, with polypropylene insulation, suitable for easy processing of two fine-stranded copper conductors of classes 5 and 6 to DIN EN 60228, prevents damage and splicing, temperature-resistant up to 105 °C | nominal cross-section: 2/16 mm² | insulation color: blue | d1: 8.3 mm | d2: 9.6 mm | l1: 30 mm | l2: 14 mm | S1: 0.2 mm | S2: 0.4 mm | weight per 100 pieces: approx. 0.13 kg | UL-listed: / | Packaging unit: 100 pieces | (PU/unit: 100.)

EAN: 4021103824849

Tags / Keywords: 182484
