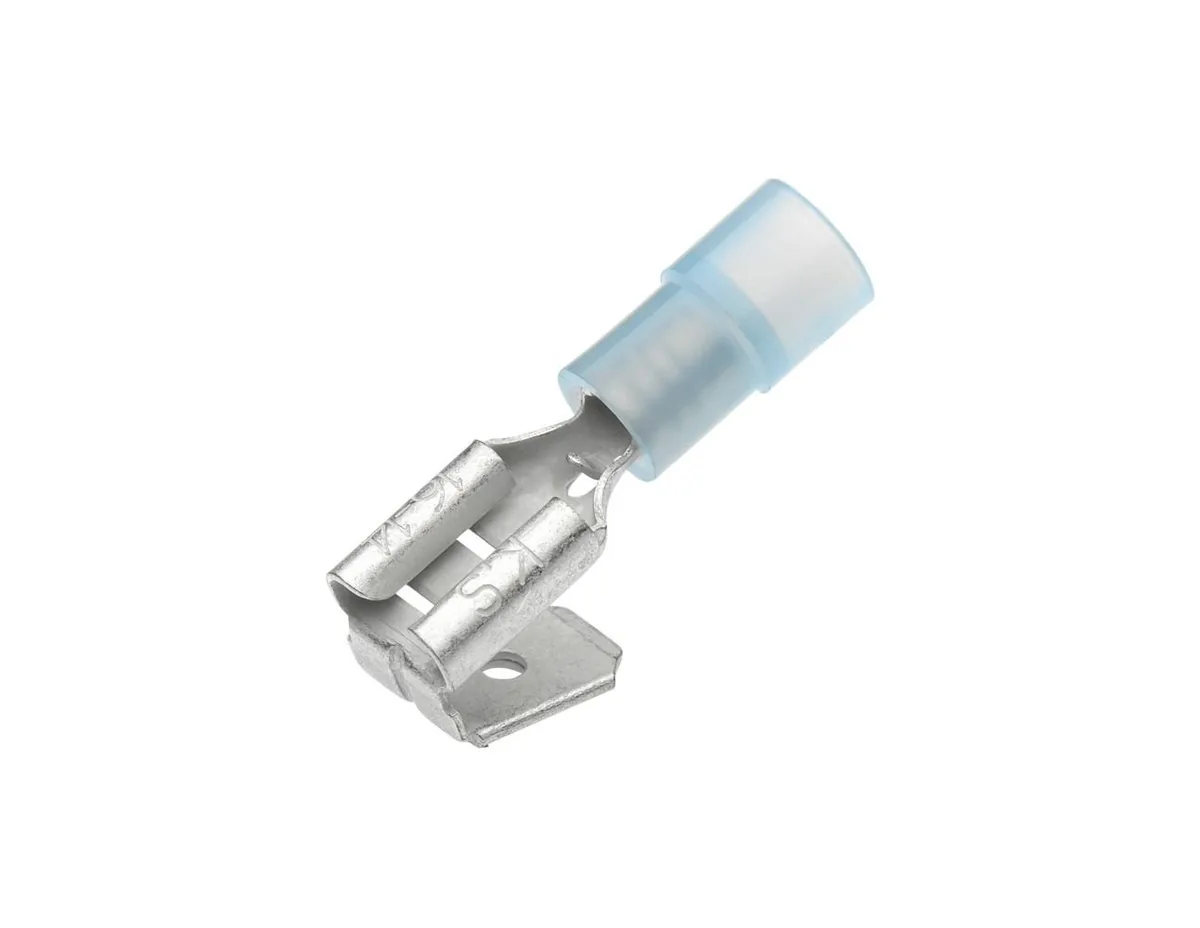

Flat plugs, insulated from CuZn (brass), provide a reliable connection for fine-stranded conductors with a copper inner sleeve. The electroplated tin surface provides corrosion protection and ensures a durable, stable electrical connection. The insulation is made of PA (polyamide, nylon), halogen-free.
The connectors are designed for strain-relieved connections, and Easy Entry allows for quick and easy insertion of the conductor. Temperature resistance: -60 °C to +105 °C, 600 V max. Technical data: Nominal cross-section (mm²): 1.5 – 2.5 | Insulation color: blue | Plug width: 6.3 x 0.8 | D1: 2.3 | A: 11.0 | D2: 4.5 | L3: 8.2 | L2: 8.0 | L: 23.0 | Weight per 100 pieces: approx. 0.15 kg | PU/unit: 100.
EAN: 4021103802823
