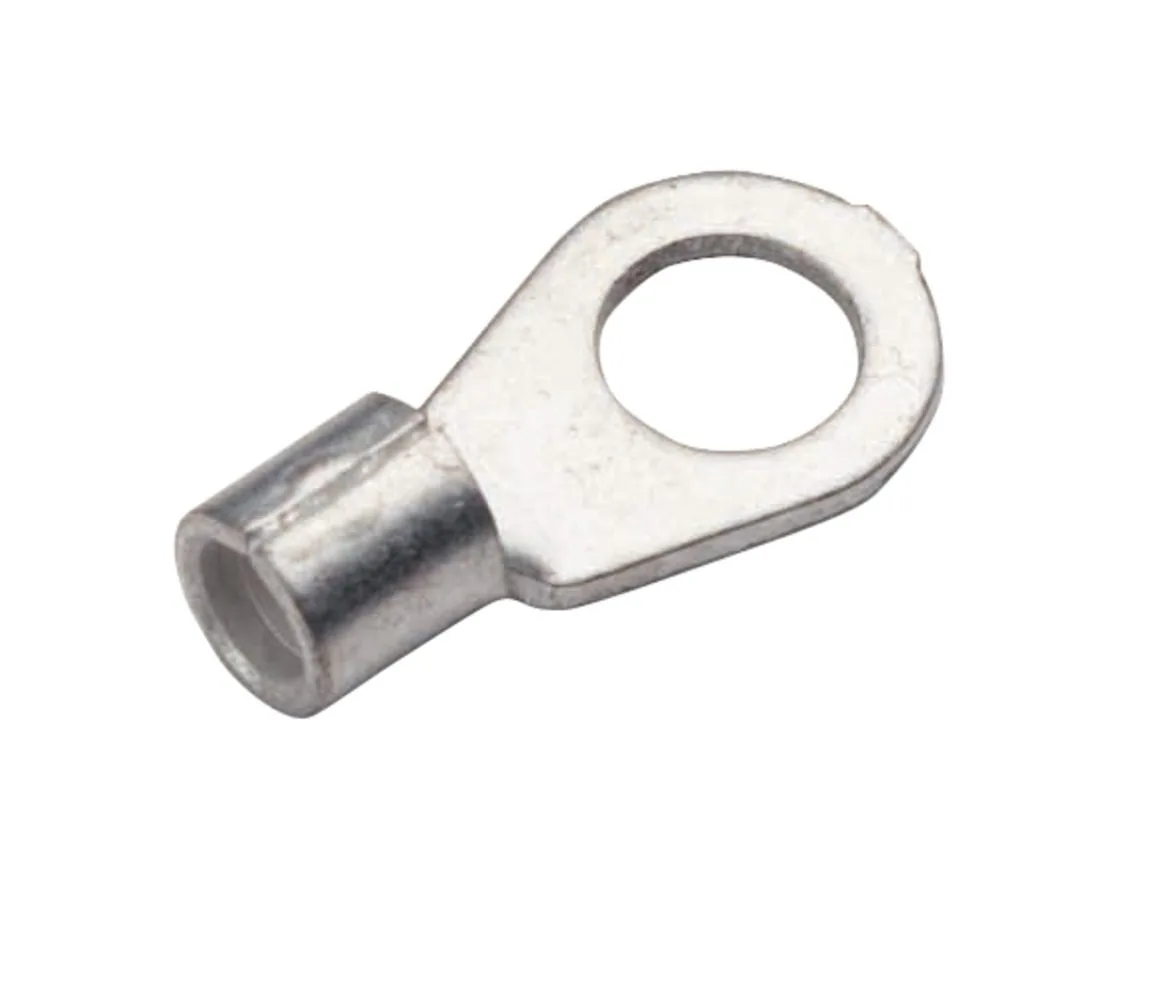

Crimp-on cable lugs, ring shape Cu, conductor cross-section/connection stud 16 mm²/10 mm Ø

Name: Crimp-on cable lugs, ring shape Cu, conductor cross-section/connection stud 16 mm²/10 mm Ø
Brand: CIMCO
SKU: 180442
Price: 2780000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Germany

Crimping cable lugs, ring type Cu, DIN 46234, conductor cross-section/connection bolt-Ø 16 mm²/10 mm, 100 pieces

SKU: 180442

2.780.000 đ

Stock status: Hết hàng

Price includes VAT

Description

Crimp terminals, ring type Cu, DIN 46234. Technical data - Material: Cu-ETP according to DIN EN 13600 - Surface: electro tin plated, other surfaces on request - Especially suitable for fine stranded conductors according to IEC 228 . Cross-section: 16 mm²; bolt-Ø 10 mm; nominal size according to DIN: 10-16; D1: 5.8; D3: 10.5; A: 10; B: 18; L: 24; S: 1.2; weight per 100 pcs. ~kg: 0.5; pack/unit: 100.

EAN: 4021103804421

Optional Accessories

	SKU	Image	Price VNĐ	Product name & short description
	101909		8.234.000	Crimping pliers mandrel crimping, 0.5-16 mm² for non-insulated cable lugs and stainless steel tubular cable lugs Crimping pliers for mandrel crimping, cross-section 0.5–16 mm² for uninsulated cable lugs and stainless steel tubular cable lugs
