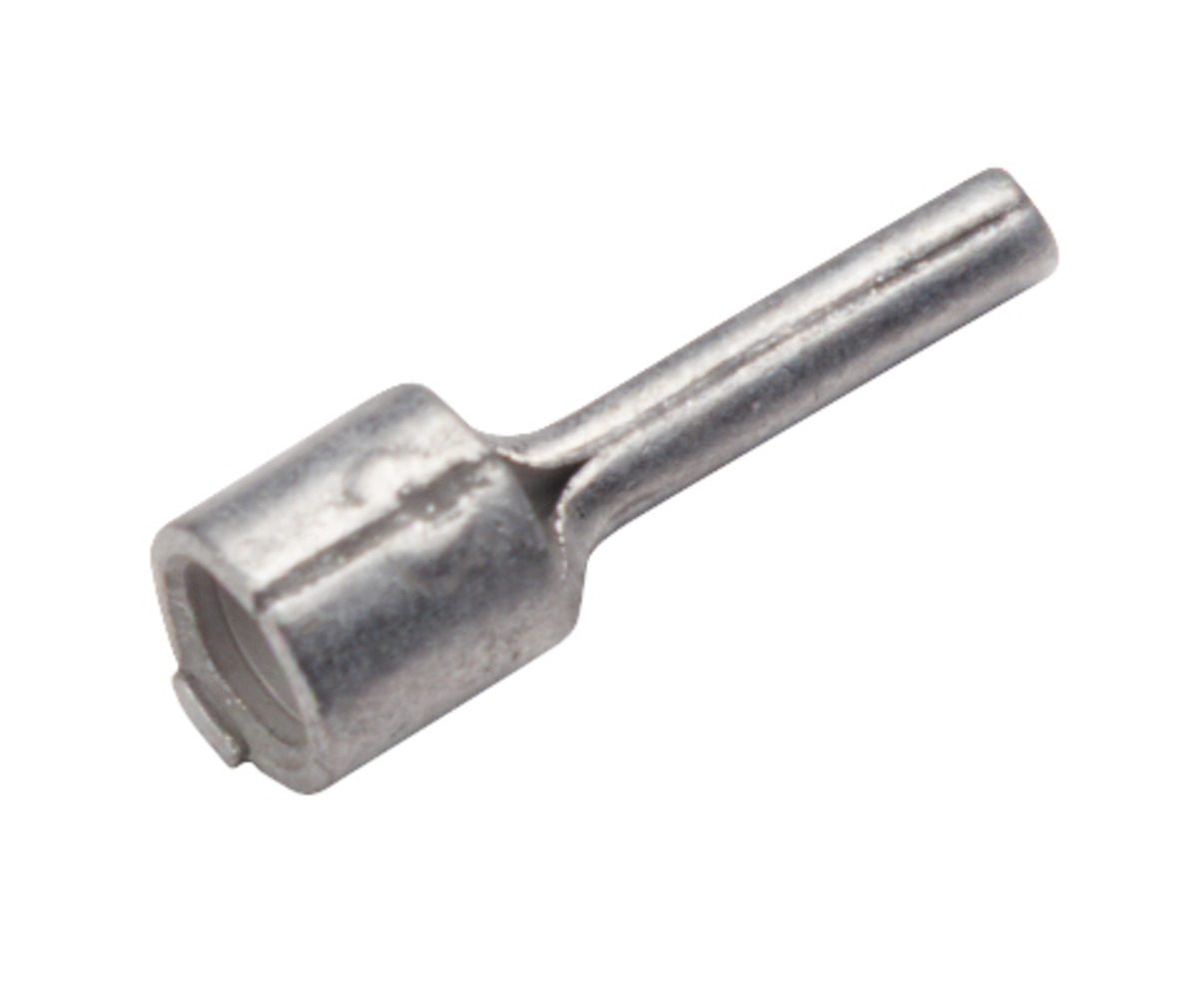

Home Crimp cable lug in pin form Cu, standard version, conductor cross-section/pin 1.5 - 2.5 mm²/2.3 mm Ø

Crimp cable lug in pin form Cu, standard version, conductor cross-section/pin 1.5 - 2.5 mm²/2.3 mm Ø

Name: Crimp cable lug in pin form Cu, standard version, conductor cross-section/pin 1.5 - 2.5 mm²/2.3 mm Ø
Brand: CIMCO
SKU: 180592
Price: 802000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Germany

Crimp cable lug in pin form CU, DIN 46230 pin cable lug,conductor cross section/ pin-Ø 1,5 - 2,5 mm²/2,3 mm, 100 pieces

SKU: 180592

802.000 đ

Stock status: Hết hàng

Price includes VAT

Description

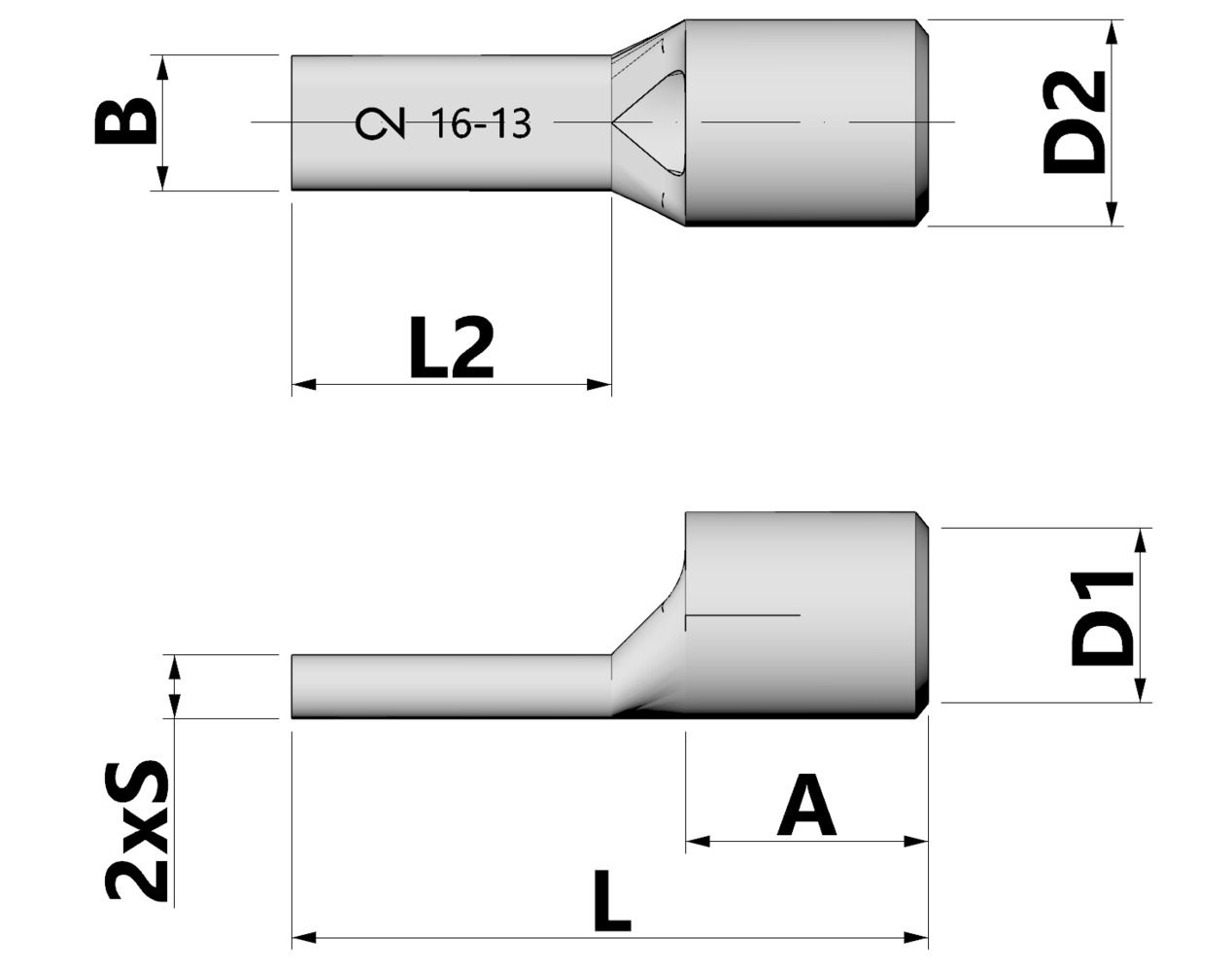

Crimp terminals, pin form Cu, 0.5-6 mm² according to DIN. Technical data; material: Cu-ETP according to DIN EN 13600; surface: electro tin plated ; sleeve seam hard soldered; for strain relieved connection. Cross-section: 1.5-2.5; Pin-Ø: 2.3 mm; L1: 17; L2: 10; D1: 2.3; A: 5; B: 1.9; S: 0.8; Weight per 100pcs:~kg: 0.07; Packs per unit: 100

EAN: 4021103805923
