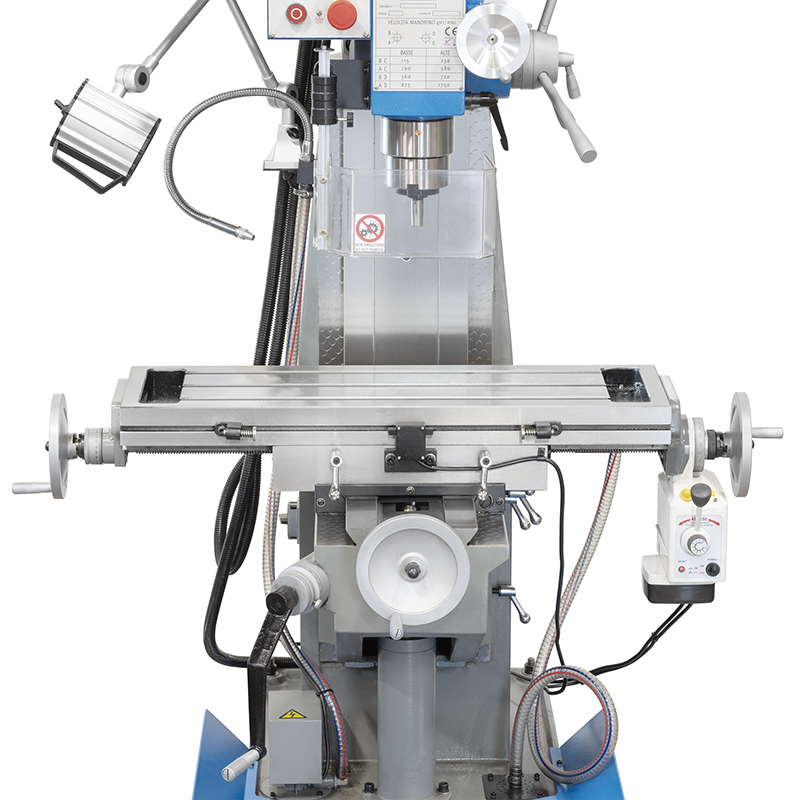

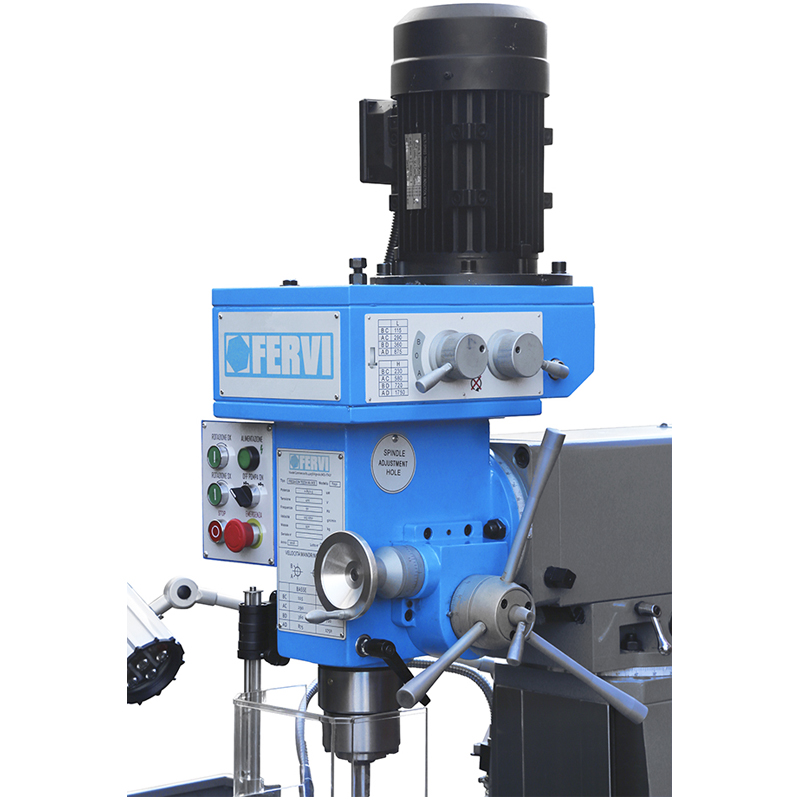

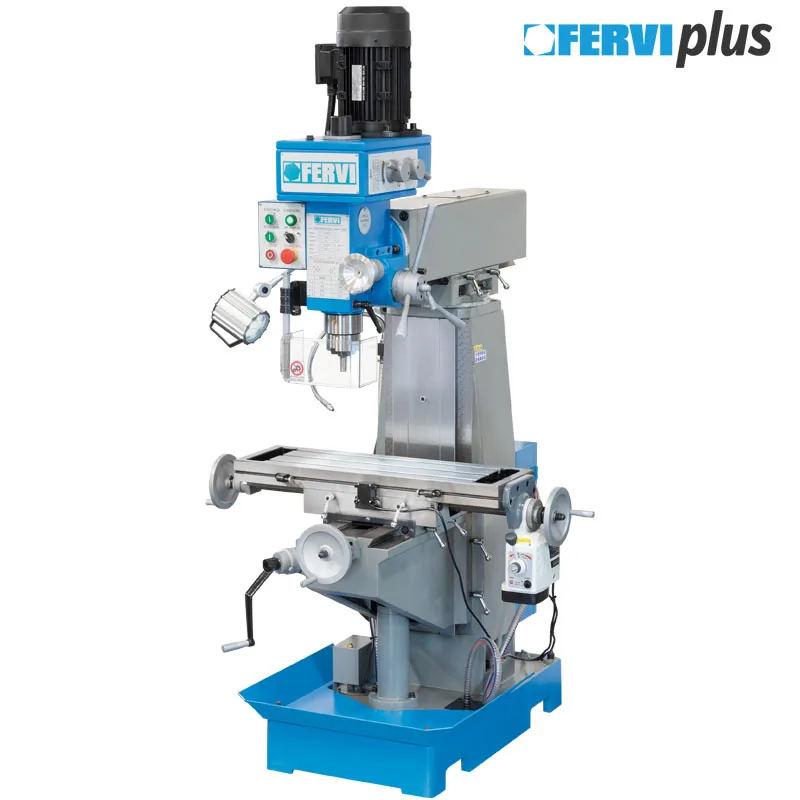

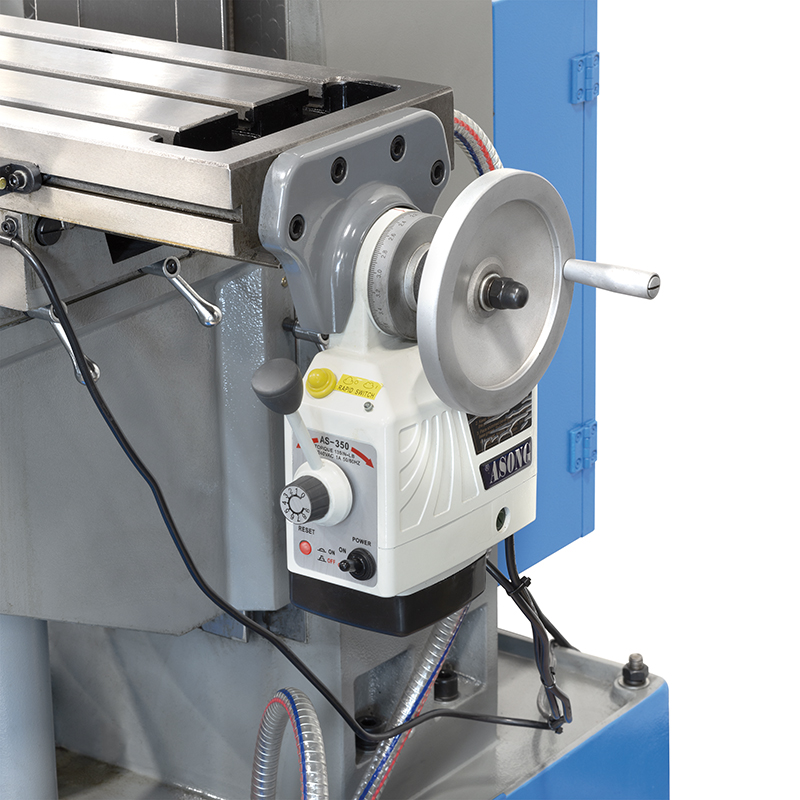

MILLING MACHINE

Name: MILLING MACHINE
Brand: FERVI
SKU: F050B
Price: 353989000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Italy

VERTICAL MILLING, ISO 40 - DIN 2080, MOTORIZED VARIABLE ONE AXIS CROSS TABLE.

SKU: F050B

353.989.000 đ

Stock status: Hết hàng

Price includes VAT

Download PDF catalog

Description

VERTICAL MILLING, ISO 40 - DIN 2080, MOTORIZED VARIABLE ONE AXIS CROSS TABLE.

Specification	Value
Face milling cutter max	100 mm
End milling cutter max	32 mm
Max drilling capacity on cast iron with pre-drilling hole	50 mm
Max drilling capacity on steel with pre-drilling hole(s235jr)	30 mm
Spindle nose Camlock	ISO 40 - DIN 2080
Quill	90 mm
Spindle travel	120 mm
Vertical head rotation	± 45°
Head body rotation	± 180°
Variable spindle speed	(8) 115 ÷ 1750 rpm
Motor	400 V 50 Hz 0,85 - 1,5 kW
Table movement motor	110 V 50 Hz 300 W
Base dimensions	510 x 900 mm
Cooling pump	400 V 50 Hz 40 W
Distance between spindle nose and table	45 - 395 mm
Distance spindle axis - column surface	215 - 450 mm
Table dimensions	800 x 240 mm
Longitudinal axis	380 mm
Cross axis	220 mm
Slot	14 mm
Maximum capacity	400 kg
Dimensions	1680 x 1500 x 2100h mm
Net weight	800 kg
Gross weight	800,00 kg
EAN Code	8012667406349
Packaging dimensions	1340x1130x h 2240 mm
