Home Insulated crimp terminals, ring shape Cu, cross-section 4 - 6 mm², stud 8 mm Ø

Insulated crimp terminals, ring shape Cu, cross-section 4 - 6 mm², stud 8 mm Ø

Name: Insulated crimp terminals, ring shape Cu, cross-section 4 - 6 mm², stud 8 mm Ø
Brand: CIMCO
SKU: 180056
Price: 1695000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Germany

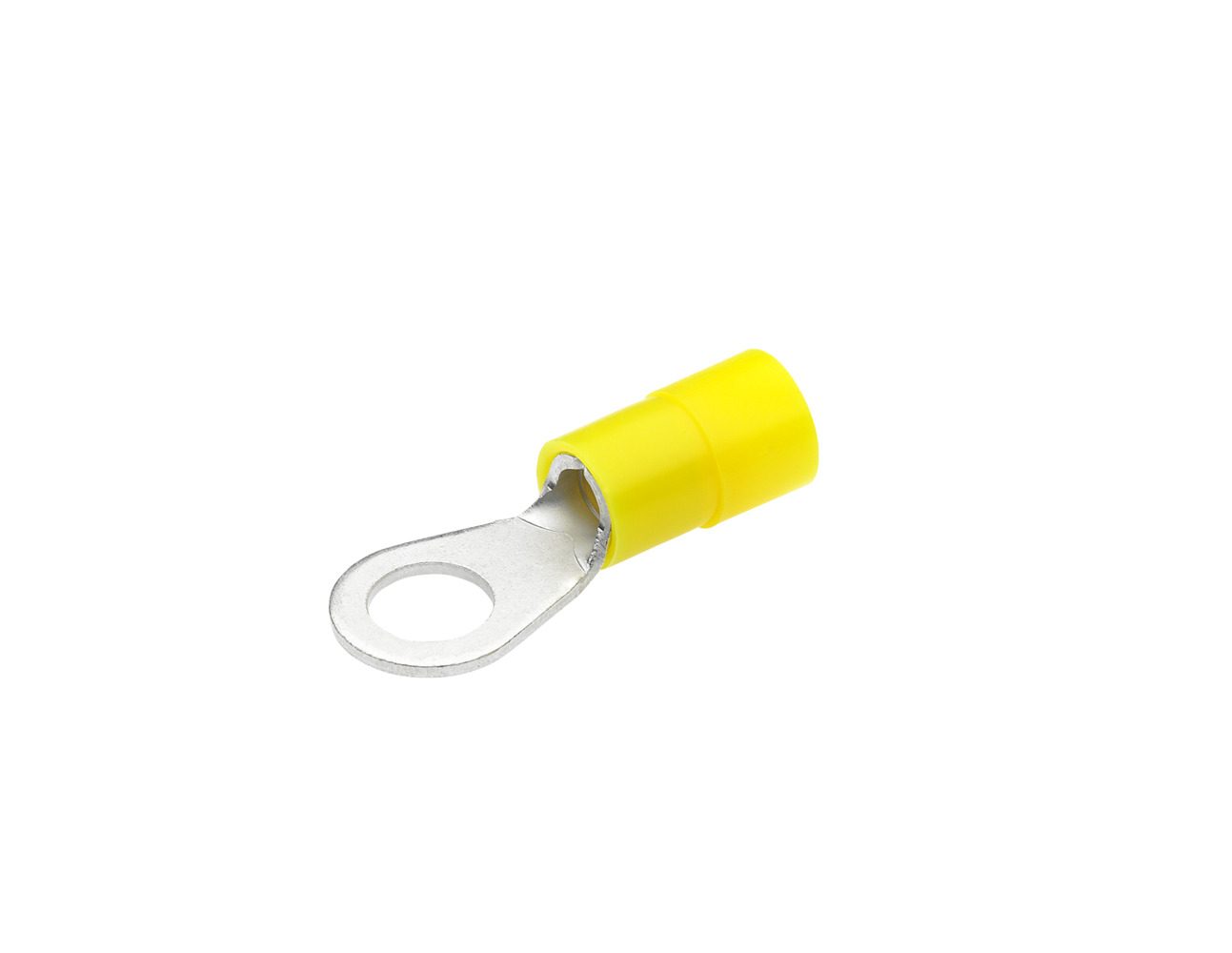

Insulated crimp terminals, ring type Cu, insulated, DIN 46237 cross section 4 - 6 mm² , bolt Ø 8 mm, yellow, 100 pieces

SKU: 180056

1.695.000 đ

Stock status: Hết hàng

Price includes VAT

Description

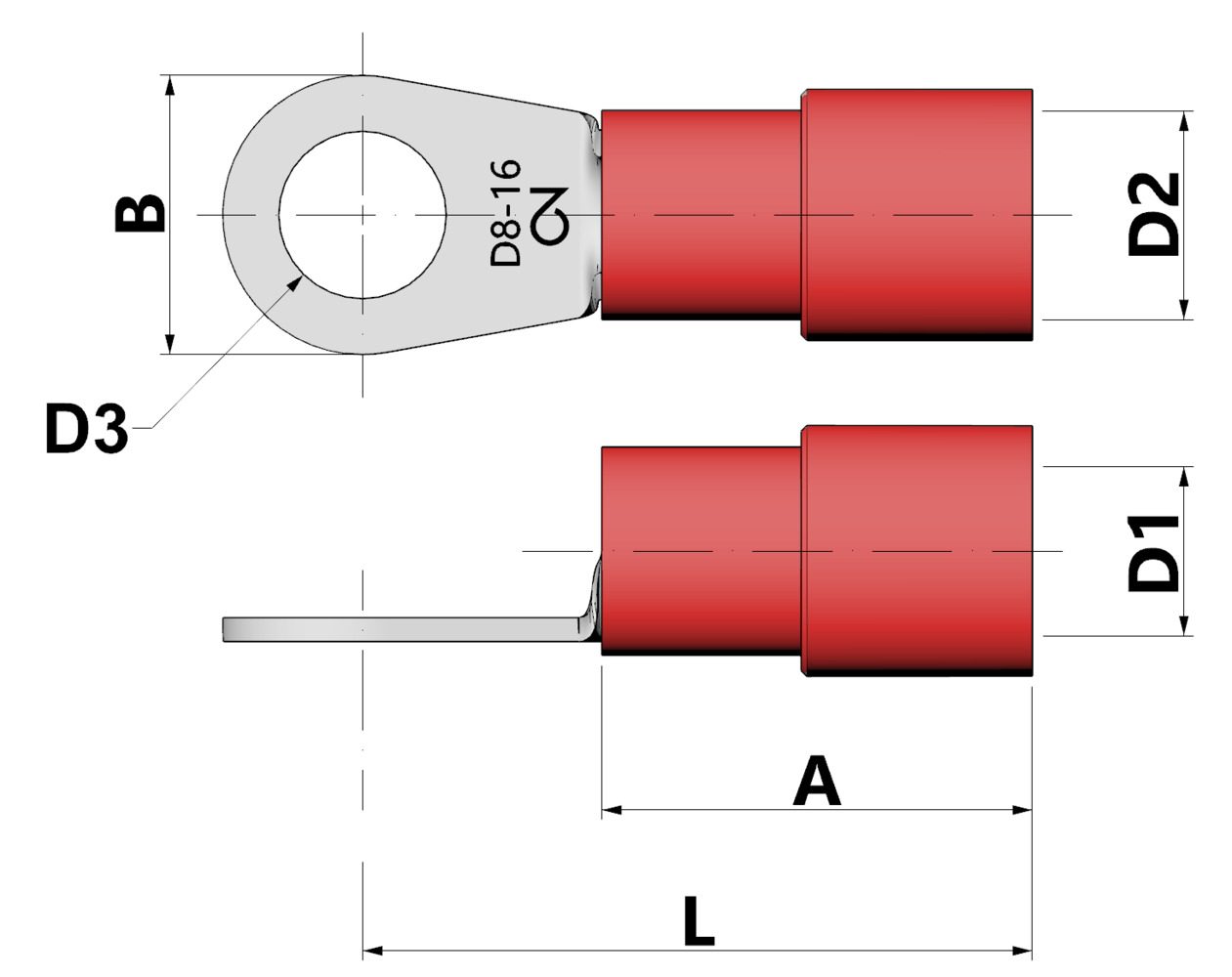

Insulated crimp terminals, ring type Cu, insulated, DIN 46237 from 0.5 - 6 mm². Technical data - Material: Cu-ETP according to DIN EN 13600 - Surface: electro-tinned - For strain-relieved connections - Insulation PA (polyamide, nylon), halogen-free - Temperature resistance -60°C to +105°C - Easy Entry enables simple and fast insertion of the conductor, 600 V max. Design: cross section: 4-6 mm², studs with a Ø of 8, nominal size according to DIN: 8-6 mm, insulation color: yellow, D1: 3.6, D2: 6.8, D3: 4.3, A1: 13, B 8.4, L 25 weight per 100 pcs.: 0.24 kg, according to DIN: x, UL listed: x, PU/pc.: 100.

EAN: 4021103800560
