Insulated ferrules with a nominal cross-section of 16 mm² are designed for short-circuit-proof cables up to 3 kV and are made of high-quality copper DHP. The galvanically tin-plated surface with a layer thickness of at least 3 µm ensures optimum corrosion protection. The reinforced insulation sheath is temperature-resistant up to 105 °C. An extra-large plastic collar enables wider cable insulation to be accommodated.

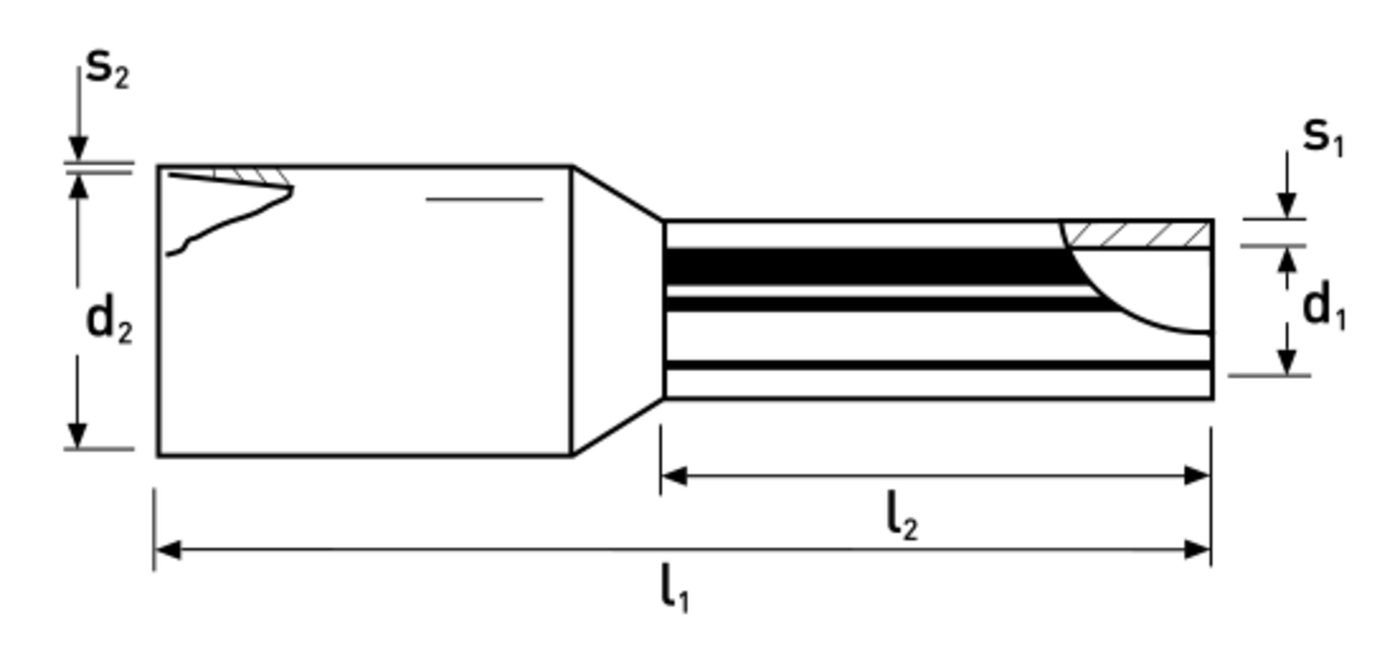

The sleeves are suitable for class 5 and 6 conductors in accordance with IEC 60228. The nominal cross-section is 16 mm², the insulation color is blue. Technical data: Nominal cross-section ( mm²): 16 | Insulation color: blue | d1: 2.2 | d2: 3.6 | l1: 16 | l2: 12 | S1: 0.15 | S2: 0.3 | Weight per 100 pieces: approx. 0.099 kg | PU/unit: 100.
