Home Pin-type crimp terminals Cu, cross-section 0.1 - 0.4 mm², pin length 9 mm

Pin-type crimp terminals Cu, cross-section 0.1 - 0.4 mm², pin length 9 mm

Name: Pin-type crimp terminals Cu, cross-section 0.1 - 0.4 mm², pin length 9 mm
Brand: CIMCO
SKU: 180220
Price: 1232000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Germany

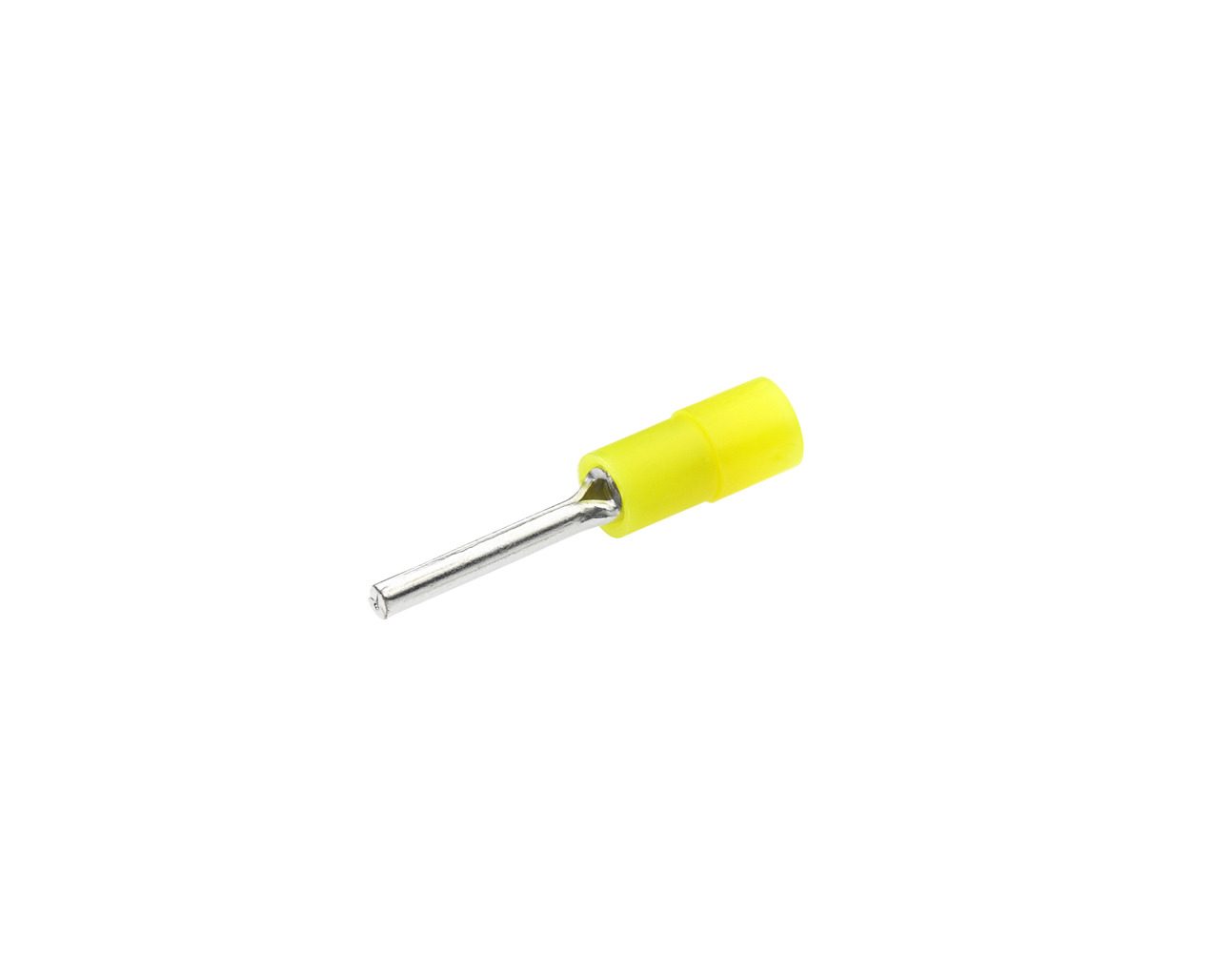

Crimp terminals in pin form Cu, insulated DIN 46231 cross section 0,1 - 0,4 mm², pin length 9 mm, yellow, 100 pieces

SKU: 180220

1.232.000 đ

Stock status: Hết hàng

Price includes VAT

Description

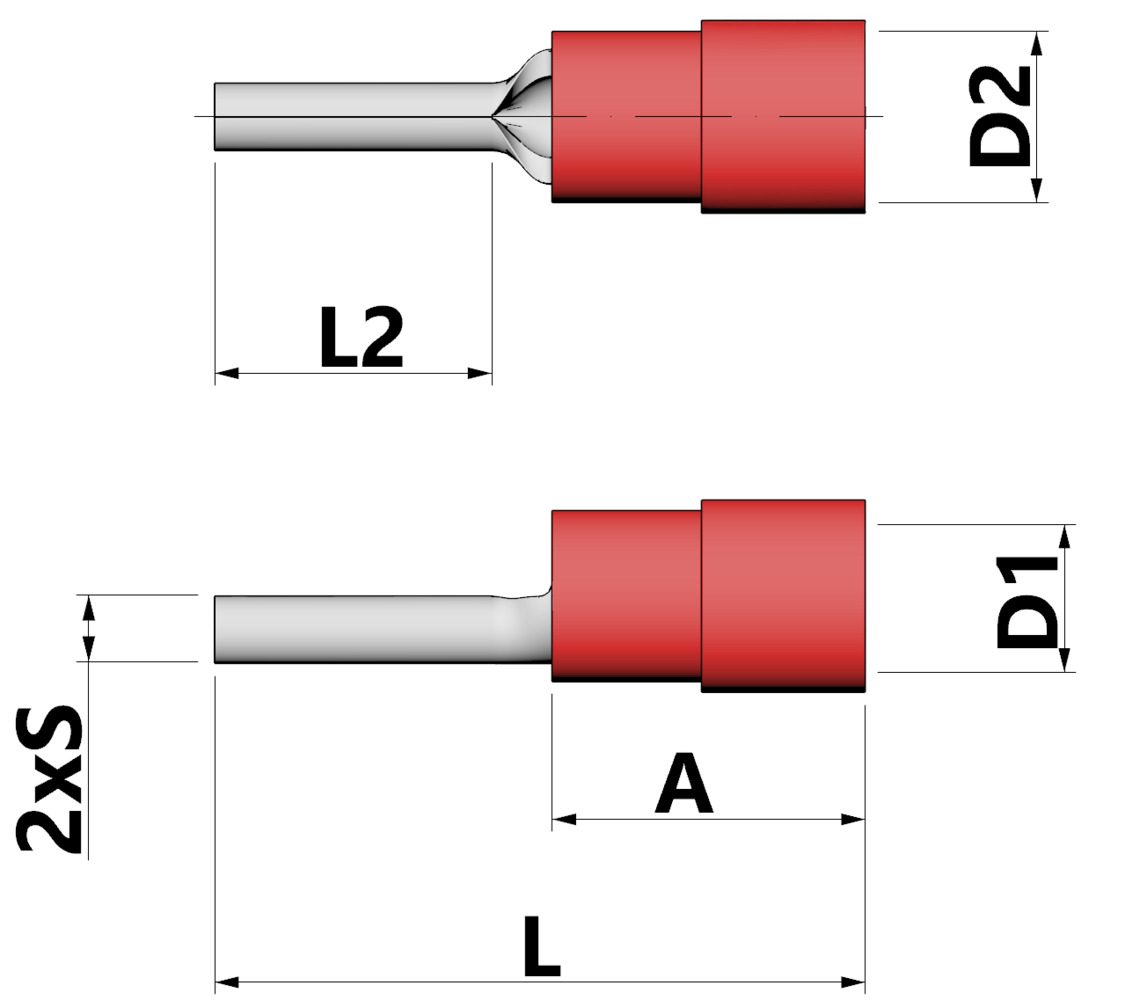

Crimp cable lugs, pin-type CU, insulated, DIN 46231, from 0.5 to 6 mm². Technical data: Material: Cu-ETP per DIN EN 13600, surface: electro-tin-plated, other surfaces available upon request, for strain-relieved connections, insulation PA (polyamide, nylon), halogen-free, temperature resistance -60°C to +105°C, 600 V max., Easy Entry allows for quick and easy insertion of the conductor. Cross-section: 0.1–0.4 mm², pin length: 9 mm, insulation color per DIN: yellow, L1: 20, L2: 9, D1: 1, B: 1, weight per 100 pcs. ~kg: 0.05, per DIN: –, UL listed: –, pack size/piece: 100.

EAN: 4021103802205
