Home Insulated crimp terminals, ring shape Cu, cross-section 1.5 - 2.5 mm², pin 5 mm Ø

Insulated crimp terminals, ring shape Cu, cross-section 1.5 - 2.5 mm², pin 5 mm Ø

Name: Insulated crimp terminals, ring shape Cu, cross-section 1.5 - 2.5 mm², pin 5 mm Ø
Brand: CIMCO
SKU: 180036
Price: 1092000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Germany

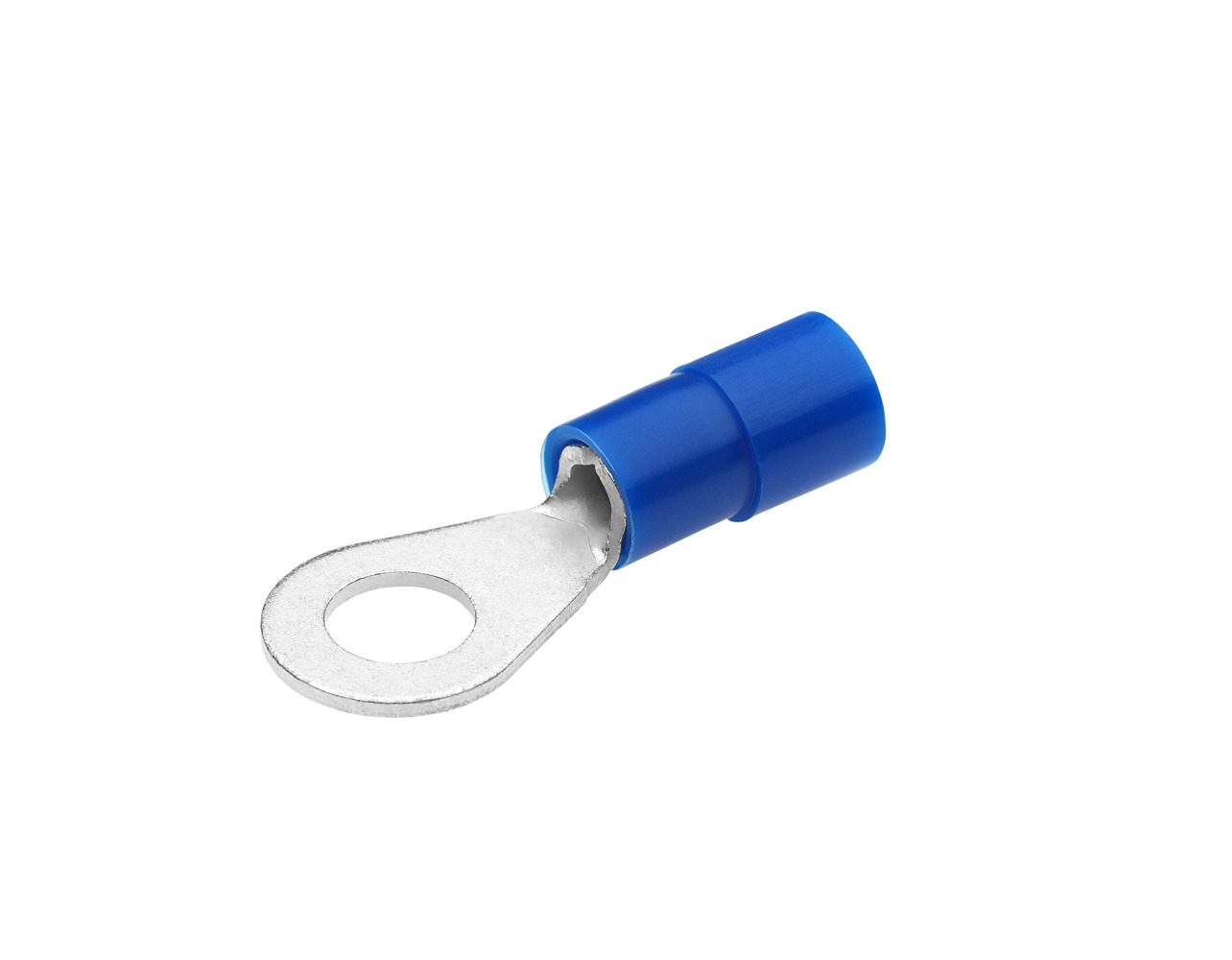

Insulated crimp terminals, ring type Cu, insulated, DIN 46237 cross section 1.5 - 2.5 mm² , bolt Ø 5 mm, blue, 100 pieces

SKU: 180036

1.092.000 đ

Stock status: Hết hàng

Price includes VAT

Description

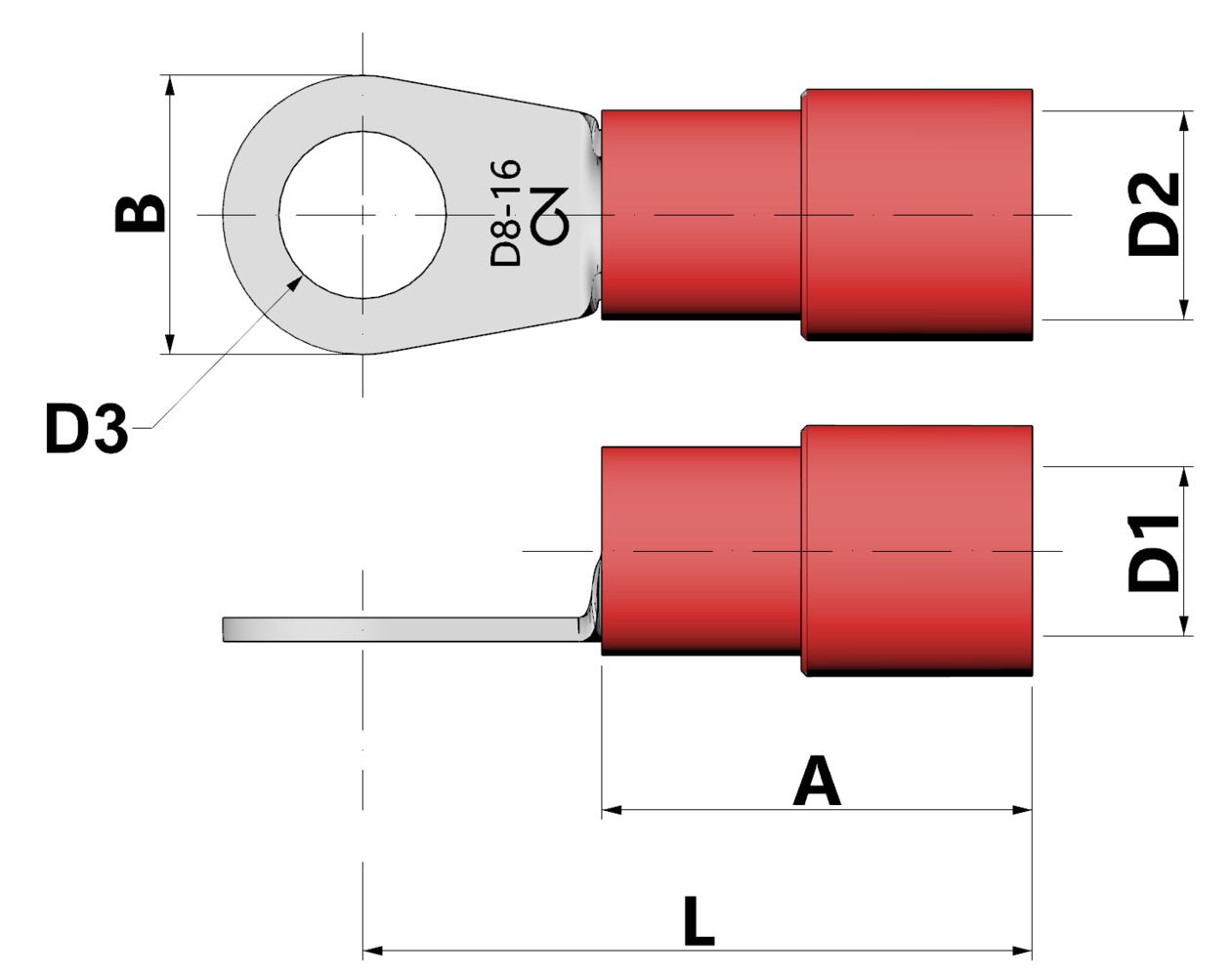

Insulated crimp terminals, ring type Cu, insulated, DIN 46237 from 0.5 - 6 mm². Technical data - Material: Cu-ETP according to DIN EN 13600 - Surface: electro-tinned - For strain-relieved connections - Insulation PA (polyamide, nylon), halogen-free - Temperature resistance -60°C to +105°C - Easy Entry enables simple and fast insertion of the conductor, 600 V max. Design: cross section: 1.5-2.5 mm², studs with a Ø of 5 mm, nominal size according to DIN: 5-2.5, insulation color: blue, D1: 2.3, D2: 4.5, D3: 5.3, A1: 11.5, B 10, L 20, weight per 100 pcs.: 0.11 kg, according to DIN: x, UL listed: x, PU/pc.: 100.

EAN: 4021103800362

Tags / Keywords: 180036
