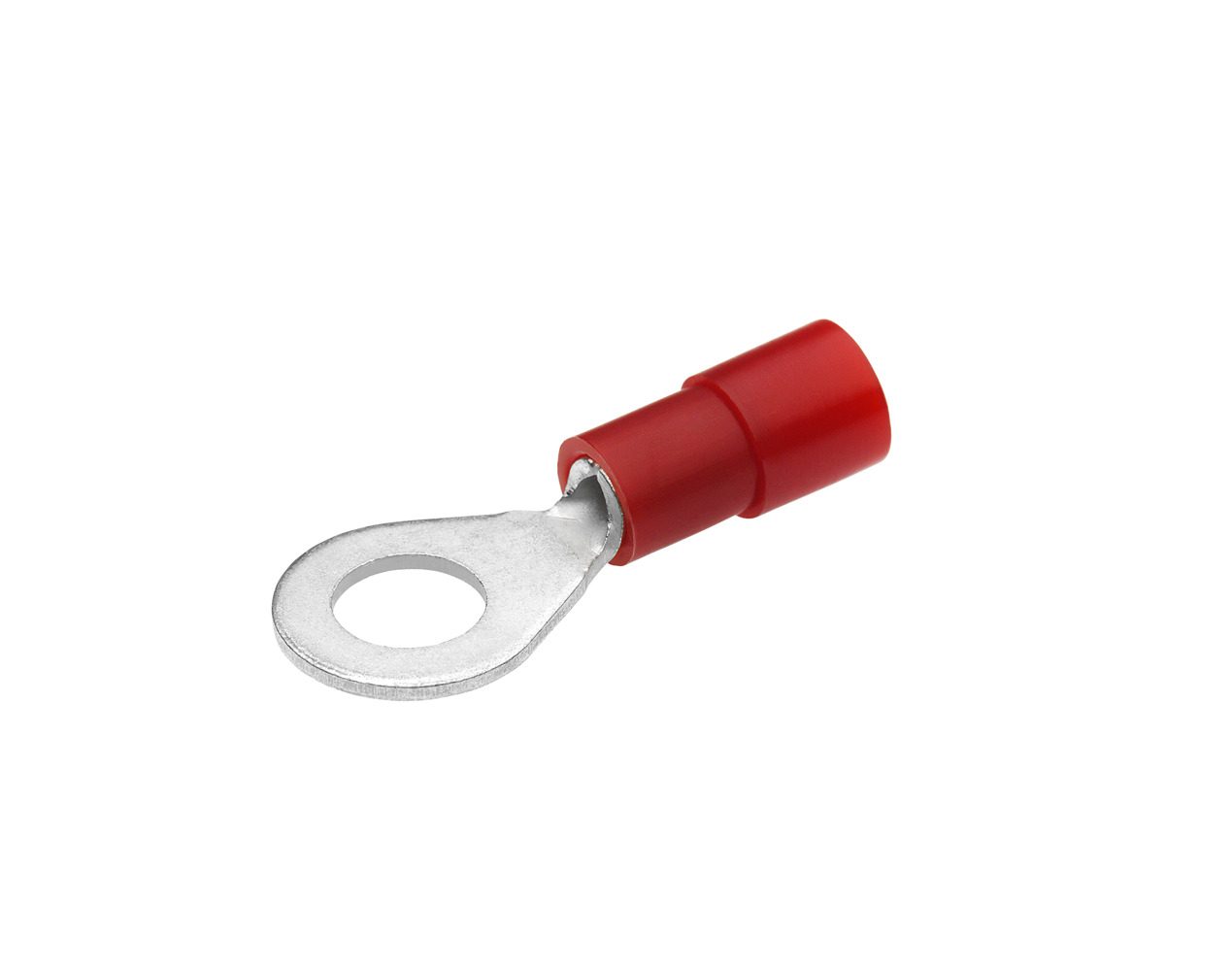

Home Insulated crimp terminals, ring shape Cu, cross-section 0.5 - 1 mm², pin 5 mm Ø

Insulated crimp terminals, ring shape Cu, cross-section 0.5 - 1 mm², pin 5 mm Ø

Name: Insulated crimp terminals, ring shape Cu, cross-section 0.5 - 1 mm², pin 5 mm Ø
Brand: CIMCO
SKU: 180026
Price: 1092000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Germany

Insulated crimp terminals, ring shape Cu, insulated, DIN 46237 cross-section 0.5 - 1 mm² , bolt Ø 5 mm, red, 100 pieces

SKU: 180026

1.092.000 đ

Stock status: Hết hàng

Price includes VAT

Description

Insulated crimp terminals, ring type Cu, insulated, DIN 46237 from 0.5

6 mm². Technical data
Material: Cu-ETP according to DIN EN 13600
Surface: electro-tinned
For strain-relieved connections
Insulation PA (polyamide, nylon), halogen-free
Temperature resistance -60°C to +105°C
Easy Entry enables simple and fast insertion of the conductor, 600 V max. Design: cross-section: 0.5

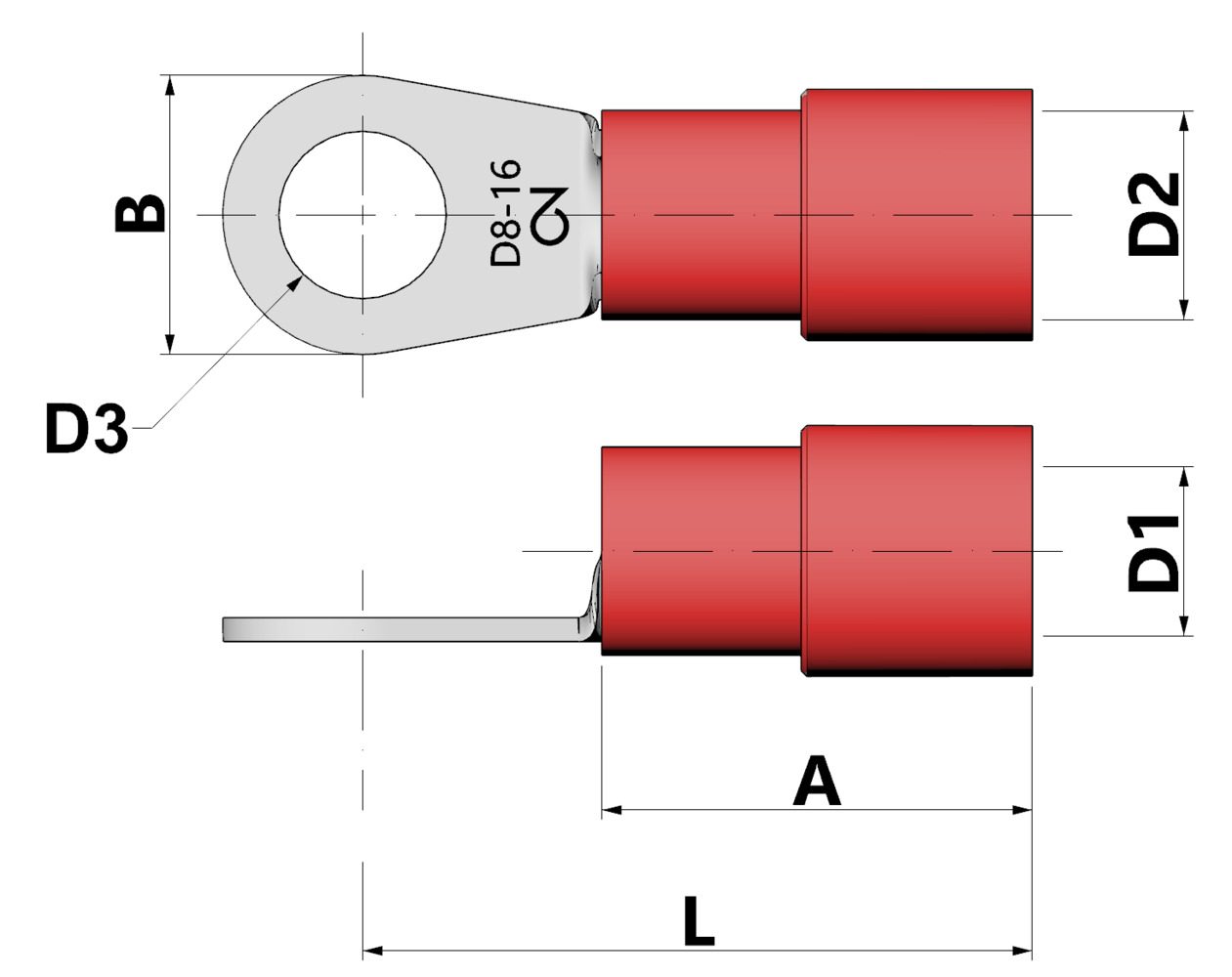

1 mm², studs with a Ø of 5 mm, nominal size according to DIN: 5-1, insulation color: red, D1: 1.6, D2: 4.1, D3: 5.3, A1: 11.5, B 10, L 18, weight per 100 pcs.: 0.1 kg, according to DIN: -, UL listed: x, pack of 100

EAN: 4021103800263

Tags / Keywords: 180026
