Home Insulated crimp terminals, fork-shaped Cu, cross-section 4 - 6 mm², pin 4 mm Ø

Insulated crimp terminals, fork-shaped Cu, cross-section 4 - 6 mm², pin 4 mm Ø

Name: Insulated crimp terminals, fork-shaped Cu, cross-section 4 - 6 mm², pin 4 mm Ø
Brand: CIMCO
SKU: 180160
Price: 1604000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Germany

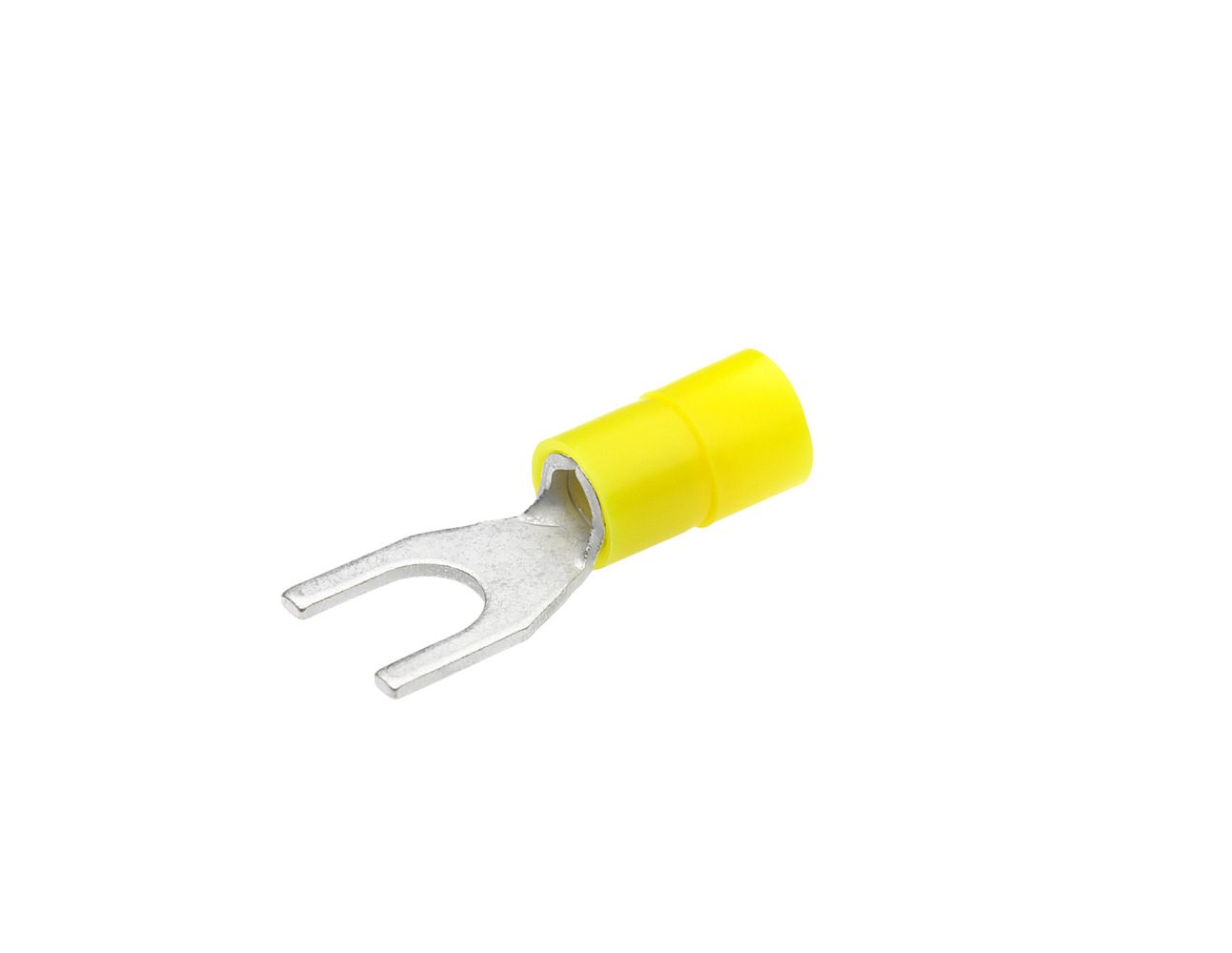

Insulated crimp terminals, fork form Cu, DIN 46237 cross section 4 - 6 mm², bolt Ø 4 mm, yellow, 100 pieces

SKU: 180160

1.604.000 đ

Stock status: Hết hàng

Price includes VAT

Description

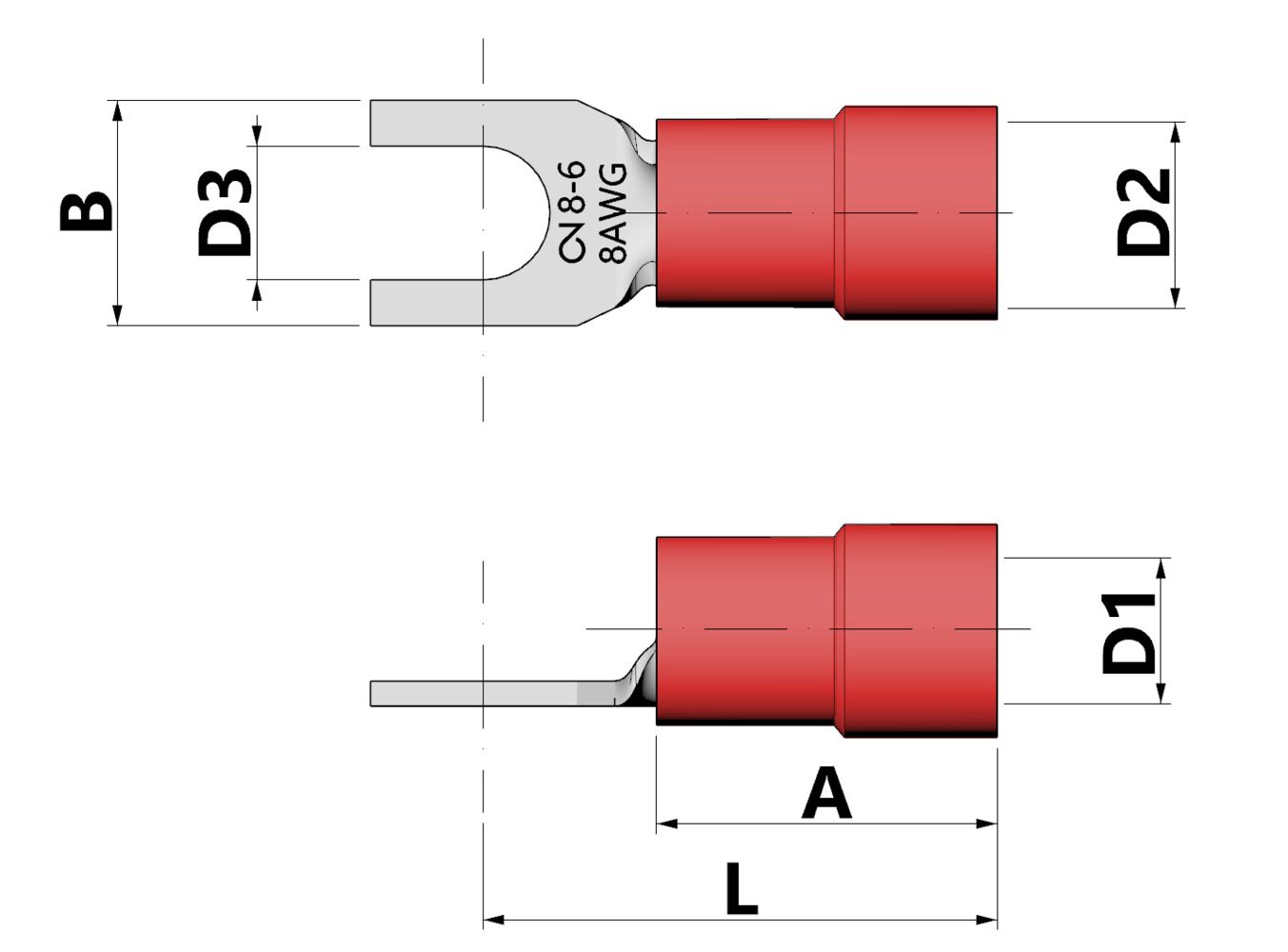

Insulated fork cable lugs made of CU-ETP provide a reliable connection for fine-stranded CU conductors of classes 5 and 6 according to DIN EN 60228. The electroplated tin surface protects against corrosion, while the PA insulation ensures safe electrical connections. Manufactured in accordance with DIN 46237, the fork cable lugs are temperature-resistant from -60 °C to +105 °C, 600 V max. Technical data: Nominal cross-section (mm²): 4 – 6 | Screw connection: M4 | Insulation color: yellow | D1: 3.6 | A: 13.0 | B: 8.0 | D2: 6.4 | D3: 4.3 | L: 21.0 | UL tested: yes | Weight per 100 pieces: approx. 0.17 kg | PU/unit: 100.

EAN: 4021103801604
