Crimp-on cable lugs, ring shape Cu, conductor cross-section/connection stud 25 mm²/10 mm Ø

Name: Crimp-on cable lugs, ring shape Cu, conductor cross-section/connection stud 25 mm²/10 mm Ø
Brand: CIMCO
SKU: 180452
Price: 4212000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Germany

Crimping cable lugs, ring type Cu, DIN 46234, conductor cross-section/connection bolt-Ø 25 mm²/10 mm, 100 pieces

SKU: 180452

4.212.000 đ

Stock status: Hết hàng

Price includes VAT

Description

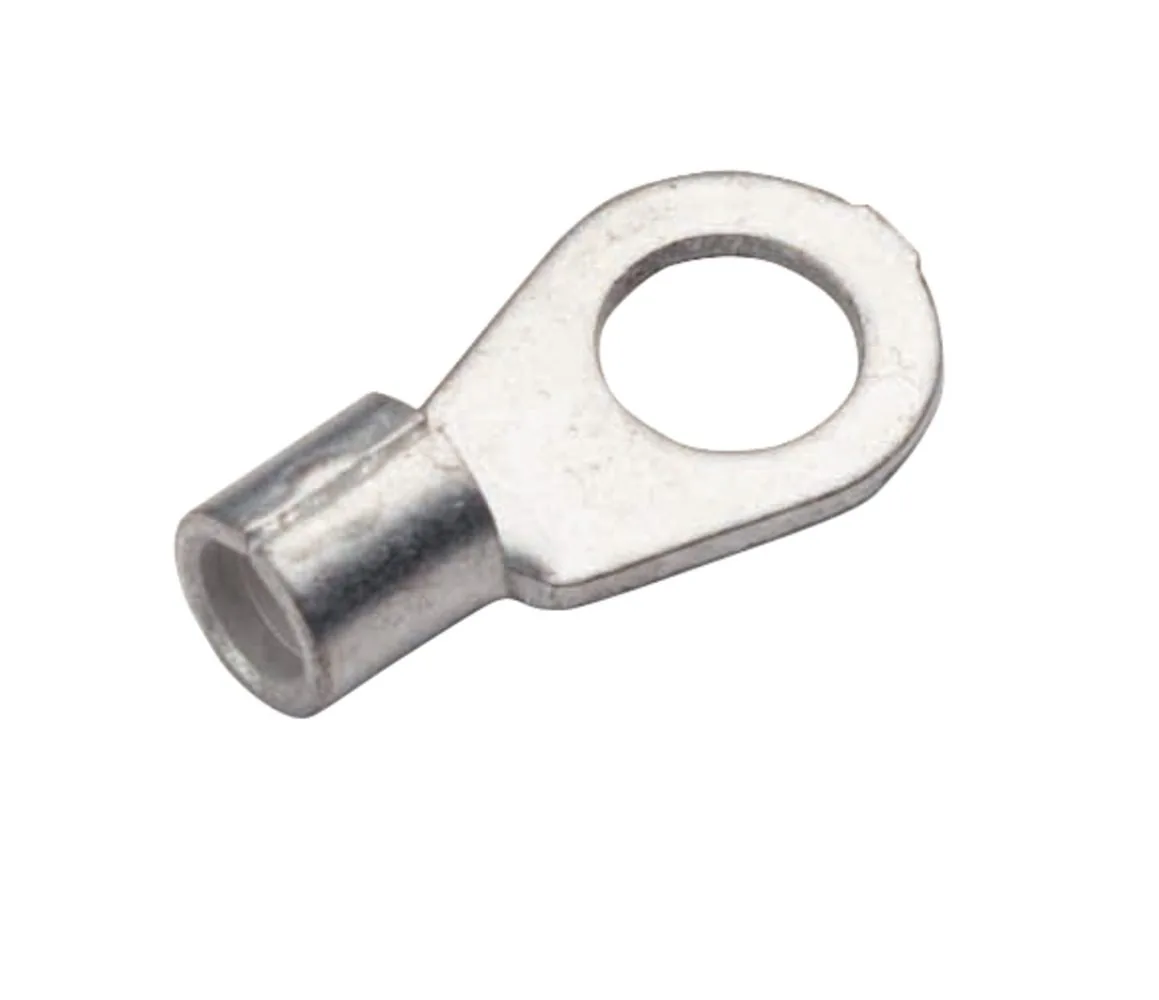

Crimp terminals, ring type Cu, DIN 46234. Technical data - Material: Cu-ETP according to DIN EN 13600 - Surface: electro tin plated, other surfaces on request - Especially suitable for fine stranded conductors according to IEC 228 . Cross-section: 25 mm²; bolt-Ø 10 mm; nominal size according to DIN: 10-25; D1: 7.5; D3: 10.5; A: 11; B: 18; L: 26; S: 1.5; weight per 100 pcs ~kg: 0.8; packing unit: 100.

EAN: 4021103804520
