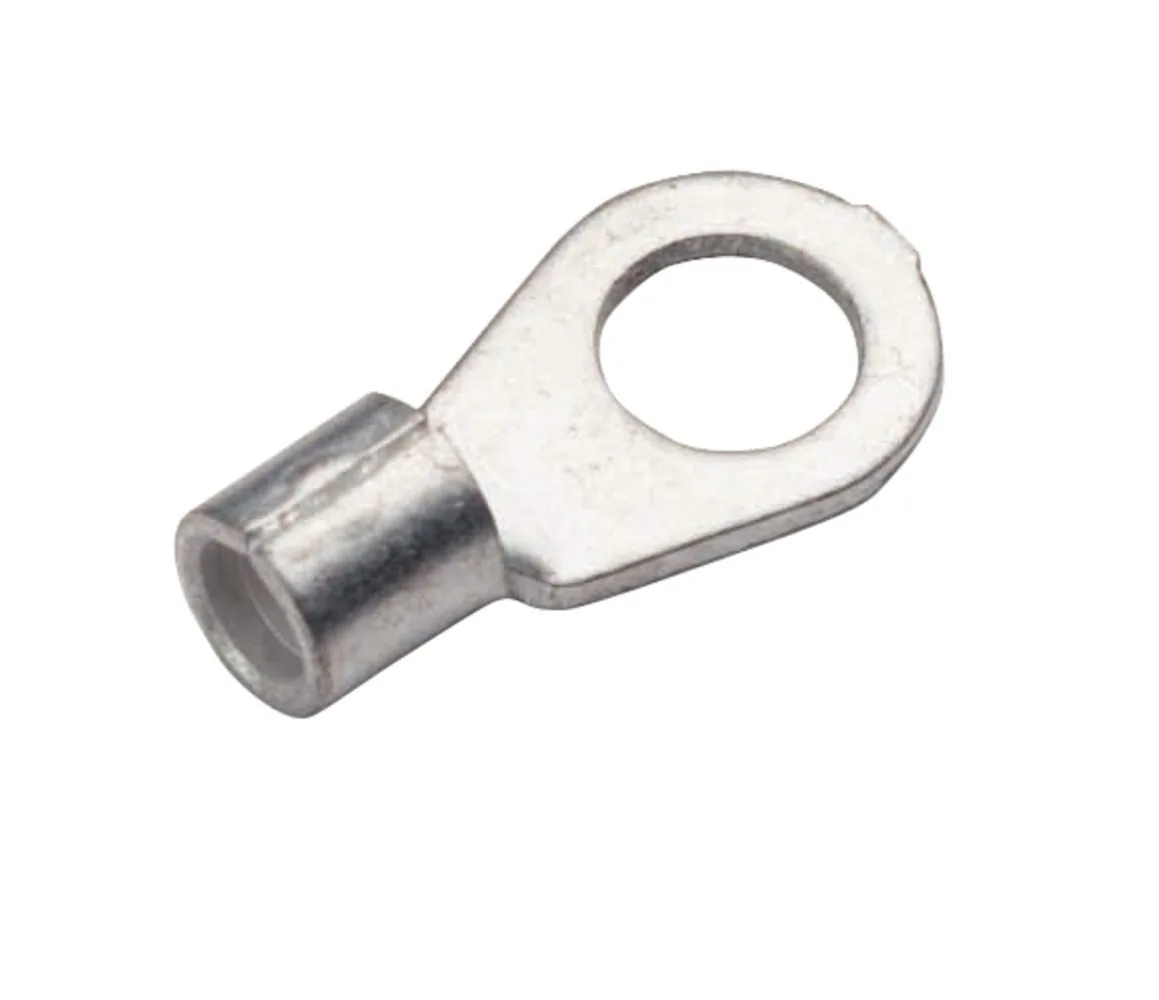

Crimp-on cable lugs, ring shape Cu, conductor cross-section/connection stud 25 mm²/6 mm Ø

Name: Crimp-on cable lugs, ring shape Cu, conductor cross-section/connection stud 25 mm²/6 mm Ø
Brand: CIMCO
SKU: 180448
Price: 3489000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Germany

Crimping cable lugs, ring type Cu, DIN 46234, conductor cross-section/connection bolt-Ø 25 mm²/6 mm, 100 pieces

SKU: 180448

3.489.000 đ

Stock status: Hết hàng

Price includes VAT

Description

Crimp terminals, ring type Cu, DIN 46234. Technical data - Material: Cu-ETP according to DIN EN 13600 - Surface: electro tin plated, other surfaces on request - Especially suitable for fine stranded conductors according to IEC 228 . Cross-section: 25 mm²; bolt-Ø 6 mm; nominal size according to DIN: 6-25; D1: 7.5; D3: 6.5; A: 11; B: 12; L: 25; S: 1.5; weight per 100 pcs. ~kg: 0.69; packing unit: 100.

EAN: 4021103804483
