Home Crimp-on cable lugs, ring shape Cu, conductor cross-section/connection stud 16 mm²/12 mm Ø

Crimp-on cable lugs, ring shape Cu, conductor cross-section/connection stud 16 mm²/12 mm Ø

Name: Crimp-on cable lugs, ring shape Cu, conductor cross-section/connection stud 16 mm²/12 mm Ø
Brand: CIMCO
SKU: 180444
Price: 3437000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Germany

Crimping cable lugs, ring type Cu, DIN 46234, conductor cross-section/connection bolt-Ø 16 mm²/12 mm, 100 pieces

SKU: 180444

3.437.000 đ

Stock status: Hết hàng

Price includes VAT

Description

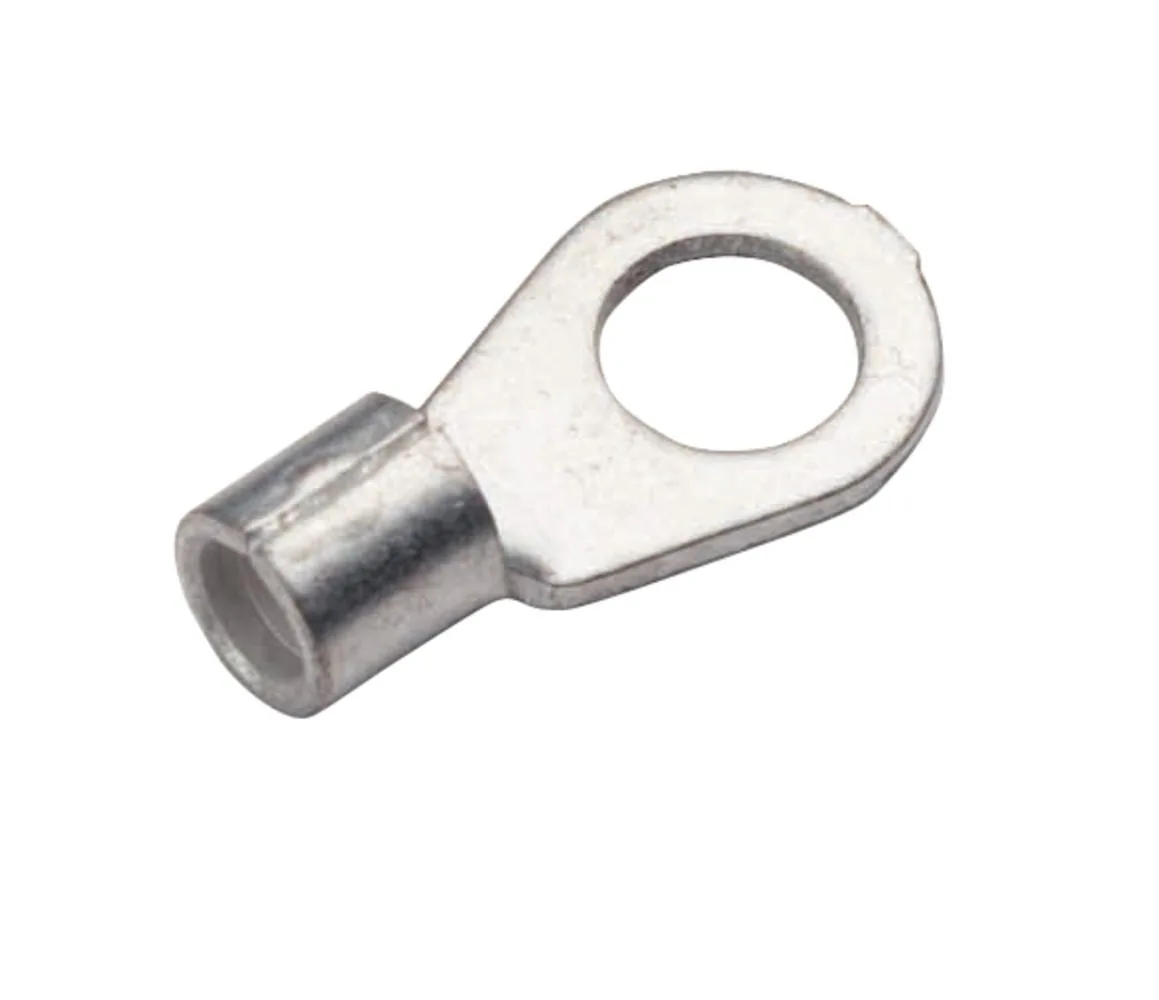

Crimp terminals, ring type Cu, DIN 46234. Technical data - Material: Cu-ETP according to DIN EN 13600 - Surface: electro tin plated, other surfaces on request - Especially suitable for fine stranded conductors according to IEC 228 . Cross-section: 16 mm²; bolt-Ø 12 mm; nominal size according to DIN: 12-16; D1: 5.8; D3: 13; A: 10; B: 22; L: 26; S: 1.2; weight per 100 pcs ~kg: 0.5; PU/pc: 100.

EAN: 4021103804445

Tags / Keywords: 180444
