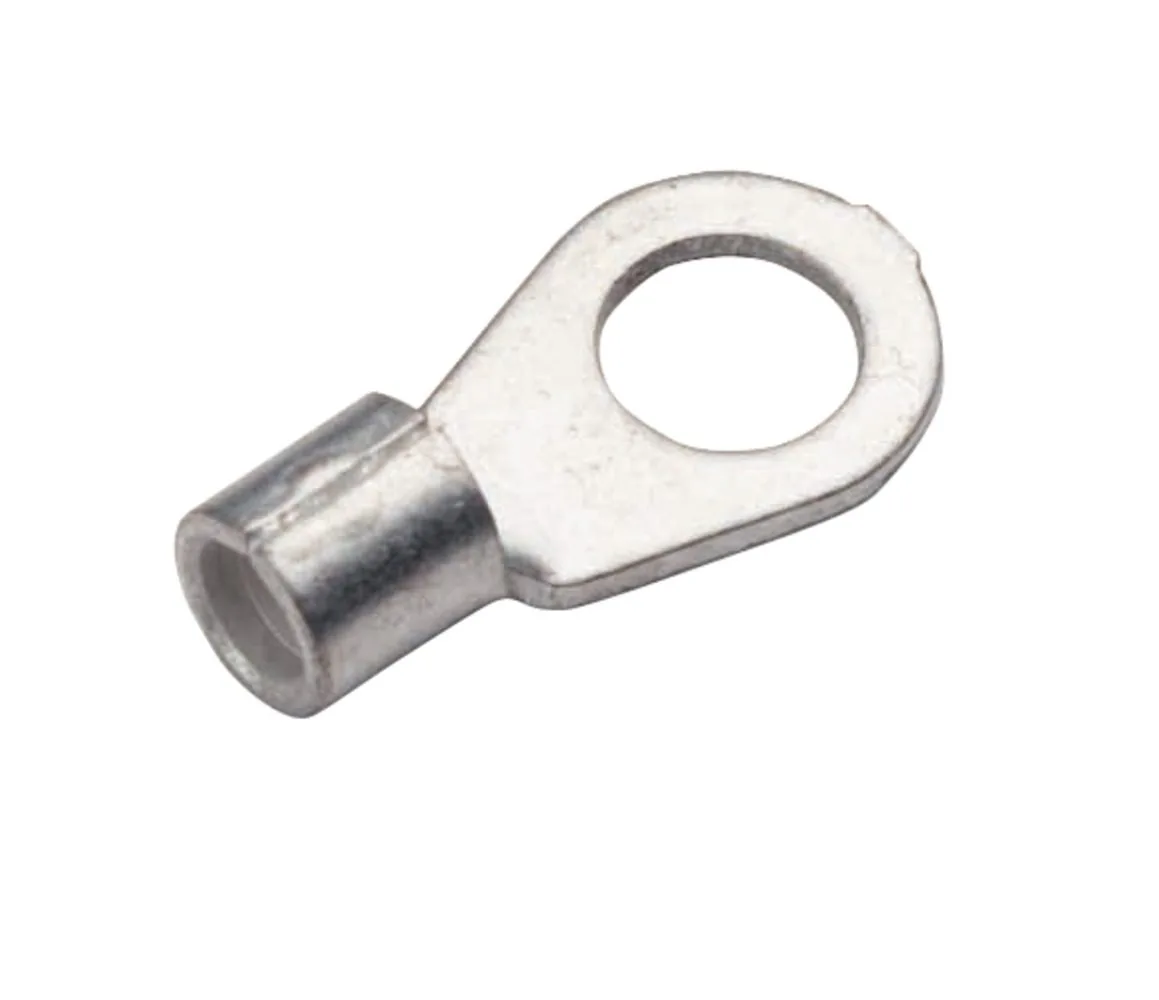

Home Crimp cable lug, ring shape Cu, conductor cross-section/connection stud 1 - 2.5 mm²/6 mm Ø

Crimp cable lug, ring shape Cu, conductor cross-section/connection stud 1 - 2.5 mm²/6 mm Ø

Name: Crimp cable lug, ring shape Cu, conductor cross-section/connection stud 1 - 2.5 mm²/6 mm Ø
Brand: CIMCO
SKU: 180412
Price: 700000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Germany

Crimp-on cable lugs, ring shape Cu, DIN 46234, conductor cross-section/connection stud 1 - 2.5 mm²/6 mm Ø, 100 pieces

SKU: 180412

700.000 đ

Stock status: Hết hàng

Price includes VAT

Description

Crimp terminals, ring type Cu, DIN 46234. Technical data - Material: Cu-ETP according to DIN EN 13600 - Surface: electro tin plated, other surfaces on request - Especially suitable for fine stranded conductors according to IEC 228 . Cross-section: 1-2.5 mm²; bolt-Ø 6 mm; nominal size according to DIN: 6-2.5; D1: 2.3; D3: 6.5; A: 5; B: 11; L: 16; S: 0.8; weight per 100 pcs. ~kg: 0.11; packing unit: 100.

EAN: 4021103804124
