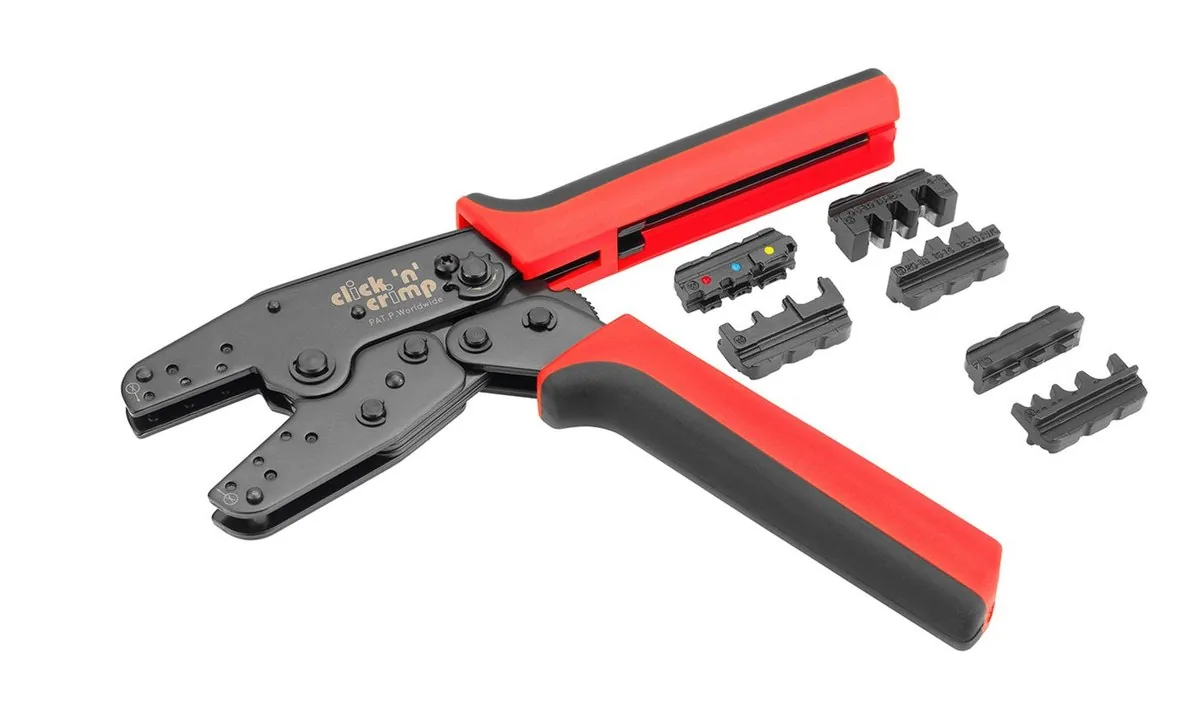

Click n Crimp Automotive, with interchangeable crimping profile inserts, which are fixed in the body of the pliers by a snap-in holder, allowing profiles to be changed in seconds without the need for additional tools. Two additional crimping profiles in use are held captive in the two integrated magazine holders on the tongs' legs. Two further crimping profiles are stored in the tongs legs.
Pliers body made of strong, specially tempered, hardened sheet steel, adjustable ratchet mechanism with positive release ensures standard-compliant crimping pressure, ergonomic 2-component handles. Weight incl. 3 crimping profile inserts only 690 g.
With crimping profile inserts, article numbers 106010 (for non-insulated cable lugs 0.5 mm² to 10 mm²), 106011 (for non-insulated cable lugs 0.5 mm² to 10 mm²) and 106013 (for blade terminals and blade connectors with open crimping claws from 0.5 mm² to 6 mm²).
EAN: 4021103060025
| SKU | Hình | Giá VNĐ | Tên sản phẩm & mô tả ngắn | |
|---|---|---|---|---|
| 106010 |
|
1.296.000
|
Mảnh thay thế cho Click n Crimp, cho đầu cáp cách điện
Replacement profile for crimping pliers system Click n Crimp 106005, oval crimping
|
|
| 106011 |
|
1.296.000
|
Mảnh thay thế cho Click n Crimp, cho đầu cáp không cách điện, 1.5–10 mm²
Replacement die for the Click n Crimp crimping tool system, Part No. 10 6005, mandrel crimping
|
|
| 106013 |
|
1.296.000
|
Mảnh thay thế cho Click n Crimp, cho đầu terminal và đầu tiếp xúc không cách điện, kẹp crimp mở
Replacement die for the Click n Crimp crimping tool system, part no. 10 6005, for non-insulated flat connectors and flat connector sleeves, open crimping jaws 0.5–6 mm², roll crimping
|
