Đầu cos cáp điện

Phích cắm tròn, cách điện, tiết diện/kích thước phích cắm 0.5-1 mm²/4 mm

★ 0.0 (0 đánh giá)
Đã bán: 0
Lượt xem: 0
Nhập khẩu từ: CHLB Đức
Round plug, insulated Cross-section/plug dimension 0.5-1 mm²/4 mm, red, 100 pieces
SKU: 180300
473.000,0 đ
Trạng thái kho: Hết hàng
Giá tham khảo, gồm VAT
Mô tả

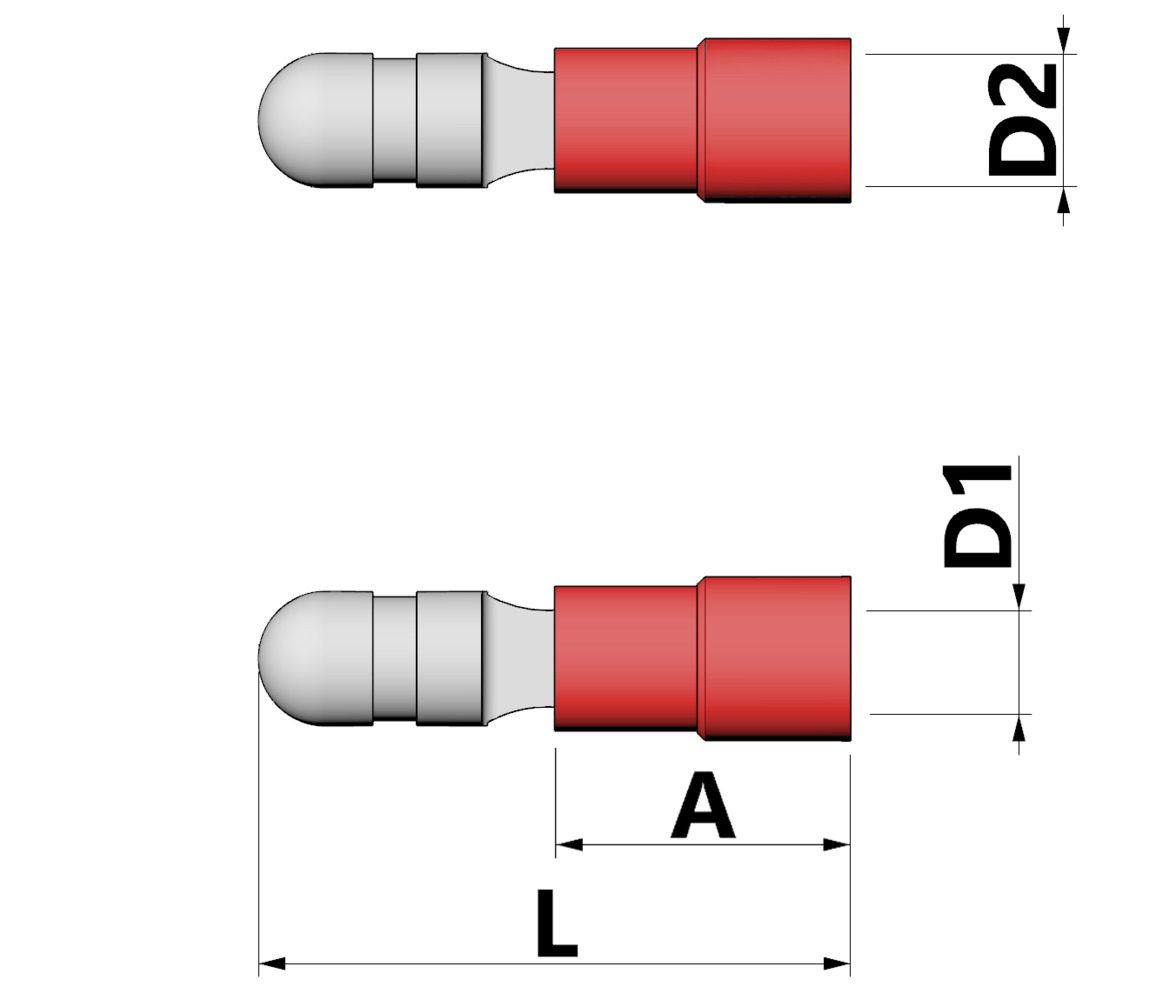

Round plugs, insulated from CuZn (brass), provide a reliable connection for fine-stranded conductors with a copper inner sleeve. The electroplated tin surface provides corrosion protection and ensures a durable, stable electrical connection. The insulation is made of PA (polyamide, nylon), halogen-free. The connectors are designed for strain-relieved connections, and Easy Entry allows for quick and easy insertion of the conductor. Temperature resistance: -60 °C to +105 °C, 600 V max. Technical data: Cross-section (mm²): 0.5 – 1 | Connector size: Ø 4 mm | Insulation color: red | D1: 1.7 | A: 11.0 | D2: 4.0 | L2: 8.5 | L: 22.0 | Weight per 100 pieces: approx. 0.08 kg | PU/unit: 100.

EAN: 4021103803004
