Cable lug

Insulated blade receptacle, cross-section 0.5 - 1 mm², plug dimension 6.3 x 0.8 mm

Sold: 0

Imported from: Germany

Insulated flat receptacles - DIN 46245, part 1 - 3 and similar versions, cross section 0.5 - 1 mm², plug dimension 6.3 x 0.8 mm red, 100 pieces

SKU: 180230-

12 variants

€11.27 - €17.87

Stock status: Varies by SKU

Indicative price

Description

Fully insulated flat plug sleeves made of CuZn (brass) provide a reliable connection for fine-stranded CU conductors of classes 5 and 6 according to DIN EN 60228 with Cu inner sleeve. The electroplated tin-plated surface provides corrosion protection and ensures a durable, stable electrical connection. The insulation is made of PA (polyamide, nylon), halogen-free.

The connectors are designed for strain-relieved connections, and Easy Entry allows for quick and easy insertion of the conductor. Manufactured in accordance with DIN 46245. Temperature resistance: -60 °C to +105 °C, 600 V max.

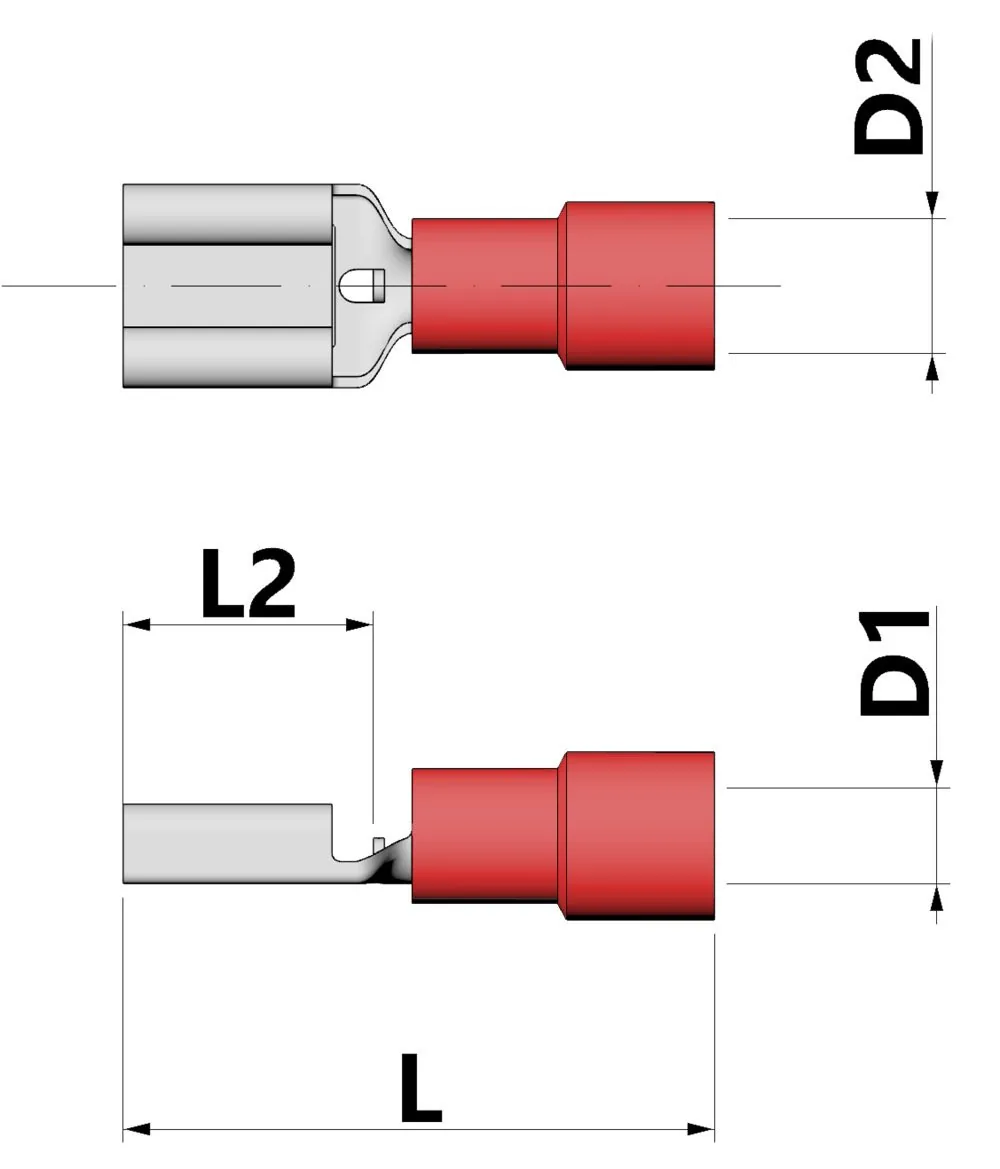

Technical data: Nominal cross-section (mm²): 0.5 – 1 | Insulation color: red | Plug dimensions: 6.3 x 0.8 | D1: 1.7 | A: 11.0 | D2: 4.0 | L2: 7.5 | L: 21.5 | UL tested: yes | Weight per 100 pieces: approx. 0.11 kg | PU/unit: 100.

EAN: 4021103802304

Price list & Ordering

Drag to reorder

	SKU Code	Price (EUR)	Cross section	Plug size	Weight
⋮⋮	180230	€11.27	0.5 - 1 mm²	6.3 x 0.8 mm	1.1g
⋮⋮	180232	€11.27	1.5 - 2.5 mm²	6.3 x 0.8 mm	1.1g
⋮⋮	180234	€14.24	4 - 6 mm²	6.3 x 0.8 mm	1.7g
⋮⋮	180235	€17.80	4 - 6 mm²	9.5 x 1.2 mm	2.6g
⋮⋮	180236	€17.00	1.5 - 2.5 mm²	2.8 x 0.5 mm	1g
⋮⋮	180238	€17.00	1.5 - 2.5 mm²	2.8 x 0.8 mm	0.8g
⋮⋮	180250	€17.87	0.5 - 1 mm²	2.8 x 0.5 mm	0.7g
⋮⋮	180252	€17.87	0.5 - 1 mm²	2.8 x 0.8 mm	0.7g
⋮⋮	180254	€16.93	0.5 - 1 mm²	4.8 x 0.5 mm	0.8g
⋮⋮	180256	€16.93	0.5 - 1 mm²	4.8 x 0.8 mm	0.9g
⋮⋮	180258	€17.00	1.5 - 2.5 mm²	4.8 x 0.5 mm	0.9g
⋮⋮	180260	€17.00	1.5 - 2.5 mm²	4.8 x 0.8 mm	0.9g
