Cable lug

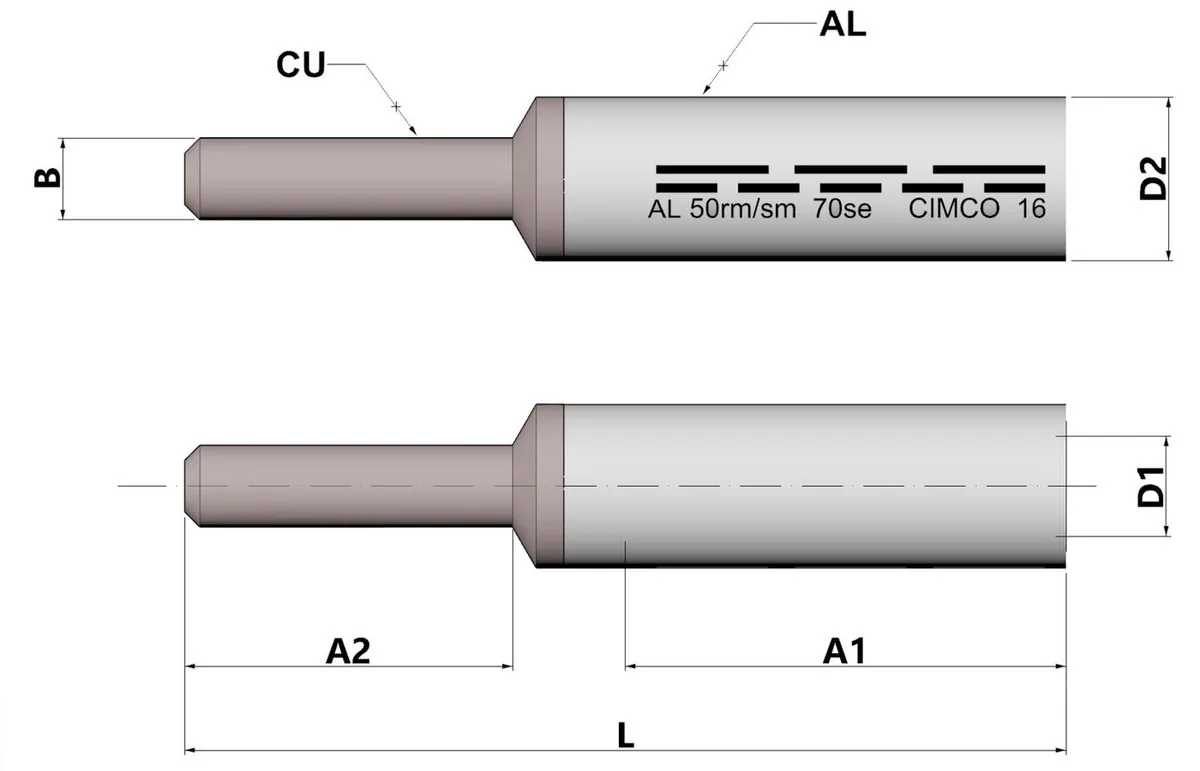

CIMCO 18367x Al-Cu compression cable lug, copper pin or palm, 16 - 35 mm²

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany

CIMCO 18367x Al-Cu compression cable lug, copper pin or palm, 16 - 35 mm².

SKU: 18367x
4 variants
€82.82 - €137.34
Stock status: Varies by SKU
Indicative price
Price list & Ordering
Drag to reorder
SKU Code Price (EUR) Buy Stock Cross section Inner diameter Length Number of molds Thread type Weight
183671 €128.34 16 mm² - - - M6 180g
183672 €131.11 25 mm² - - - M6 220g
183912 €82.82 25 mm² 6,8 mm 61mm 12 M12 30g
183673 €137.34 35 mm² - - - M7 320g
Description

CIMCO 18367x Al-Cu compression cable lug, copper pin or palm, 16 - 35 mm². Price per pack.


Specifications

  • Bimetallic compression cable lug, aluminium barrel with copper termination
  • Function: connects aluminium conductors to copper terminals
  • Barrel material: E-Al aluminium, compressed onto aluminium conductor
  • Termination material: E-Cu copper to EN 13600
  • Copper-to-copper contact at busbar interface
  • Both sections bare, untinned
  • Suitable for aluminium conductors to DIN 48201 part 1
  • Also suitable for aluminium conductors to DIN EN 50182
  • For connections not subject to tensile load
  • Selection by conductor cross-section per manufacturer table
  • Packaging: box of 10 pieces
  • Material: E-Al aluminium and E-Cu copper
