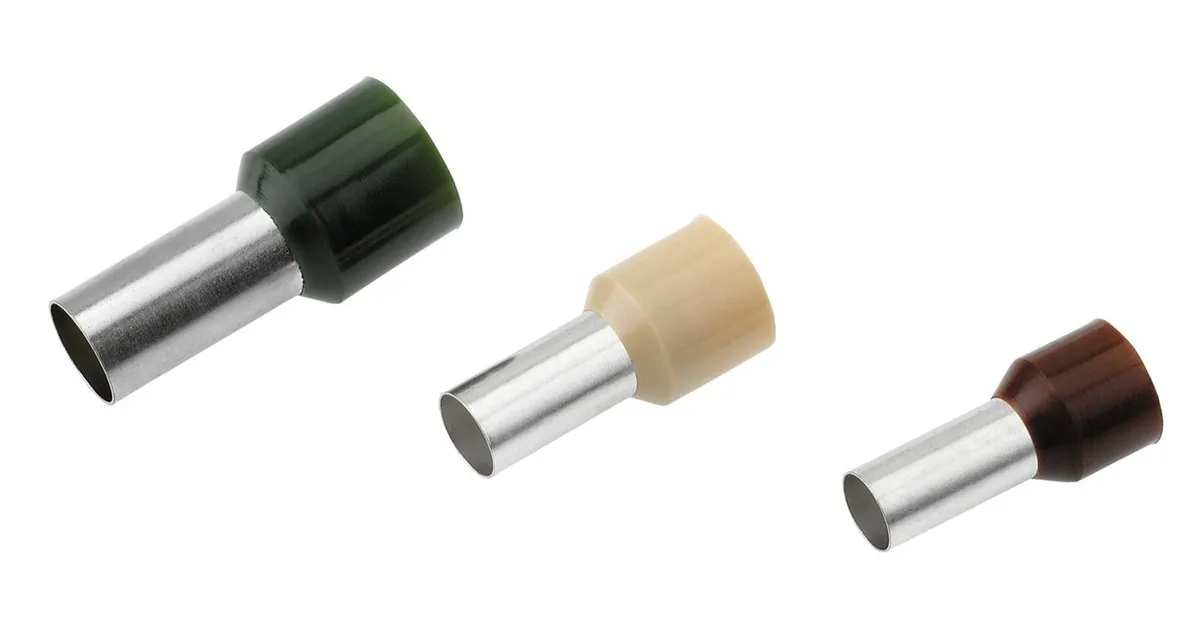

Insulated wire end ferrules | Dimensions according to DIN 46228 part 4 color series 2 | Technical data: Material Cu-ETP according to DIN EN 13600 | Surface galvanically tin-plated | Insulation polypropylene | Temperature resistance from -35°C to +105°C | For effortless insertion on fine-wire copper conductors prevents damage and splicing | Design: Cross-section 25 mm² | Length without insulation L2 16 mm | Total length L1 30 mm | d1 7.3 | d2 11.2 | S1 0.2 | S2 0.4 | Insulation color brown | Weight per 100 pieces approx. 0.13 kg | UL-listed not applicable | PU/unit: 50 pieces
EAN: 4021103822227
| SKU Code | Price (EUR) | Buy | Stock | Cross section | Weight | ||
|---|---|---|---|---|---|---|---|
| ⋮⋮ | 182222 | €142.12 | 25.0 mm² | 1.3g | |||
| ⋮⋮ | 182362 | €131.05 | 25.0 mm² | 1.3g | |||
| ⋮⋮ | 182366 | €173.82 | 35.0 mm² | 2.1g |
