Cable lug

Photovoltaic connector system set, 100 pieces

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Photovoltaic connector system set male + female, 100pcs.
SKU: 180000
€6.55
Stock status: Out of stock
Indicative price
Description

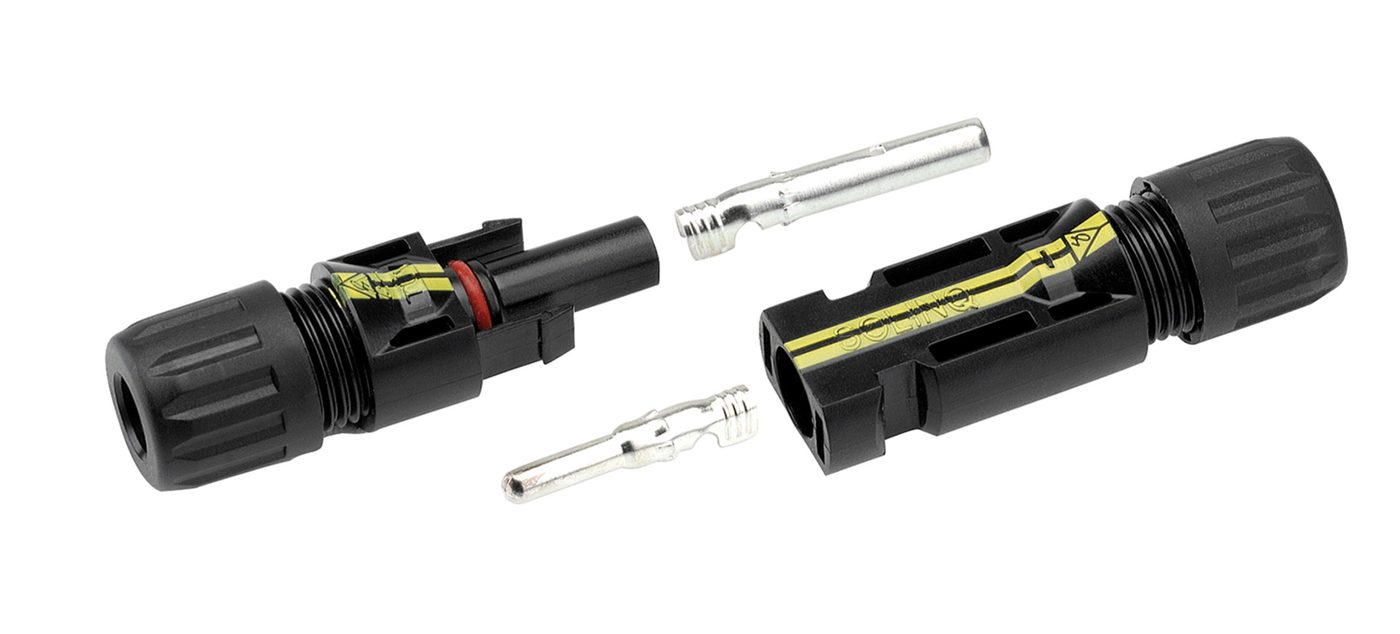

Photovoltaic connector system. The use of this new photovoltaic connector saves work and time on the construction site. The Cimco connector system is compatible with the MC4 market standard and is suitable for all common solar cables from 2.5 mm² to 6 mm².

Consisting of connector system plug and socket incl. plastic housing, packed per 100 plug crimp contacts and plastic housing in a polybag and per 100 socket crimp contacts and plastic housing in a polybag.

Technical data:2.5 to 6 mm², voltage range: 1,000 V, current carrying capacity: 30 A (4 mm², 6 mm²), contact resistance of the connector system: 5 m, diameter of the plug contact: 4 mm, protection class: IP 68, temperature range: -40°C /+85°C, insulation material: PC/PA, contact material: copper, silver-plated, safety class: II, certification: TÜV, crimping range: 2.5 - 6 mm². Set male+female; 100pcs.

EAN: 4021103800003
