Cable lug

Photovoltaic connector system, set male + female, 1 piece

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Photovoltaic connector system. Using this new photovoltaic connector saves time and labor on the construction site. The Cimco connector system is compatible with the market standard MC4 and is suitable for all common solar cables from 2.5 mm² to 6 mm². Consisting of a connector s
SKU: 188010
€5.55
Stock status: Out of stock
Indicative price
Description

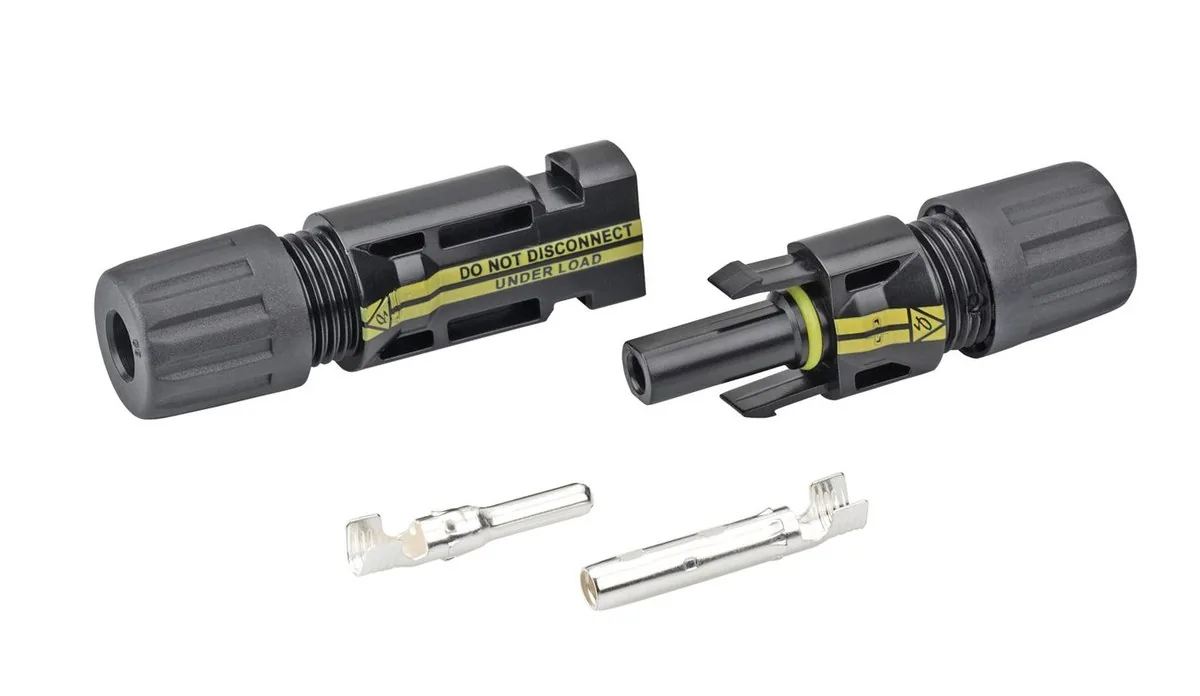

Photovoltaic connector system. The use of this new photovoltaic connector saves work and time on the construction site. The Cimco connector system is compatible with the market standard MC4 and is suitable for all common solar cables from 2.5 mm² to 6 mm². Consisting of connector system plug and socket incl. plastic housing in polybag and 100 pieces each socket crimp contacts and plastic housing in polybag.

Technical data: 2.5 to 6 mm², voltage range: 1000 V, current carrying capacity: 30 A (4 mm², 6 mm²), contact resistance of the connector system: 5 m?, diameter of the plug contact: 4 mm, protection class: IP 67, temperature range: -40°C/+85°C, insulation material: PC/PA, contact material: copper, silver-plated, safety class: II, certification: TÜV, crimping range: 2.5 - 6 mm². Version: Set male + female; Packs of: 1.

EAN: 4021103880104
