Cable lug

Round plug, insulated Cross-section/plug dimension 1.5 - 2.5 mm²/5 mm

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Round plug, insulated Cross-section/plug dimension 1.5 - 2.5 mm²/5 mm, blue, 100 pieces
SKU: 180302
€16.69
Stock status: Out of stock
Indicative price
Description

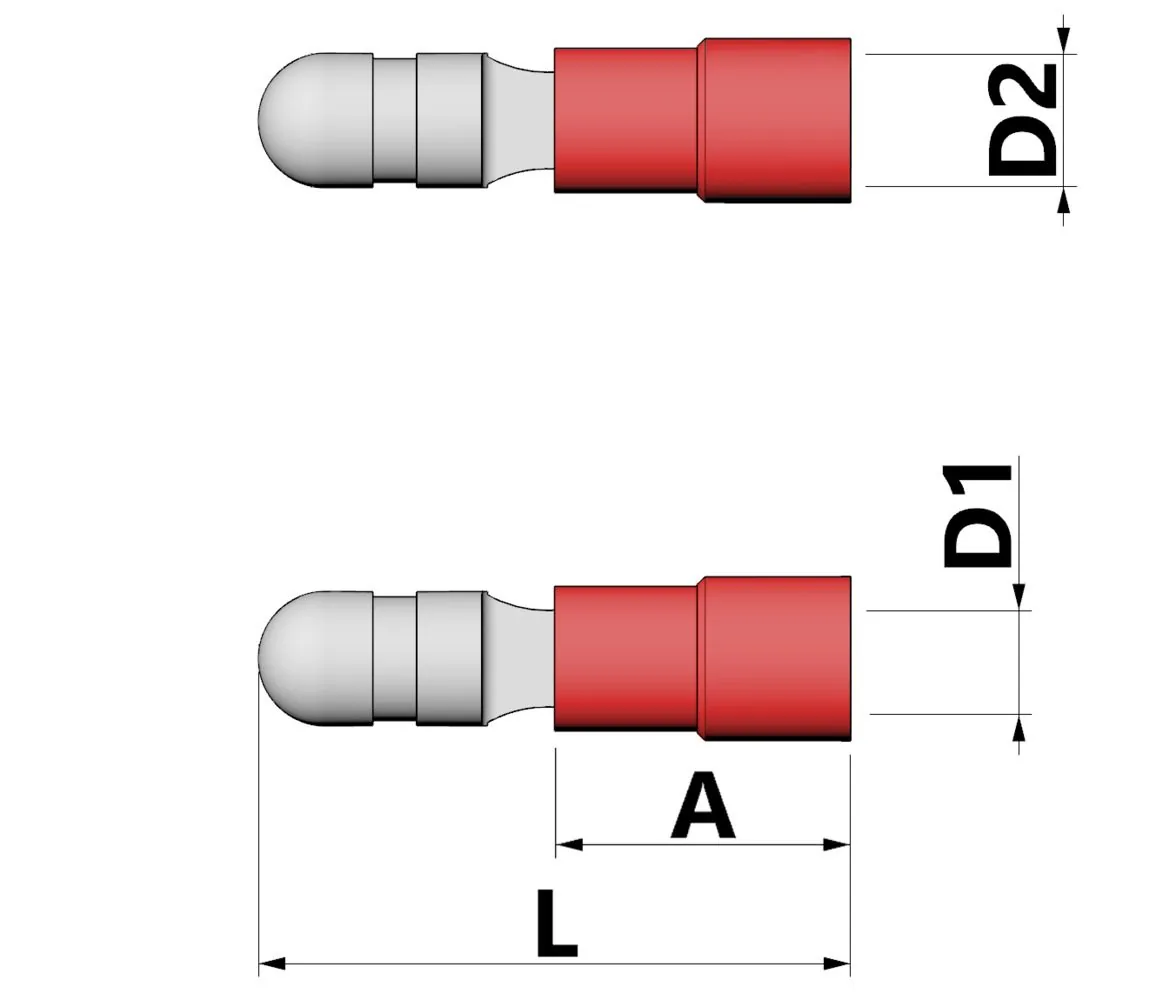

Round plugs, insulated from CuZn (brass), provide a reliable connection for fine-stranded conductors with a copper inner sleeve. The electroplated tin-plated surface provides corrosion protection and ensures a durable, stable electrical connection. The insulation is made of PA (polyamide, nylon), halogen-free. The connectors are designed for strain-relieved connections, and Easy Entry allows for quick and easy insertion of the conductor. Temperature resistance: -60 °C to +105 °C, 600 V max. Technical data: Cross-section (mm²): 1.5 – 2.5 | Connector size: Ø 5 mm | Insulation color: blue | D1: 2.3 | A: 11.0 | D2: 4.5 | L2: 8.5 | L: 22.0 | Weight per 100 pieces: approx. 0.11 kg | PU/unit: 100.

EAN: 4021103803028
