Home Lifting equipments Manual hydraulic stacker 1000 kg with double telescopic mast, 2500 mm lift – FERVI 0143/25

Lifting equipments

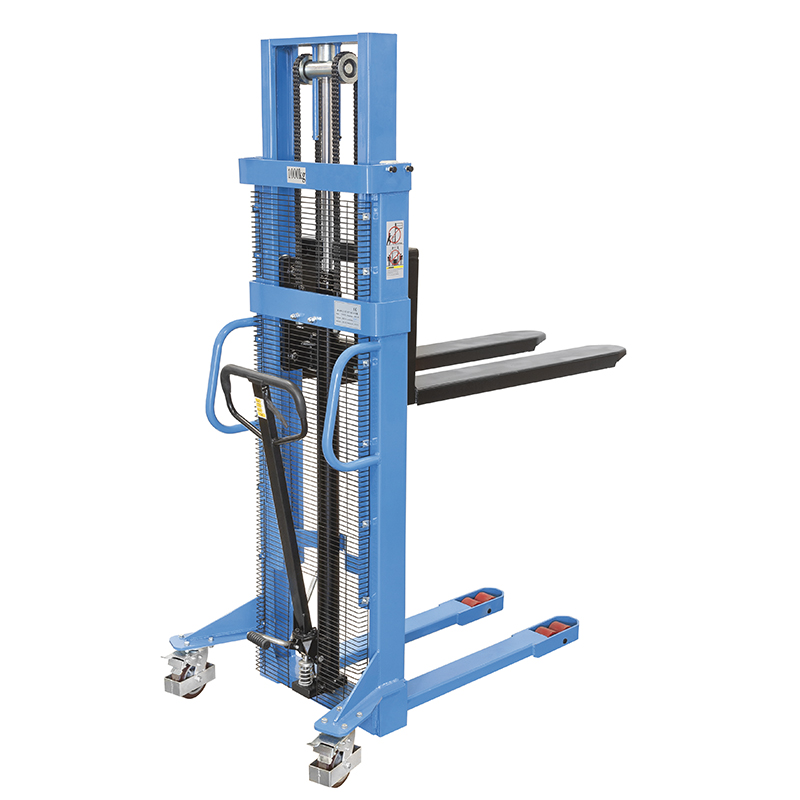

Manual hydraulic stacker 1000 kg with double telescopic mast, 2500 mm lift – FERVI 0143/25

Name: Manual hydraulic stacker 1000 kg with double telescopic mast, 2500 mm lift – FERVI 0143/25
Brand: FERVI
SKU: 0143-25
Price: 97995000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews)

Sold: 0

Imported from: Italy

Origin: Made in China

Lifts loads up to 1000 kg to a maximum height of 2500 mm using a double telescopic mast. Equipped with a foot-operated lifting pedal and integrated brake for safe operation on inclines. Fork dimensions 1150 × 550 mm suit standard EUR and Asian pallets. Dual fixed polyurethane front wheels ensure stability during lifting. Mobile rubber rear wheels enable tight-radius steering in confined warehouse spaces.

SKU: 0143-25

€3,307.79

Stock status: Out of stock

Indicative price

PDF catalog

Description

Manual hydraulic stacker 1000 kg double telescopic mast 2500 mm handles pallet transport and high-level stacking in warehouses and production facilities. The unit raises loads from 75 mm to 2500 mm through a hydraulic double-mast mechanism. An integrated brake locks the stacker on slopes. A foot-operated pedal frees both hands for load adjustment.

Fork size 1150 × 550 mm accommodates standard pallet formats. Dual fixed polyurethane front wheels provide stable lifting. Mobile rubber rear wheels deliver agile maneuvering in narrow aisles.

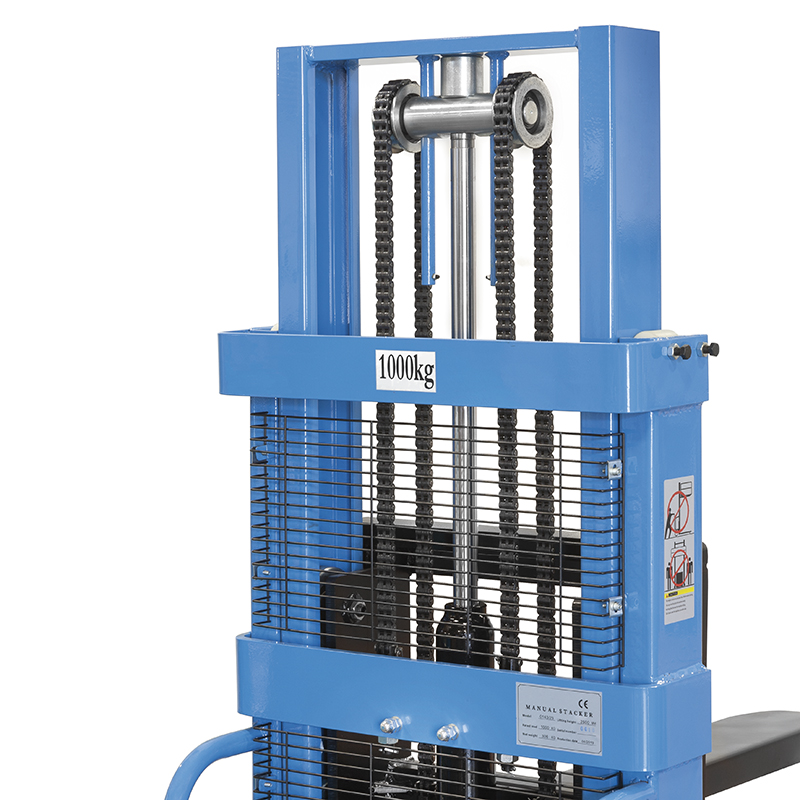

Double telescopic mast for manual hydraulic stacker 1000 kg

The double telescopic mast extends the lifting range to 2500 mm, enabling operators to place goods on high shelving. The hydraulic cylinder operates smoothly with minimal effort. Mast height at rest is 1840 mm, offering clear sightlines during transport. The fork begins at 75 mm, allowing entry under standard pallets.

Lifting range: 75 – 1600 – 2500 mm
Upright height: 1840 mm
Hydraulic double-mast mechanism

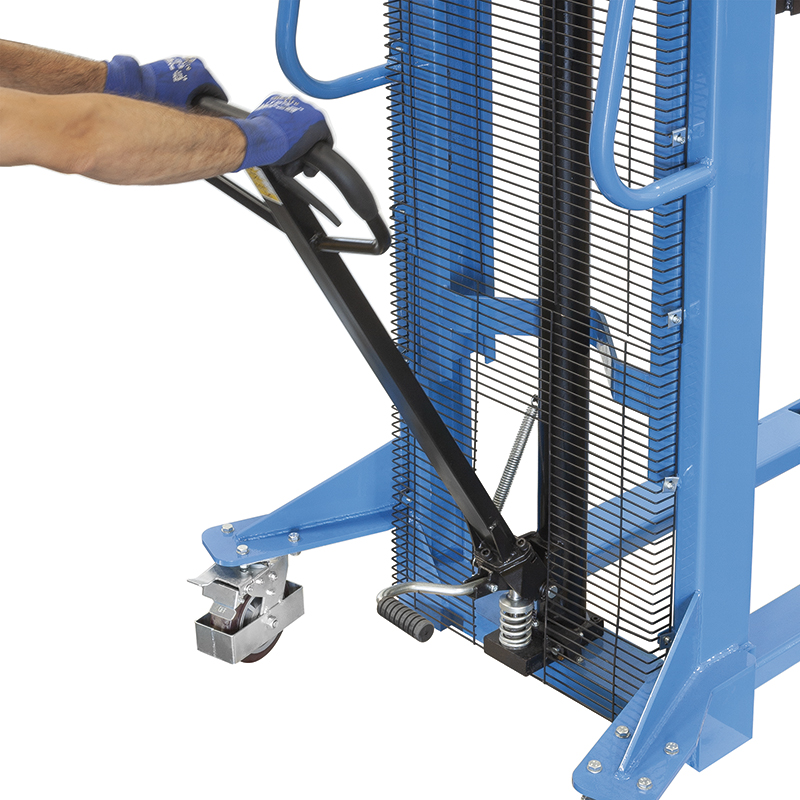

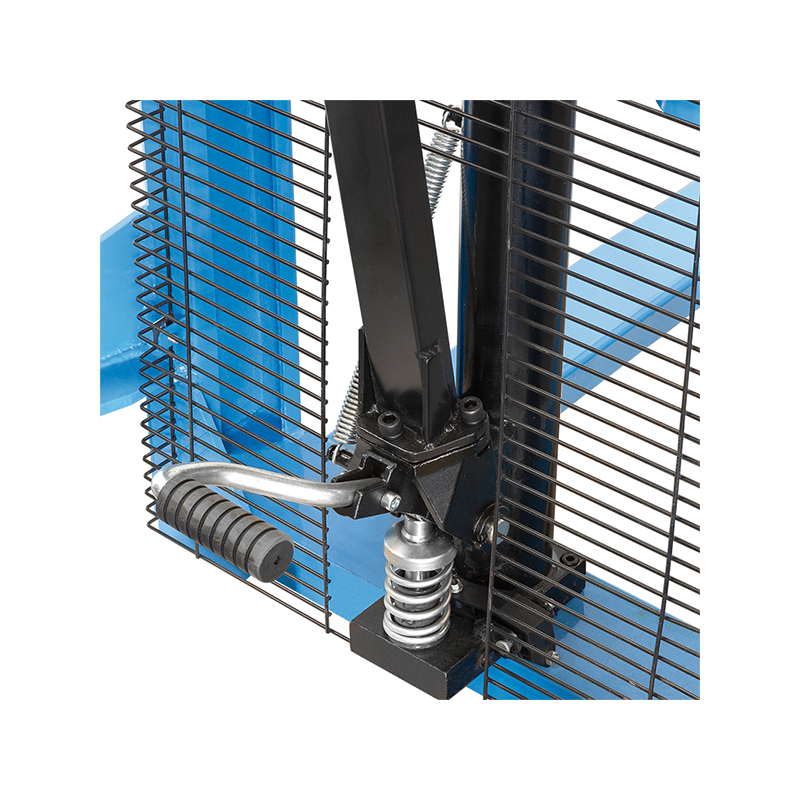

Foot-operated lifting pedal

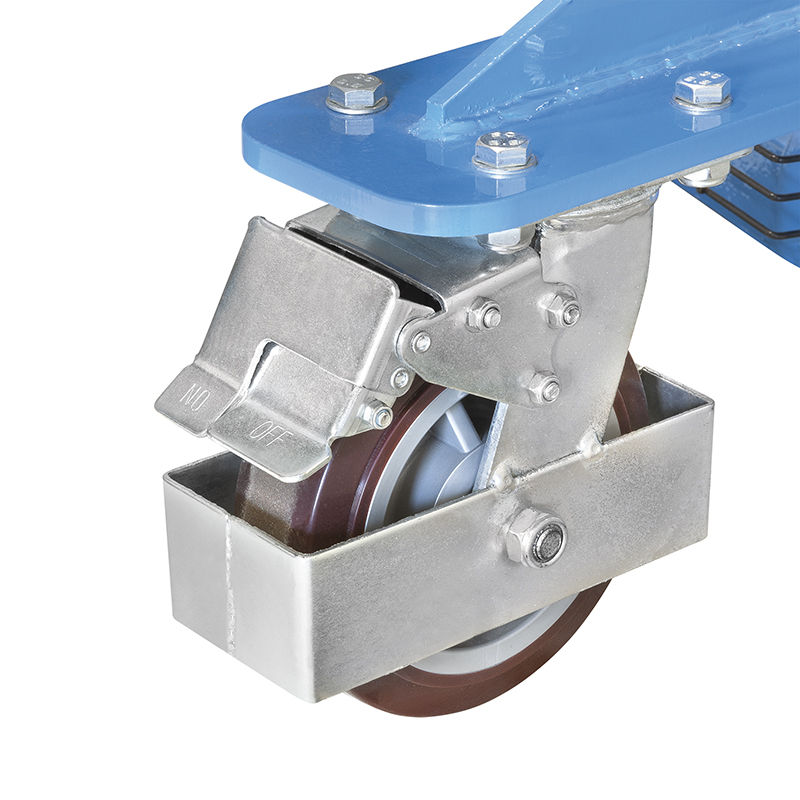

Integrated brake for slope safety

The brake system holds the stacker stationary during load placement or when parked on inclined surfaces. The foot pedal allows hands-free lifting, increasing productivity in busy environments. Smooth hydraulic action reduces shock to fragile cargo.

Fork and wheel configuration

Forks measure 1150 × 550 mm with a cross-section of 160 × 55 mm, delivering robust load support and minimal deflection under weight. Dual fixed polyurethane front wheels stabilize the unit during vertical travel. Mobile rubber rear wheels rotate freely for tight turns.

Fork dimensions: 1150 × 550 mm
Fork section: 160 × 55 mm
Front wheels: dual fixed polyurethane
Rear wheels: mobile rubber
Capacity: 1000 kg (full fork), 800 kg (working load)

Polyurethane front wheels reduce noise and protect indoor flooring. Rubber rear wheels grip varied surfaces effectively. This combination ensures smooth travel and minimizes vibration when transporting delicate items.

Overall dimensions and weight

The stacker occupies 1670 × 920 × 1840 mm (L × W × H) and weighs 310 kg. Compact footprint suits narrow warehouse corridors. Robust steel construction supports repeated daily cycles in industrial settings.

Common applications

This stacker serves warehouses, manufacturing plants, and distribution centers. Operators use it to move palletized goods, stack inventory on elevated racks, and shuttle materials along production lines. The 2500 mm lift height accommodates multi-tier shelving systems. The integrated brake and foot pedal enhance safety and efficiency in high-traffic zones.

Technical reference

Maximum capacity is 1000 kg when the load is centered on the full fork length; working load is 800 kg. The hydraulic system requires no external power. Fork entry height of 75 mm fits under most pallet designs. The double mast retracts to 1840 mm for clearance through standard doorways. Net and gross weight both equal 310 kg. Packaging dimensions are 1690 × 910 × 1955 mm.

Specifications

Capacity: 1000 kg (full fork), 800 kg (working load)
Fork height range: 75 – 1600 – 2500 mm
Fork dimensions: 1150 × 550 mm
Fork section: 160 × 55 mm
Upright height: 1840 mm
Front wheels: dual fixed polyurethane
Rear wheels: mobile rubber
Overall dimensions: 1670 × 920 × 1840 mm (L × W × H)
Net weight: 310 kg
Gross weight: 310 kg
Packaging dimensions: 1690 × 910 × 1955 mm
Features: double telescopic mast, integrated brake, foot-operated lifting pedal
