Manual hydraulic stacker with brake and foot lifting pedal – FERVI 0143A

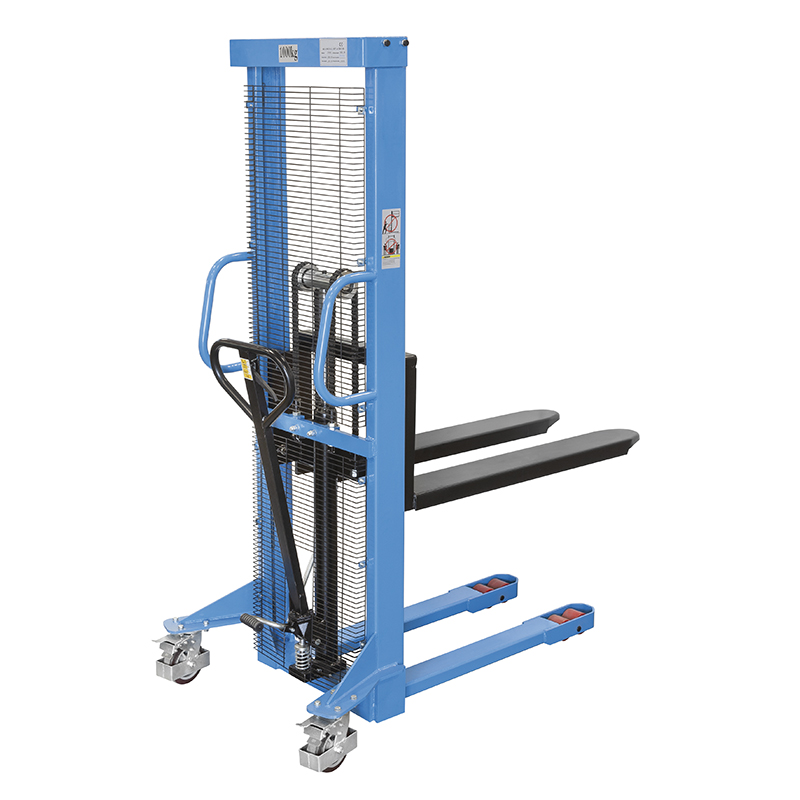

This manual hydraulic high-lift stacker handles loads up to 1000 kg and raises them from 90 mm to 1600 mm. The unit integrates a mechanical brake for safe positioning at height. A foot-operated hydraulic pedal accelerates lifting cycles and reduces manual effort. Fork dimensions of 1150×550 mm accommodate standard pallets. The 160×55 mm fork cross-section ensures structural rigidity under load.

Polyurethane wheels leave no floor marks and operate quietly. The front axle carries twin wheels for improved stability. The 2100 mm upright height enables stacking onto elevated racking systems. Overall dimensions are 1690×910×2100 mm with a net weight of 250 kg.

Technical features of the manual hydraulic high-lift stacker with brake

The hydraulic system raises the forks smoothly through the full 90–1600 mm range. The foot pedal allows hands-free lifting while the operator guides the load. The integrated brake locks the mast at any height for secure loading and unloading. Steel construction withstands daily industrial use. Polyurethane tires resist wear and protect finished floors.

• Load capacity: 1000 kg
• Lift range: 90–1600 mm
• Fork size: 1150×550 mm
• Fork section: 160×55 mm
• Upright height: 2100 mm
• Wheel material: polyurethane
• Front wheels: twin configuration
• Net weight: 250 kg

The brake mechanism is simple and reliable, requiring minimal maintenance. The hydraulic pump is built for long service intervals. Compact footprint and smooth-rolling wheels enable maneuvering in tight aisles. The unit ships fully assembled in a 1690×910×2100 mm package weighing 254 kg gross.

Brake and foot-pedal operation

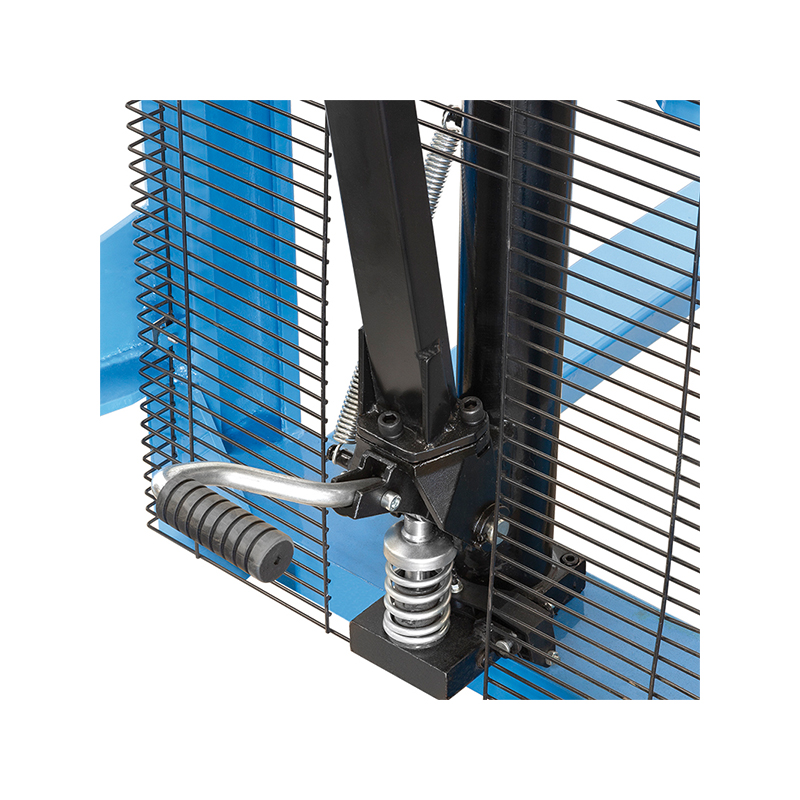

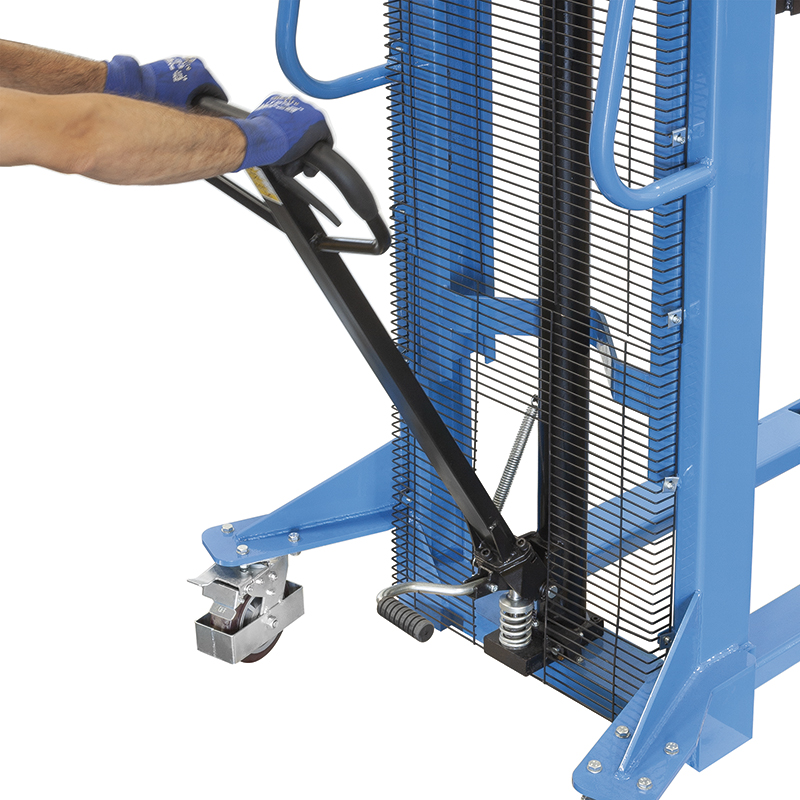

The mechanical brake engages to hold the mast at any selected height. This feature prevents unintended descent during loading or unloading at elevation. The foot pedal activates the hydraulic pump, freeing both hands to steady the pallet. Operators can lift and position loads efficiently without bending or excessive physical strain.

• Brake type: mechanical, mast-mounted
• Pedal function: hydraulic pump activation
• Hands-free lifting operation
• Secure height locking

The pedal design reduces cycle time compared to hand-pump models. The brake releases easily when the operator is ready to lower the load. Both controls are positioned for intuitive use during routine warehouse tasks.

Fork and wheel configuration

Forks measure 1150 mm in length and 550 mm in width, matching Euro and standard pallet footprints. The 160×55 mm cross-section provides torsional stiffness and resists deflection under maximum load. Polyurethane wheels combine load-bearing strength with floor protection. Twin front wheels distribute weight evenly and improve directional stability.

• Fork length: 1150 mm
• Fork width: 550 mm
• Fork section: 160×55 mm
• Wheel material: polyurethane
• Front-wheel count: two (twin)

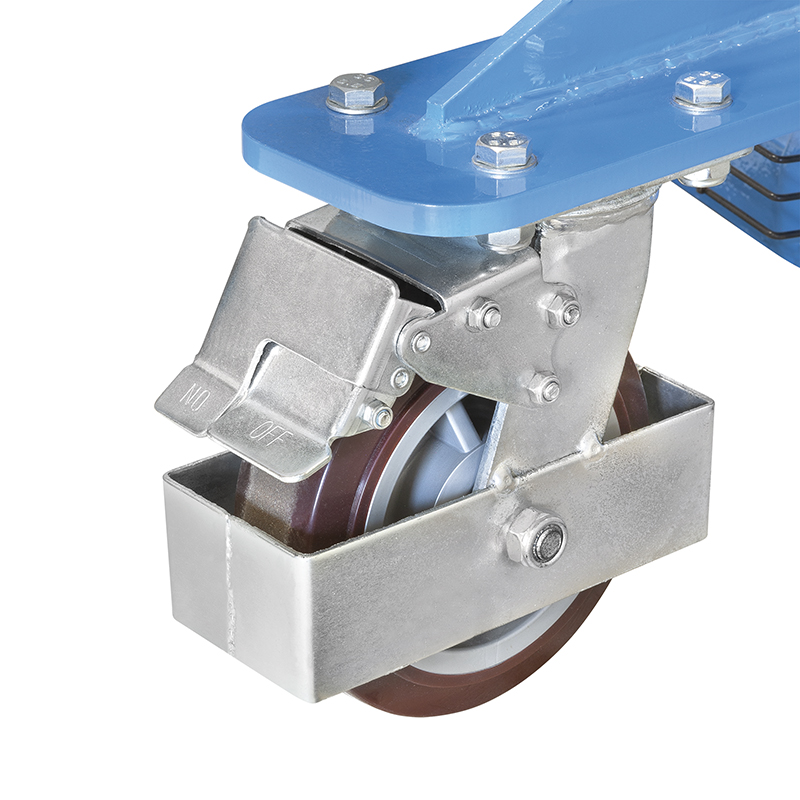

The wheel compound resists abrasion and operates quietly on concrete or tile. The twin-front layout reduces rolling resistance and enhances control when navigating corners or ramps.

Common applications

This stacker serves warehouses that stack pallets onto elevated racking up to 1.6 meters high. It is used in manufacturing plants, distribution centers, and logistics hubs. The brake ensures safe operation when loading shelves at height. The foot pedal speeds up repetitive lifting tasks and improves throughput. The unit is suited to indoor environments with smooth, level floors.

Dimensions and weight

Overall dimensions are 1690 mm long, 910 mm wide, and 2100 mm tall when the mast is fully extended. Net weight is 250 kg; gross shipping weight is 254 kg. The compact profile allows passage through standard doorways and narrow aisles. The steel frame provides durability without excessive bulk.

• Length: 1690 mm
• Width: 910 mm
• Height (upright): 2100 mm
• Net weight: 250 kg
• Gross weight: 254 kg

Packaging dimensions match the assembled unit at 1690×910×2100 mm. The stacker arrives ready for immediate use with no field assembly required.
