Hydraulic cable crimping

Hydraulic battery press CIMPRESS 400 C

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in France

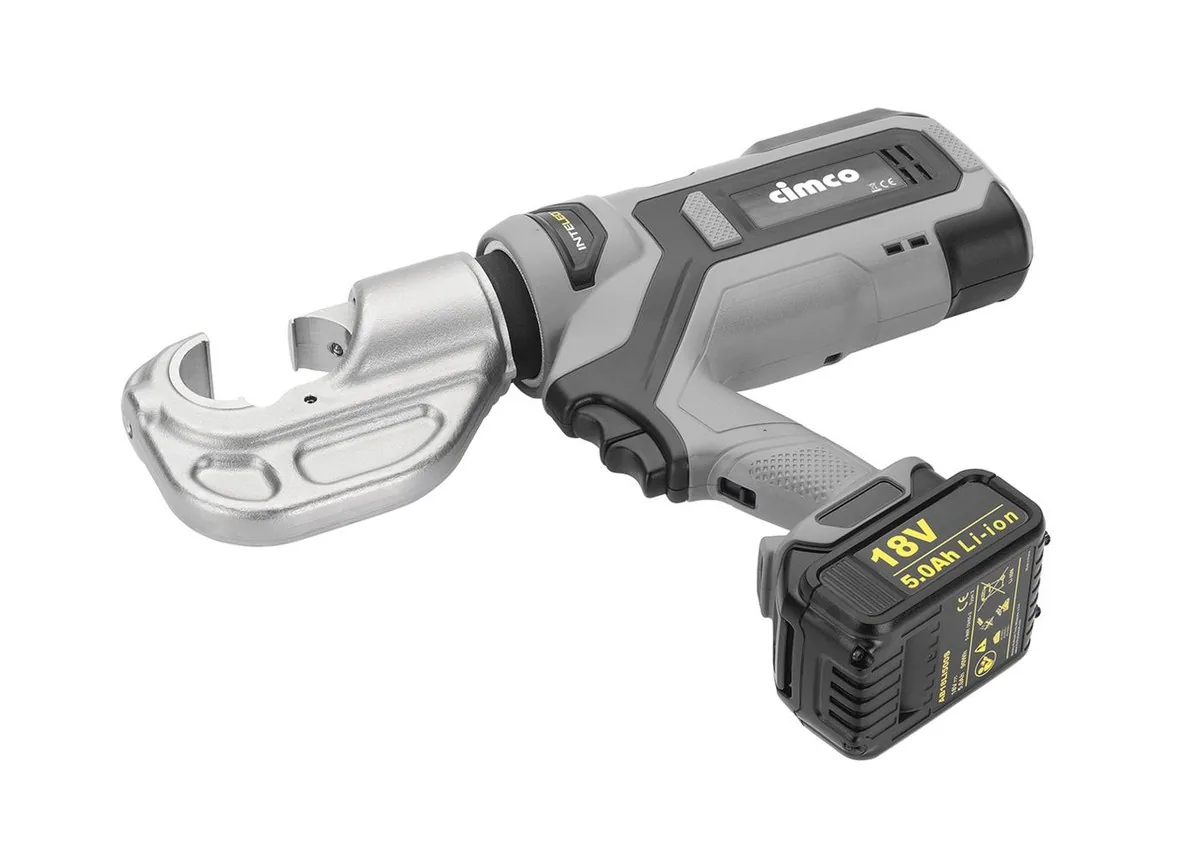

Hydraulic battery press, pistol-shaped, CIMPRESS 400 C, up to 130 kN, open C-shaped press head
SKU: 106665
€4,063.06
Stock status: Out of stock
Indicative price
Description

Pressing tool in pistol form: CimPress 400 C : Pressing head 270° rotatable, interchangeable pressing inserts, 2-stage hydraulics for high-speed feed, manual return after pressing is complete: Pressing force: 130 kN; Stroke/opening width: 38 mm; Pressing range: 10-400 mm²; Pressing time: (depending on cross-section): 8-9s;, Service cycle: 15.000 operations; Working range: -10°C to +60°C; Battery voltage: 18 V; Battery capacity: 5.0 Ah Li-Ion; Battery charging time: 60 min, Supplied in a case with 2 batteries and charger, Dimensions: 425x335x86; Weight: 7,350 g

EAN: 4021103004241


Specifications

  • Lực ép: 130 kN
  • Hành trình/độ mở: 38 mm
  • Phạm vi tiết diện bấm: 10-400 mm²
  • Thời gian bấm: 8-9 giây (tùy tiết diện)
  • Chu kỳ tuổi thọ: 15.000 lần ép
  • Phạm vi nhiệt độ làm việc: -10°C đến +60°C
  • Điện áp pin: 18 V
  • Dung lượng pin: 5.0 Ah Li-Ion
  • Thời gian sạc pin: 60 phút
  • Đầu bấm xoay: 270°
  • Kích thước hộp: 425×335×86 mm
  • Trọng lượng: 7.350 g
  • Bộ gồm: thân kìm, 2 viên pin, bộ sạc, hộp đựng
Optional Accessories
SKU Image Price VNĐ Product name & short description
188686- Stainless steel - VA - tubular cable lug, 100 pieces
€479.68
Stainless steel - VA - tubular cable lug, 100 pieces
Stainless steel - VA - tubular cable lugs, nominal cross section 4 - 6 mm², M8
183798- Tube cable lug for switchgear connections Cu, 25 mm², M6
€277.91
Tube cable lug for switchgear connections Cu, 25 mm², M6
Tubular cable lug for switchgear connections, SG series Cross-section 25 mm², M6
183500- Press cable lug Cu, DIN 46235, 6 mm², M5
€35.26
Press cable lug Cu, DIN 46235, 6 mm², M5
Pressed cable lug, DIN 46235, conductor cross-section/ connection bolt 6 mm²/5 mm
106900 ALU press insert set, 6-piece
€644.15
ALU press insert set, 6-piece
ALU press insert set for 106652, 6-piece
106896 NORMAL press insert set, 6-piece
€644.15
NORMAL press insert set, 6-piece
NORMAL press insert set, 6-piece, for 106652
105764 Đầu ép cos 50 mm² Cimco 105764, ép trục cho đầu nối/pin và đầu cáp ống, series 22
€218.80
