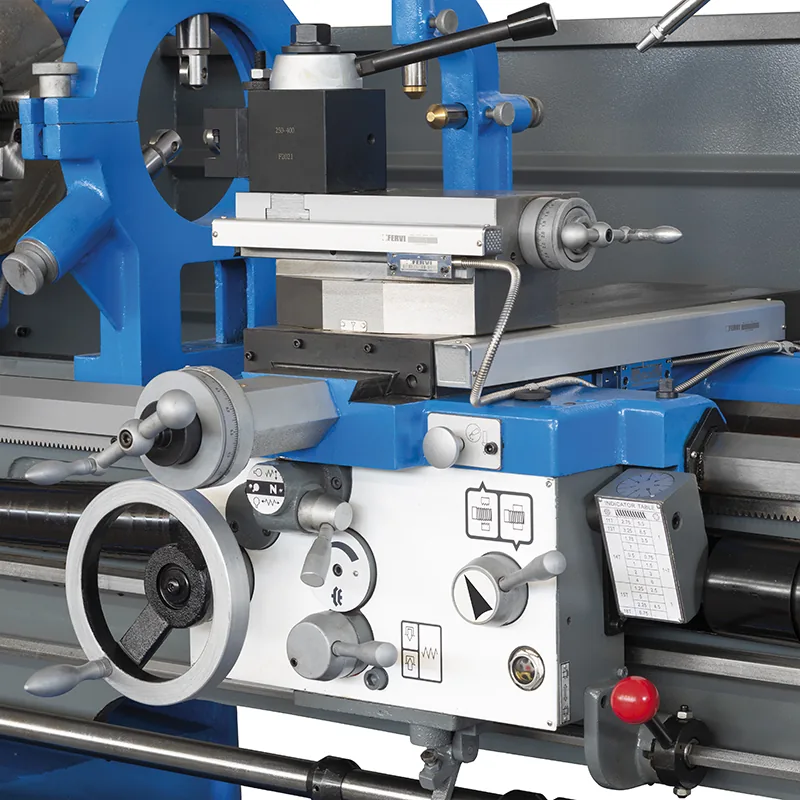

GEAR HEAD LATHE WITH READOUT

Name: GEAR HEAD LATHE WITH READOUT
Brand: FERVI
SKU: T075/400V3A
Price: 1163299000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Italy

WITH 2 SPEED MOTOR AND 3 AXIS READOUT, SEMI NORTON GEAR BOX. WITH CAST IRON MONOBLOC BASE.

SKU: T075/400V3A

1.163.299.000 đ

Stock status: Hết hàng

Price includes VAT

Download PDF catalog

Description

WITH 2 SPEED MOTOR AND 3 AXIS READOUT, SEMI NORTON GEAR BOX. WITH CAST IRON MONOBLOC BASE.

Specification	Value
Centers height	230 mm
Max swing over the bed	460 mm
Max swing over the cross slide	270 mm
Max swing over the gap	690 mm
Tool height	25 mm
Distance between centers	1500 mm
Spindle bore	58 mm
Spindle nose Camlock	Camlock D1-6
Spindle bore taper MT	6
Spindle speed	(12) 25 - 2000 rpm
Longitudinal feeds	(42) 0,031 - 1,7 mm/rev
Cross feeds	(42) 0,014 - 0,784 mm/rev
Metric threads	(41) 0,1 - 14 mm
Inch threads	(60) 2 - 112 TPI
Tailstock taper MT	4
Motor	400 V 50 Hz 5,5 kW
Cooling pump	400 V 50 Hz 90 W
Dimensions	2750 x 1080 x 1370 mm
Net weight	1900 kg
Packaging dimensions	2870 x 1180 x 1570 mm
Gross weight	1900,00 kg
EAN Code	8012667432270
