Crimping pliers

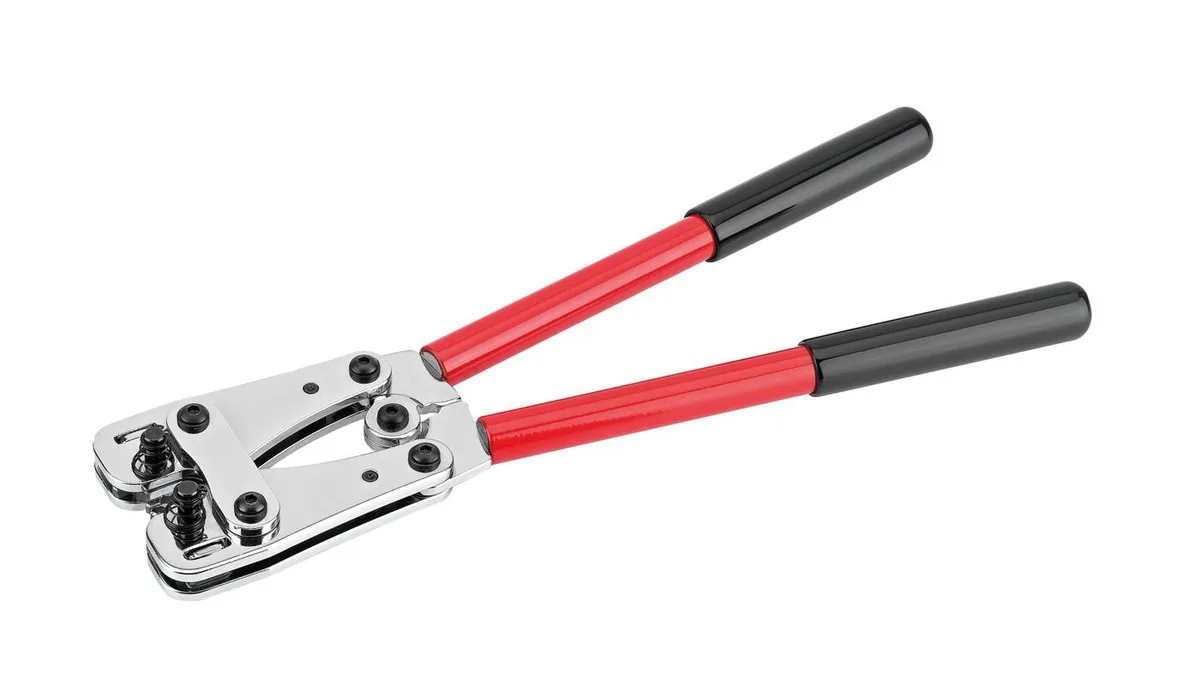

CIMCO 101890 WM crimping tool for tubular cable lugs, 6 to 50 mm²

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany

Lever-operated crimping pliers with rotating profile discs and WM crimping profile for tubular cable lugs and connectors, 6 to 50 mm², approved for conductor classes 2, 5 and 6 to IEC 60228.

SKU: 101890
€310.62
Stock status: Out of stock
Indicative price
Description

Lever-operated crimping pliers with rotating profile discs and WM crimping profile for tubular cable lugs and connectors, 6 to 50 mm², approved for conductor classes 2, 5 and 6 to IEC 60228.


Specifications

  • Function: crimping tubular cable lugs and connectors
  • Crimp profile: WM
  • Crimping range: 6 to 50 mm²
  • AWG range: AWG 10 to AWG 1
  • Conductor classes: 2, 5 and 6 to IEC 60228
  • Suitable for stranded and fine-stranded flexible conductors
  • Rotating profile disc with multiple die sizes
  • Dies non-interchangeable, integrated in head
  • Lever-operated mechanism for reduced hand force
  • No ratchet lock, no automatic release
  • Length: 430 mm
  • Weight incl. packaging: 1.65 kg
Optional Accessories
SKU Image Price VNĐ Product name & short description
180650- Cu tubular cable lug, ring shape, 0.75 mm², M3
€17.21
Cu tubular cable lug, ring shape, 0.75 mm², M3
Tubular cable lug, ring shape, conductor cross-section/connection bolt: 0.75 mm² / 3 mm Ø, 100 pieces
180650- Cu tubular cable lug, ring shape, 0.75 mm², M3
€17.21
Cu tubular cable lug, ring shape, 0.75 mm², M3
Tubular cable lug, ring shape, conductor cross-section/connection bolt: 0.75 mm² / 3 mm Ø, 100 pieces
180650- Cu tubular cable lug, ring shape, 0.75 mm², M3
€17.21
Cu tubular cable lug, ring shape, 0.75 mm², M3
Tubular cable lug, ring shape, conductor cross-section/connection bolt: 0.75 mm² / 3 mm Ø, 100 pieces
180650- Cu tubular cable lug, ring shape, 0.75 mm², M3
€17.21
Cu tubular cable lug, ring shape, 0.75 mm², M3
Tubular cable lug, ring shape, conductor cross-section/connection bolt: 0.75 mm² / 3 mm Ø, 100 pieces
180650- Cu tubular cable lug, ring shape, 0.75 mm², M3
€17.21
Cu tubular cable lug, ring shape, 0.75 mm², M3
Tubular cable lug, ring shape, conductor cross-section/connection bolt: 0.75 mm² / 3 mm Ø, 100 pieces
180650- Cu tubular cable lug, ring shape, 0.75 mm², M3
€17.21
Cu tubular cable lug, ring shape, 0.75 mm², M3
Tubular cable lug, ring shape, conductor cross-section/connection bolt: 0.75 mm² / 3 mm Ø, 100 pieces
180826- Cu tubular cable lug, ring shape, 400 mm², M12
€1,878.25
Cu tubular cable lug, ring shape, 400 mm², M12
Tubular cable lug, ring-shaped, conductor cross-section/ connection bolt 400 mm²/12 mm
180826- Cu tubular cable lug, ring shape, 400 mm², M12
€1,878.25
Cu tubular cable lug, ring shape, 400 mm², M12
Tubular cable lug, ring-shaped, conductor cross-section/ connection bolt 400 mm²/12 mm
180826- Cu tubular cable lug, ring shape, 400 mm², M12
€1,878.25
Cu tubular cable lug, ring shape, 400 mm², M12
Tubular cable lug, ring-shaped, conductor cross-section/ connection bolt 400 mm²/12 mm
180826- Cu tubular cable lug, ring shape, 400 mm², M12
€1,878.25
Cu tubular cable lug, ring shape, 400 mm², M12
Tubular cable lug, ring-shaped, conductor cross-section/ connection bolt 400 mm²/12 mm
180826- Cu tubular cable lug, ring shape, 400 mm², M12
€1,878.25
Cu tubular cable lug, ring shape, 400 mm², M12
Tubular cable lug, ring-shaped, conductor cross-section/ connection bolt 400 mm²/12 mm
183798- Tube cable lug for switchgear connections Cu, 25 mm², M6
€279.25
Tube cable lug for switchgear connections Cu, 25 mm², M6
Tubular cable lug for switchgear connections, SG series Cross-section 25 mm², M6
183798- Tube cable lug for switchgear connections Cu, 25 mm², M6
€279.25
Tube cable lug for switchgear connections Cu, 25 mm², M6
Tubular cable lug for switchgear connections, SG series Cross-section 25 mm², M6
183798- Tube cable lug for switchgear connections Cu, 25 mm², M6
€279.25
Tube cable lug for switchgear connections Cu, 25 mm², M6
Tubular cable lug for switchgear connections, SG series Cross-section 25 mm², M6
