Cable lug

Cu tubular cable lug, ring shape, 400 mm², M12

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Tubular cable lug, ring-shaped, conductor cross-section/ connection bolt 400 mm²/12 mm
SKU: 180826-
18 variants
Stock status: Varies by SKU
Contact us for pricing and availability.
Description

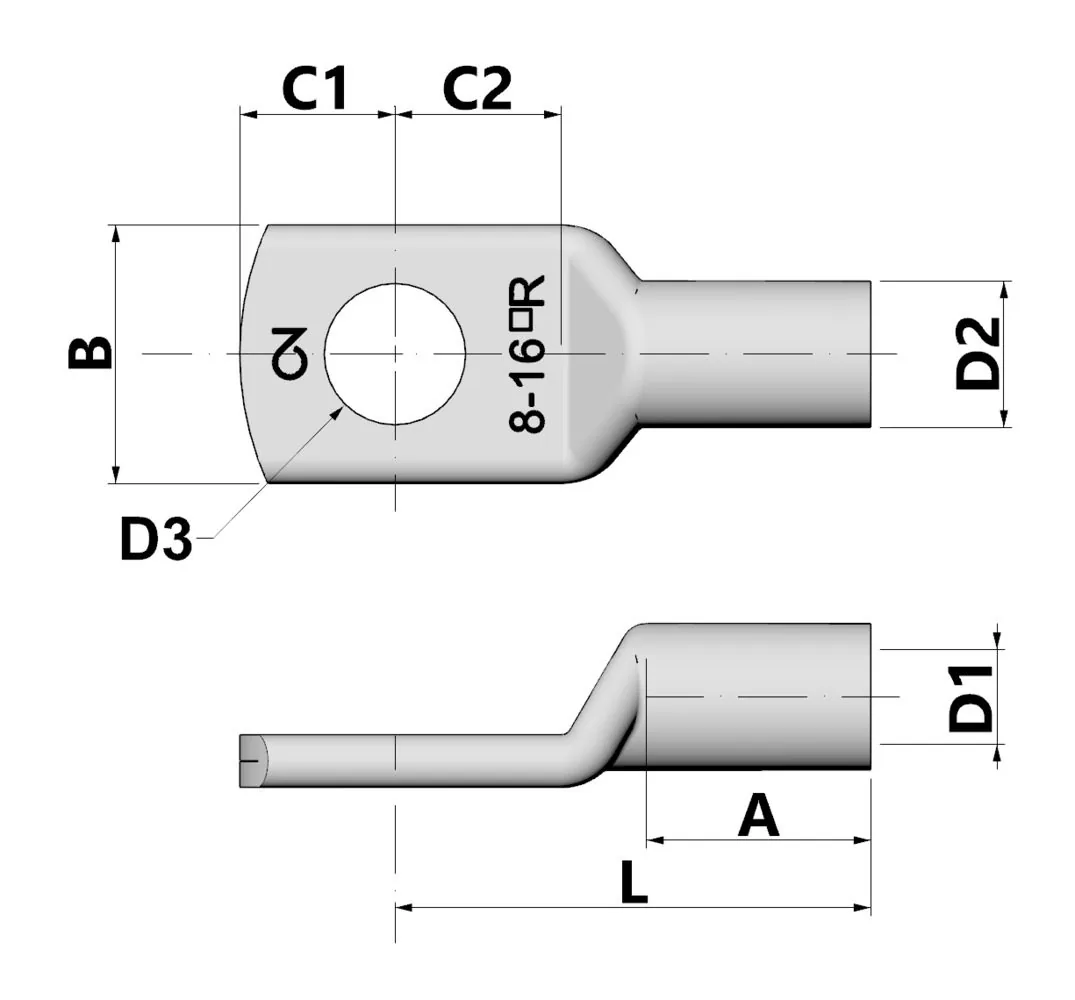

Tubular cable lug Cu, standard version. Technical data - Material: Cu-ETP according to DIN EN 13600 - Surface: electro tin plated, other surfaces on request - also suitable for fine stranded conductors according to IEC 228 tubular cable lugs Cu, standard version. Annealed to copper hardness F20. Cross-section: 400 mm²; stud-Ø: 12; W: 49; Øi: 27; Øe: 34; C1: 23; C2: 23; a: 44; L: 112; weight per 100pcs ~kg: 31,31; 7 mm: 2; crimp 5 mm: 4; PU/pc: 1.

EAN: 4021103808269

Price list & Ordering
Drag to reorder
SKU Code Stock Cross section Weight
180826 0.75 mm² 313.1g
180828 1.5 mm² 310.8g
180830 2.5 mm² 307.7g
180832 4 mm² 299.4g
180900 0.75 mm² 0.8g
180902 1.5 mm² 0.8g
180904 2.5 mm² 1.1g
180906 4 mm² 2.5g
180908 6 mm² 5g
180910 10 mm² 5.6g
180912 16 mm² 10g
180914 95 mm² 13.6g
180916 35 mm² 21.1g
180918 50 mm² 32.2g
180920 185 mm² 46.6g
180922 240 mm² 58.5g
180924 300 mm² 74g
180926 400 mm² 90g
