Cable lug

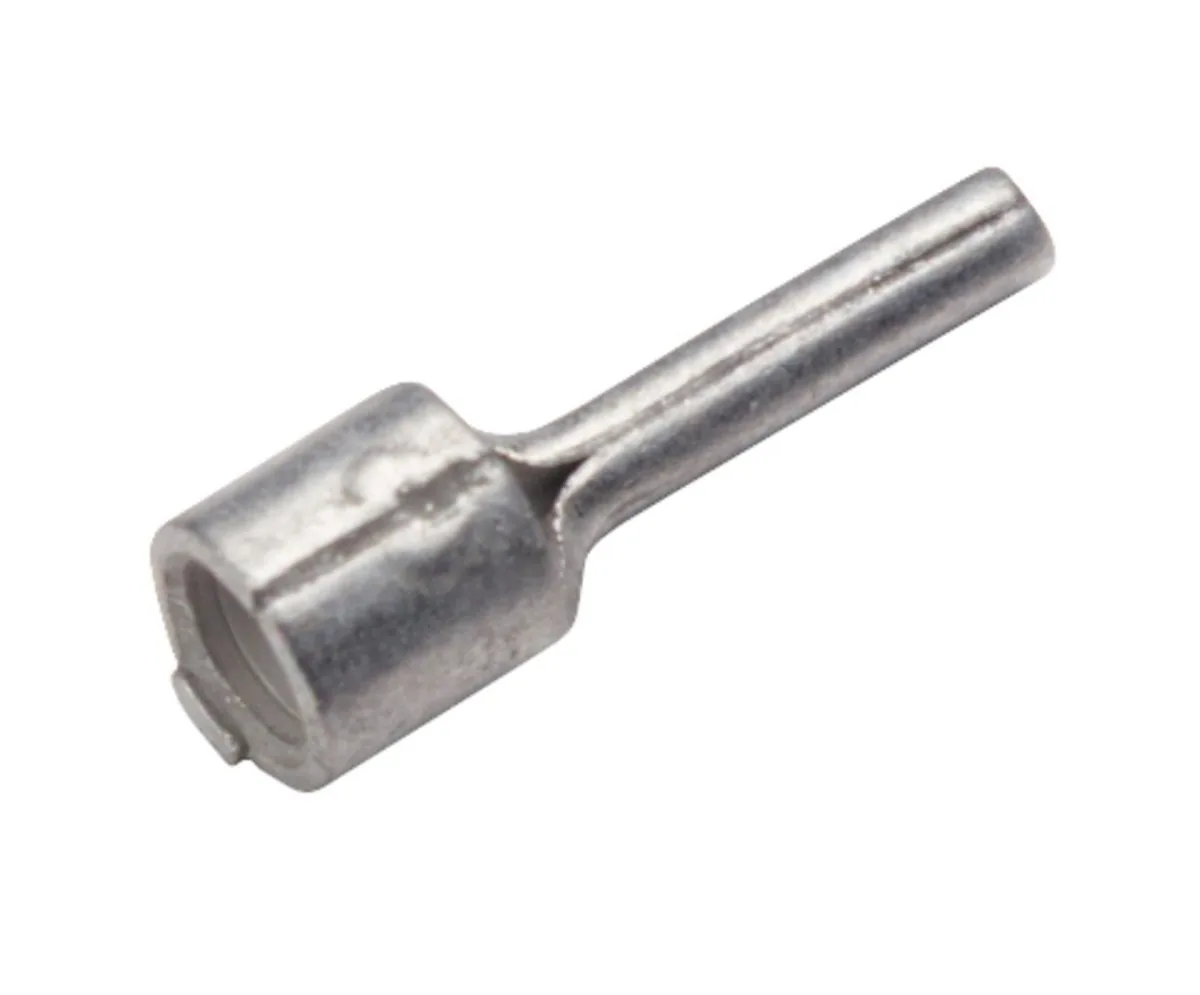

Pin-type crimp cable lug, Cu, standard version, conductor cross-section/pin 10 mm²/4.5 mm Ø,

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Crimp cable lug in pin form CU, DIN 46230 pin cable lug,conductor cross section/ pin-Ø 10 mm²/4,5 mm, 100 pieces
SKU: 180600
6 variants
€38.23 - €319.10
Stock status: Varies by SKU
Indicative price
Description

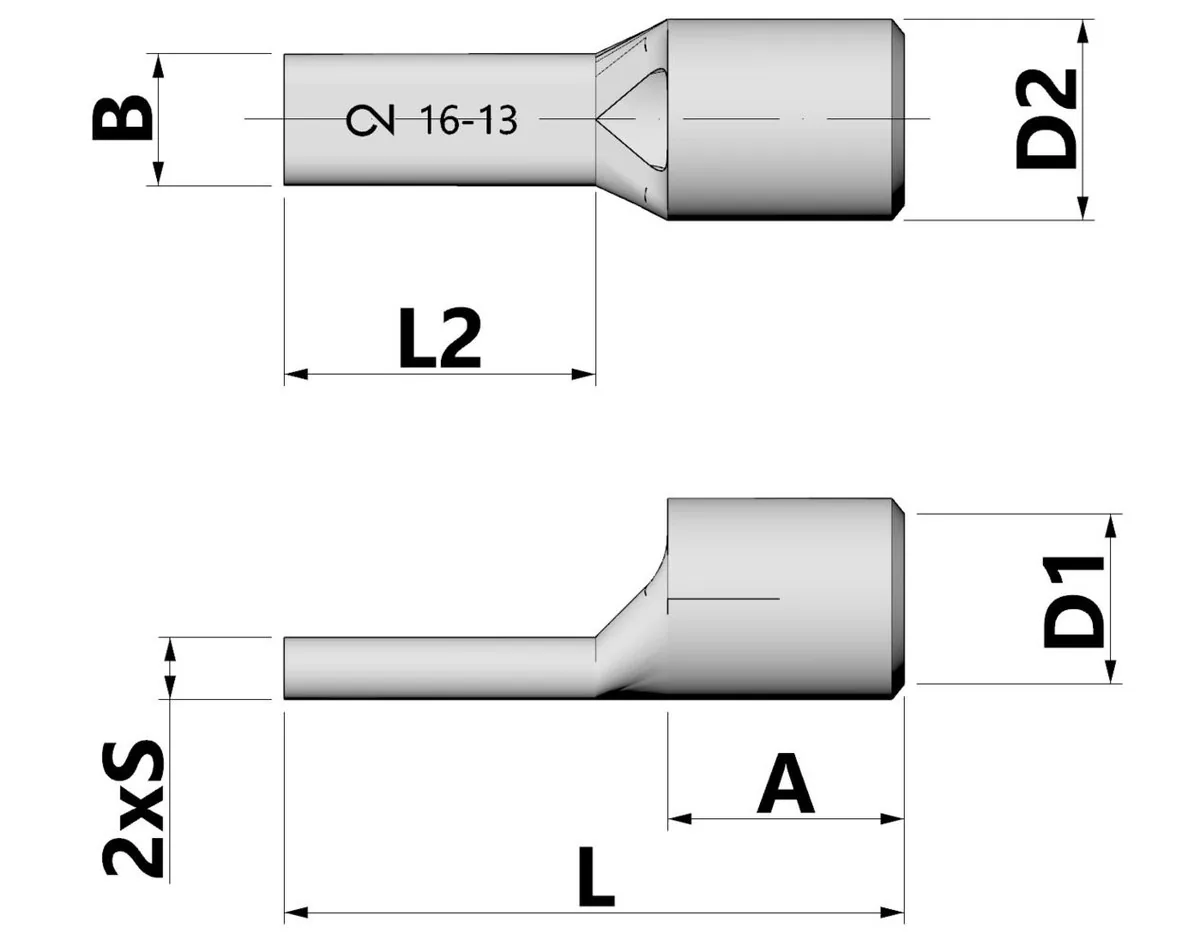

Crimp terminals, pin form Cu, 0.5-6 mm² according to DIN. Technical data; material: Cu-ETP according to DIN EN 13600; surface: electro tin plated ; sleeve seam hard soldered; for strain relieved connection. Cross section: 10; Pin-Ø: 4,5 mm; L1: 24,5; L2: 11; D1: 4,3; A: 10; B: 4,3; S: 1; Weight per 100pcs:~kg: 0,27; Packs per unit: 100

EAN: 4021103806005
