Cable lug

Insulated butt connector, 0.5 - 1 mm²

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Butt connector insulated 0.5 - 1 mm² red, insulation PA, 100 pieces
SKU: 180330-
8 variants
€1.95 - €64.61
Stock status: Varies by SKU
Indicative price
Description

Insulated butt connectors made of Cu-ETP in accordance with DIN EN 13600 provide a reliable connection for fine-stranded conductors. The electrolytically tinned surface provides corrosion protection and ensures a durable, stable electrical connection. The insulation is made of PA (polyamide, nylon), halogen-free.

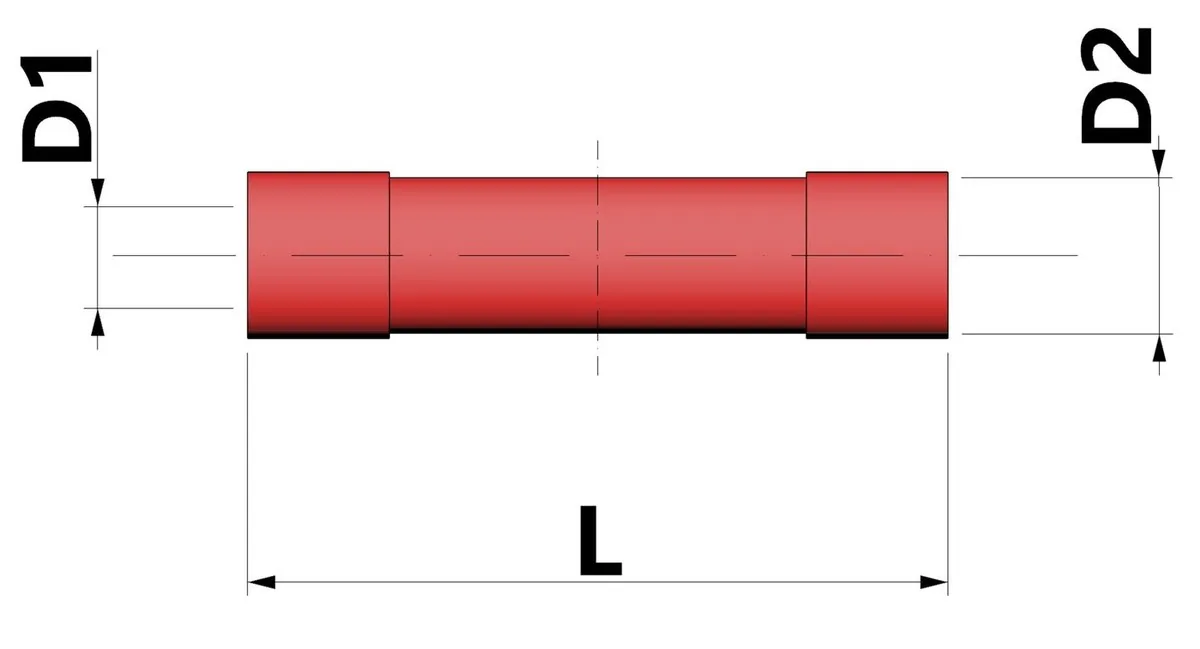

The butt connectors are designed for strain-relieved connections, Easy Entry allows for easy and quick insertion of the conductor, and they are not suitable for solid conductors. Temperature resistance: -60 °C to +105 °C, 600 V max. Technical data: Cross-section (mm²): 0.5 – 1 | Insulation color: red | D1: 1.7 | D2: 4.0 | L: 25.2 | Weight per 100 pieces: approx. 0.13 kg | PU/unit: 100.

EAN: 4021103803301
