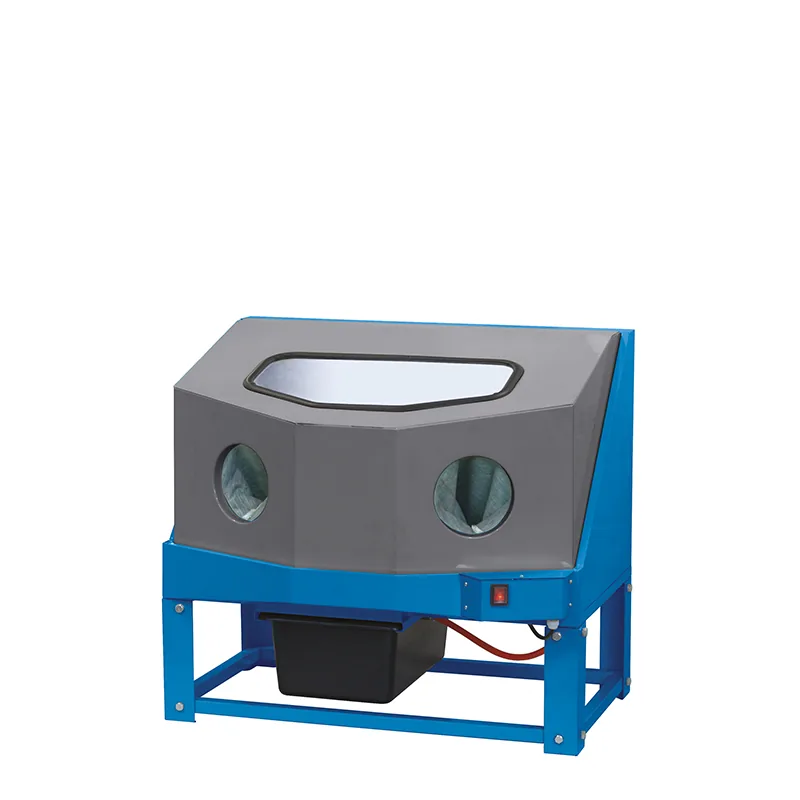

Bench Parts Washer FERVI 0203 with Pneumatic Cleaning Gun

Name: Bench Parts Washer FERVI 0203 with Pneumatic Cleaning Gun
Brand: FERVI
SKU: 0203
Price: 21056000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews)

Sold: 0

Imported from: Italy

Origin: Made in China

This bench unit cleans mechanical components using cold water or organic solvent. A Venturi pneumatic gun delivers 5 to 8 bar washing pressure. The tank holds 4 to 9 litres. Working area measures 765×560×380 mm. Power consumption is 30 W at 230 V 50 Hz. Net weight is 32 kg.

SKU: 0203

€707.53

Stock status: Out of stock

Indicative price

Download PDF catalog

Description

The bench part washer 0203 cleans engine parts, gears, shafts and bearings with cold water or solvent. A Venturi pneumatic gun generates high-pressure spray to remove oil, grease and metal chips. The working area spans 765×560×380 mm. The tank capacity adjusts from 4 to 9 litres. Air consumption averages 5 SCFM, equivalent to 145 litres per minute.

Overall dimensions are 770×595×700 mm. Net weight is 32 kg. The unit operates on 230 V 50 Hz mains and draws 30 W. Washing pressure ranges from 5 to 8 bar. The design suits workshop maintenance and production environments.

Construction and operating principle of the bench part washer

Tank and Venturi gun system

The tank holds 4 to 9 litres of cleaning fluid. Operators adjust the level to match component size and contamination. The Venturi gun uses compressed air to atomise and propel the liquid. Spray pressure reaches 5 to 8 bar. This force dislodges debris from narrow gaps and complex surfaces.

Tank capacity: 4 to 9 litres
Venturi pneumatic gun integrated
Washing pressure: 5 to 8 bar
Average air consumption: 5 SCFM (145 L/min)
Power: 30 W, 230 V 50 Hz

The working area measures 765×560×380 mm. This space accommodates medium-sized components such as cylinder heads, transmission housings and brake calipers. The open design allows easy placement and retrieval. Fluid drains back into the tank for recirculation.

Electrical and pneumatic specifications

The unit requires a 230 V 50 Hz single-phase supply. Power consumption is 30 W. Compressed air must deliver at least 5 SCFM at the gun inlet. Pressure should remain between 5 and 8 bar during operation. Lower pressure reduces cleaning efficiency. Higher pressure may damage delicate parts.

Voltage: 230 V 50 Hz
Power: 30 W
Air consumption: 5 SCFM (145 L/min)
Operating pressure: 5 to 8 bar

Net weight is 32 kg. Gross weight including packaging is 33 kg. Packaging dimensions are 780×620×550 mm. The compact footprint fits standard workshop benches. Operators can move the unit between stations when necessary.

Common applications for mechanical component cleaning

Workshops use this washer to clean engine blocks, pistons, connecting rods and valve trains after disassembly. Solvent dissolves carbonised oil and varnish. The Venturi gun reaches recesses in cylinder bores and oil galleries. Transmission gears, synchromesh hubs and differential carriers benefit from high-pressure spray. Bearing races and seal grooves require thorough cleaning before reassembly. The adjustable tank level conserves solvent when processing small batches. Cold water suits parts that tolerate aqueous detergents. Organic solvents handle heavy grease and cutting fluids.

Technical data and dimensions

Overall dimensions are 770×595×700 mm. The working area measures 765×560×380 mm. Tank capacity ranges from 4 to 9 litres. Washing pressure operates between 5 and 8 bar. Average air consumption is 5 SCFM, equal to 145 litres per minute. Electrical power is 30 W at 230 V 50 Hz. Net weight is 32 kg. Gross weight is 33 kg. Packaging dimensions are 780×620×550 mm.

Specifications

Overall dimensions: 770×595×700 mm
Working area: 765×560×380 mm
Tank capacity: 4 to 9 litres
Washing pressure: 5 to 8 bar
Average air consumption: 5 SCFM (145 L/min)
Power: 30 W
Voltage: 230 V 50 Hz
Net weight: 32 kg
Gross weight: 33 kg
Packaging dimensions: 780×620×550 mm
