Bench drilling machine

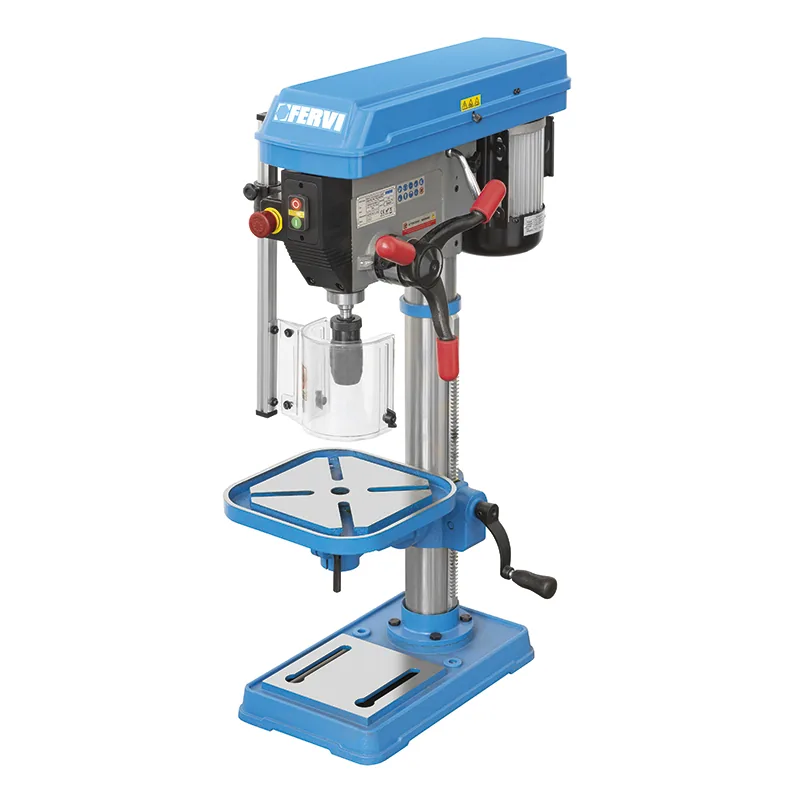

FERVI 0750 bench drill press with drive belt, MT2

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Italy

Bench drill press with drive belt, MT2, steel Ø20 mm with pre-drilling. Motor 230 V 50 Hz 0,75 kW, net weight 57 kg.

SKU: 0750
€1,171.90
Stock status: Out of stock
Indicative price
Description

FERVI 0750 bench drill press with drive belt, MT2. Bench drill press with drive belt, MT2, steel Ø20 mm with pre-drilling. Motor 230 V 50 Hz 0,75 kW, net weight 57 kg.

FERVI 0750 bench drill press with drive belt, MT2


Specifications

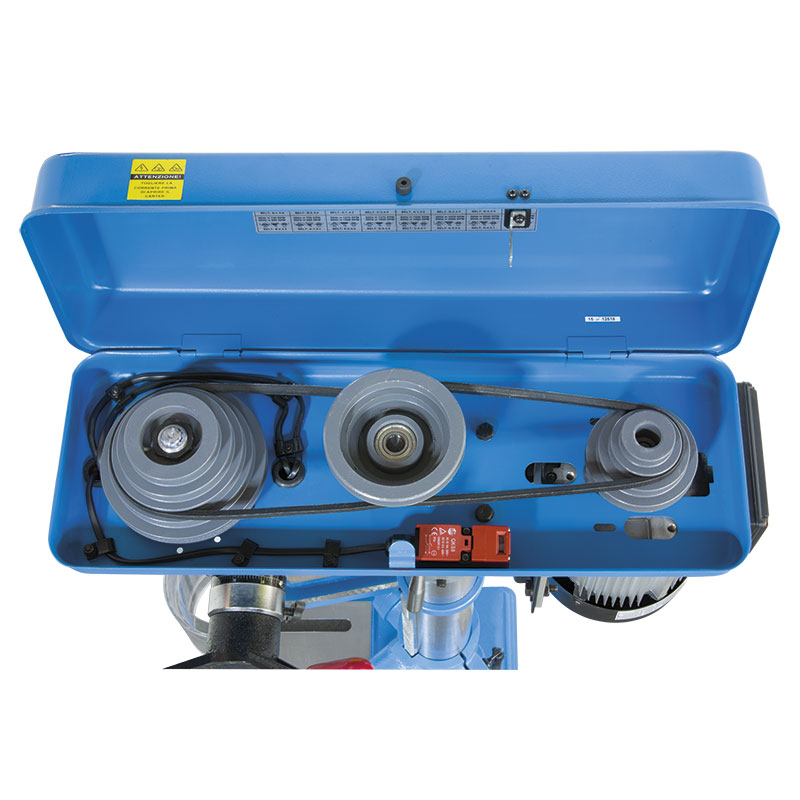

  • Bench drill press, belt-driven transmission
  • Vertical spindle ensures holes perpendicular to table
  • Max drilling capacity in cast iron: Ø25 mm, pre-drilled
  • Max drilling capacity in S235JR steel: Ø20 mm, pre-drilled
  • Continuous drilling capacity: Ø16 mm
  • Spindle taper: MT2
  • Chuck capacity: 1–16 mm, B18 mount
  • Spindle speeds: 16 steps, 220–2840 rpm
  • Spindle stroke: 80 mm
  • Quill diameter: Ø47 mm
  • Column diameter: Ø80 mm
  • Spindle centre to column face: 175 mm
  • Spindle nose to table: 420 mm
  • Spindle nose to base: 600 mm
  • Table: 290 x 290 mm, swivelling
  • Table tilt: ±45°
  • T-slot width: 14 mm for vice or workpiece clamping
  • Base plate: 460 x 275 mm
  • Motor: 230 V, 50 Hz, 0.75 kW
  • Control circuit: separate 24 V low voltage
  • Machine height: 990 mm
  • Supplied with self-locking chuck 1–16 mm B18
  • Supplied with MT2/B18 taper arbor
  • Compatible floor-standing version available
  • Overall size: 300 x 630 x 990 mm (H)
  • Packing size: 900 x 570 x 335 mm (H)
  • Net weight: 57 kg
  • Gross weight: 61.5 kg
