VDE torque screwdriver set, 9-piece

Name: VDE torque screwdriver set, 9-piece
Brand: CIMCO
SKU: 114806
Price: 8605000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Germany

Origin: Made in Germany

VDE torque screwdriver set, 9-piece, tightening torque 1 - 5 Nm setting level 0.02 Nm, 205 mm

SKU: 114806

8.605.000 đ

Stock status: Hết hàng

Price includes VAT

Description

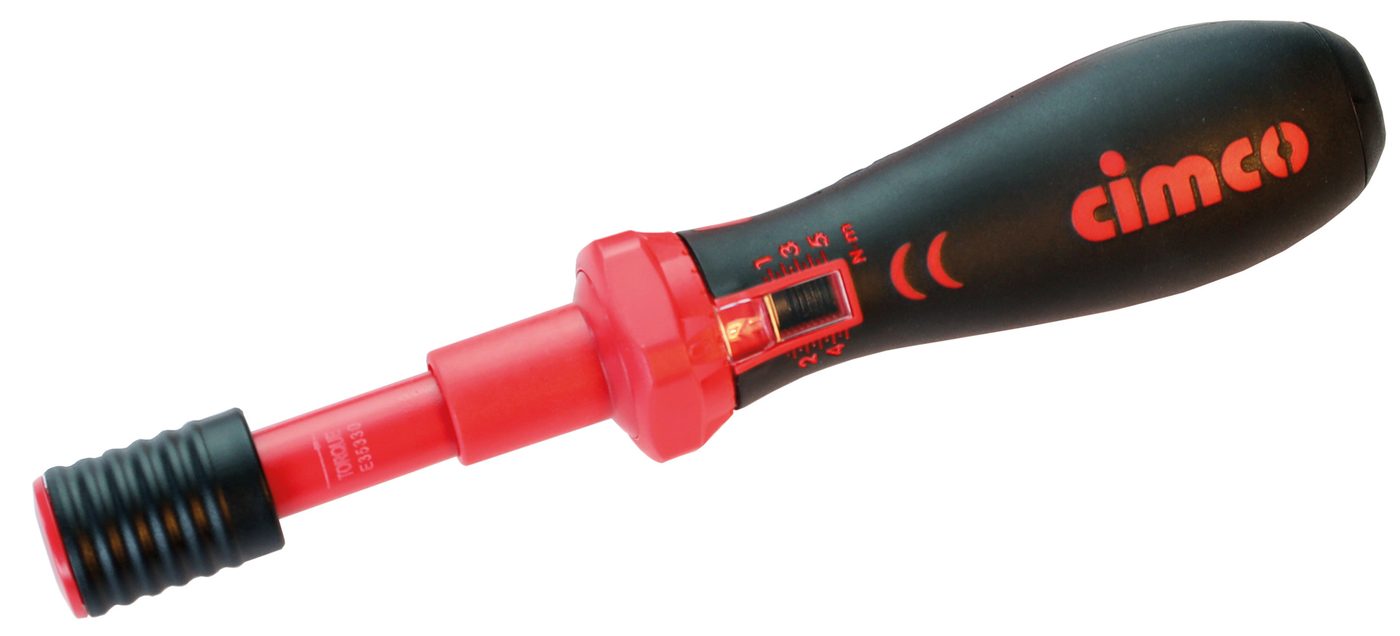

VDE Torque Screwdriver Set, 9-piece. Torque adjustment is performed without additional tools and can be changed using its secure locking mechanism. Adjustment increments of 0.02 Nm; torque is read through a transparent scale window. When the set torque is reached, a distinct audible and tactile click signal is generated. The torque limit engages when tightening as well as when loosening the screw.

The two-component handle features an interchangeable blade holder and locking system; interchangeable blades are fully insulated and have a burnished blade tip. The screwdriver handle and interchangeable blades are insulated up to 1,000 V AC in accordance with IEC 60900 and GS-certified.

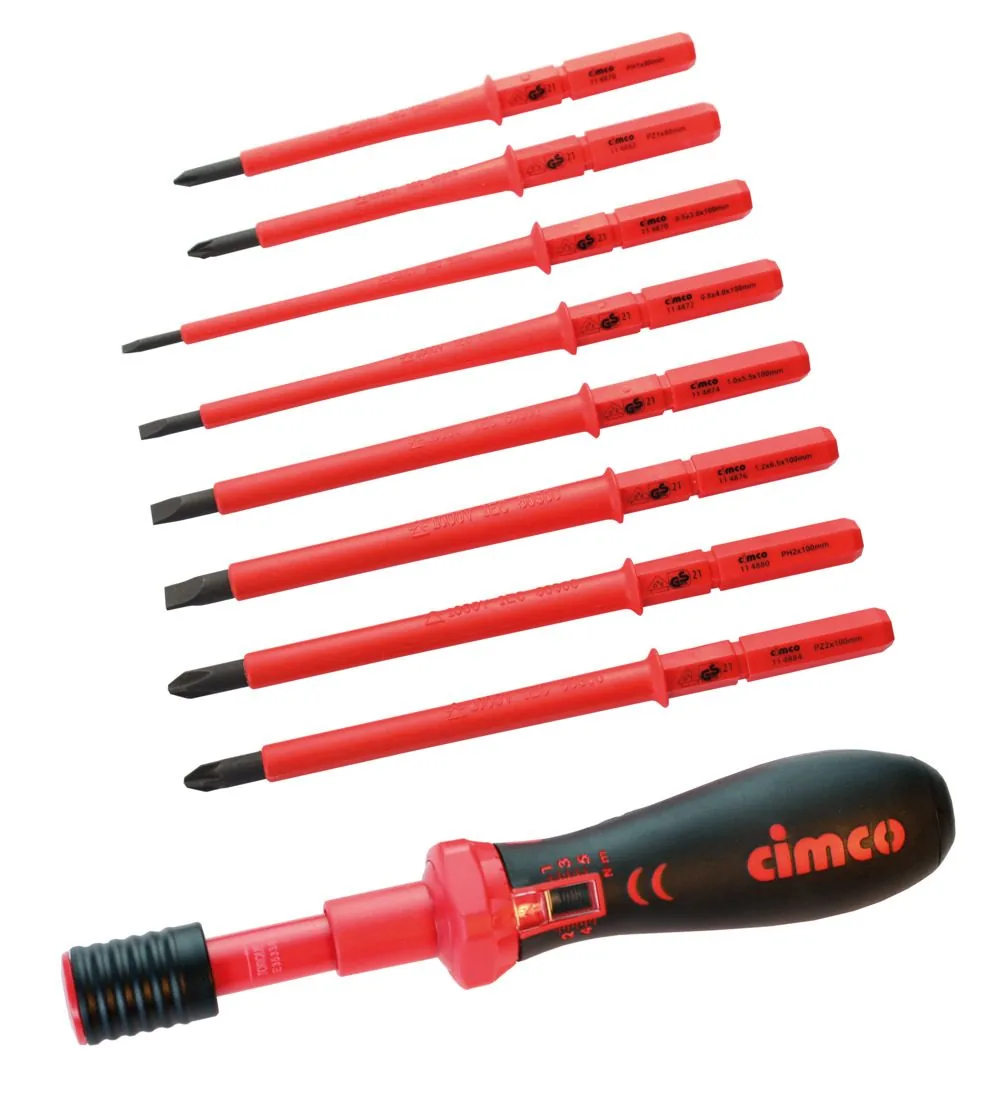

Scope of delivery: 1 each of: interchangeable blades for slotted screws, 3.0 x 0.4 x 100 mm, 4.0 x 0.8 x 100 mm, 5.5 x 1.0 x 100 mm, 6.5 x 1.2 x 100 mm, interchangeable blades for Phillips screws PH 1

PH2 x 100 mm, PZ
PZ 2 x 100 mm, VDE screwdriver handle, nylon pouch. Tightening torque 1-5 Nm, adjustment increment 0.02 Nm, 205 mm

EAN: 4021103148068

Specifications

Bộ gồm 9 món: 1 tay cầm tua vít, 7 lưỡi thay thế, 1 túi nylon
Điều chỉnh mô-men: 1 – 5 Nm
Bước điều chỉnh: 0,02 Nm
Chiều dài tổng thể: 205 mm
Lưỡi thay thế cho vít dẹt: 3.0 x 0.4 x 100 mm, 4.0 x 0.8 x 100 mm, 5.5 x 1.0 x 100 mm, 6.5 x 1.2 x 100 mm
Lưỡi thay thế cho vít bake: PH 1 - PH2 x 100 mm, PZ - PZ 2 x 100 mm
Thang đo mô-men trong suốt
Khóa an toàn khi điều chỉnh mô-men
Phát tín hiệu âm thanh và cảm giác khi đạt mô-men cài đặt
Lưỡi thay thế cách điện hoàn toàn, đầu lưỡi xử lý chống mài mòn
Cách điện đến 1.000 V AC theo IEC 60900, chứng nhận GS

Optional Accessories

SKU	Price VNĐ	Product name & short description
114870	280.000	Interchangeable blade for VDE torque screwdriver, slot 3.0 x 100 mm Interchangeable blade for VDE torque screwdriver, (art. no. 114806)
114872	303.000	Interchangeable blade for VDE torque screwdriver, slot 4.0 x 100 mm Interchangeable blade for VDE torque screwdriver, slot 4.0 x 100 mm
114874	355.000	Interchangeable blade for VDE torque screwdriver, slot 5.5 x 100 mm Interchangeable blade for VDE torque screwdriver, slot 5.5 x 100 mm
114876	347.000	Interchangeable blade for VDE torque screwdriver, slot 6.5 x 100 mm Interchangeable blade for VDE torque screwdriver, slot 6.5 x 100 mm
114878	303.000	Interchangeable blade for VDE torque screwdriver, PH 1 x 100 mm Interchangeable blade for VDE torque screwdriver, PH 1 x 100 mm
114880	313.000	Interchangeable blade for VDE torque screwdriver, PH 2 x 100 mm Interchangeable blade for VDE torque screwdriver, PH 2 x 100 mm
114882	303.000	Interchangeable blade for VDE torque screwdriver, PZ 1 x 100 mm Interchangeable blade for VDE torque screwdriver, PZ 1 x 100 mm
114884	325.000	Interchangeable blade for VDE torque screwdriver, Phillips 2 x 100 mm Interchangeable blade for VDE torque screwdriver, Phillips 2 x 100 mm
