Hydraulic presses

Pneumatic hydraulic shop press 75 ton FERVI P001-75, foot control, two-speed lever

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Italy
Floor-standing hydraulic shop press, 75 ton, pneumatic servo pump with foot pedal control and two-speed manual lever. Mobile piston on a trolley, work table raised by winch. Working area 800 x 279 x 850 mm, ram stroke 250 mm, cylinder 125 mm, air supply 0.75 to 0.85 MPa, overall size 1140 x 800 x 1896 mm. Genuine FERVI, made in Italy.
SKU: P001-75
€7,418.11
Stock status: Out of stock
Indicative price
Description

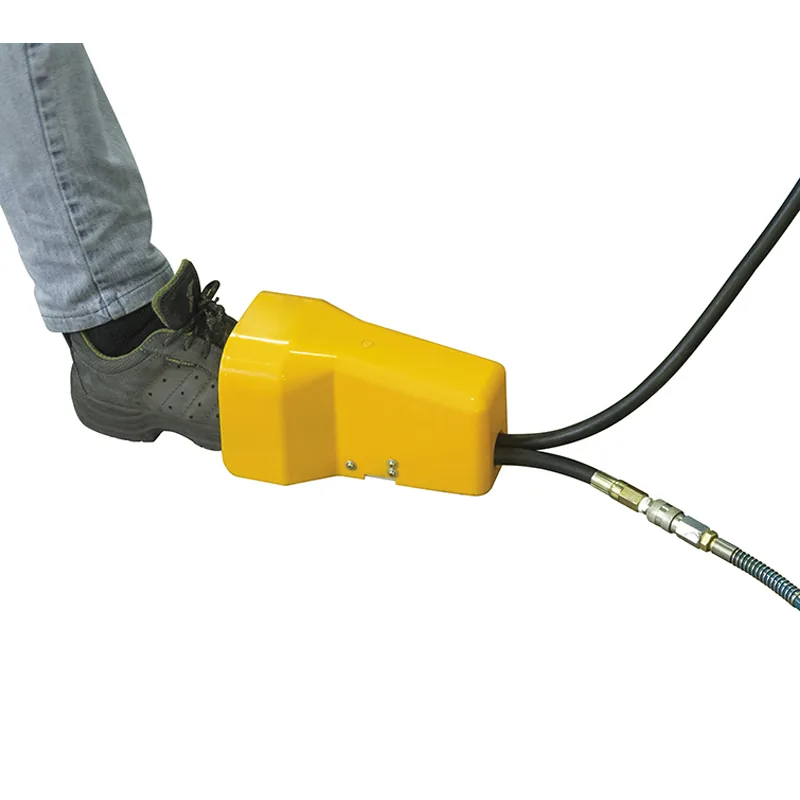

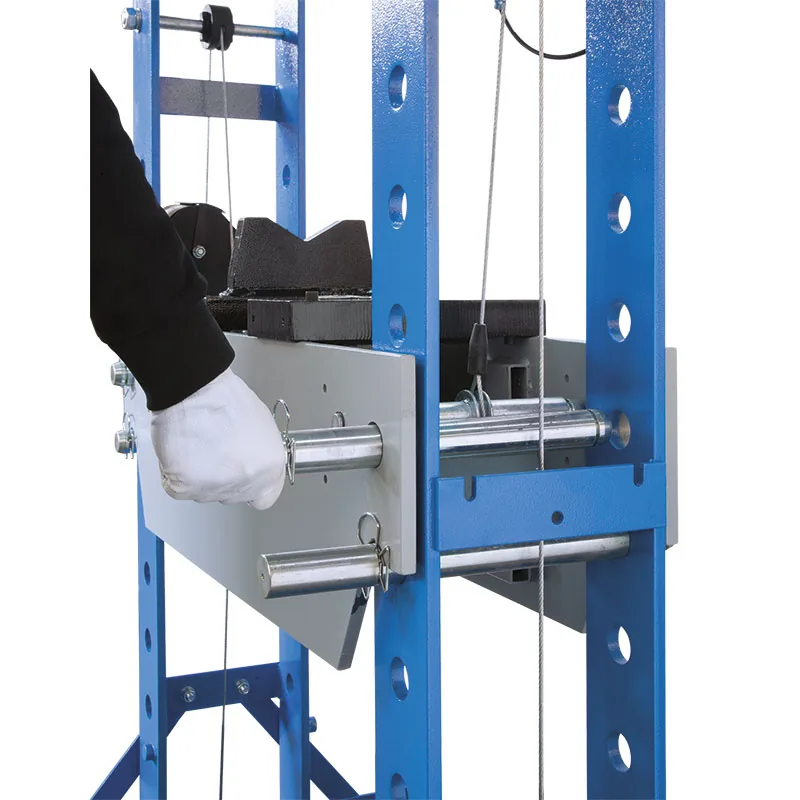

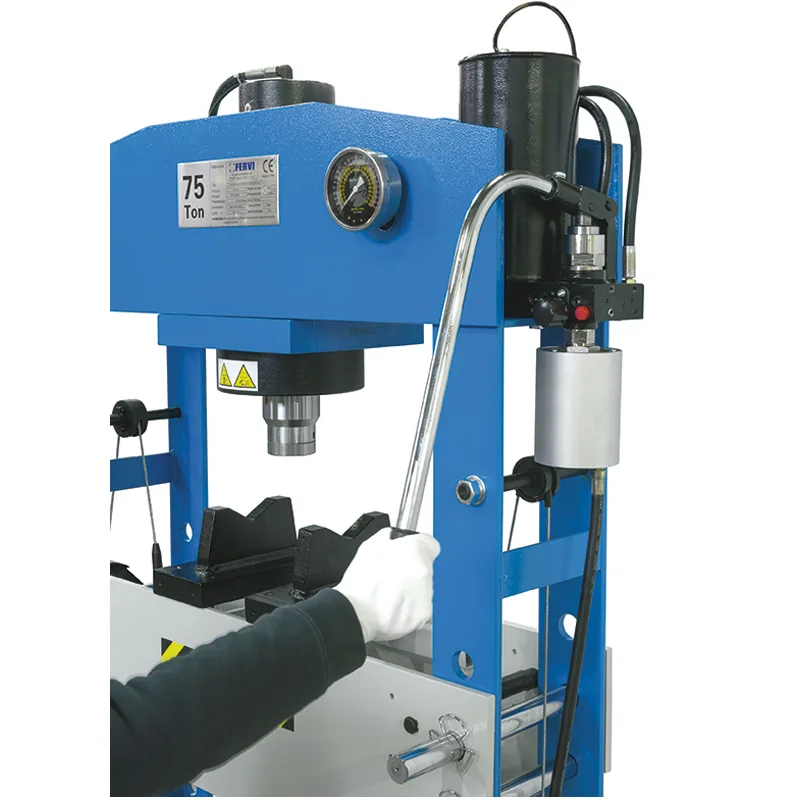

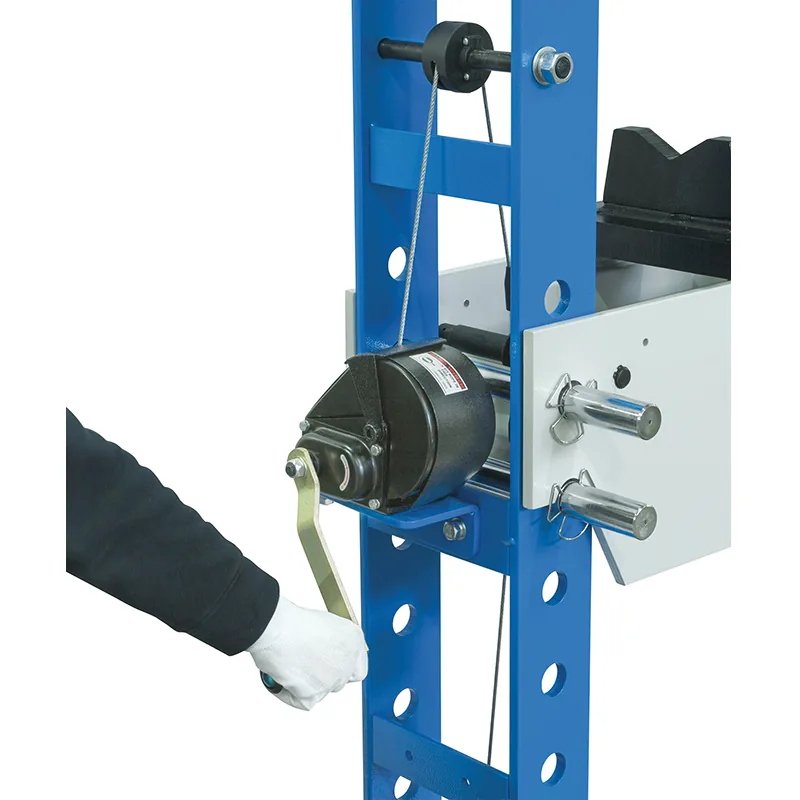

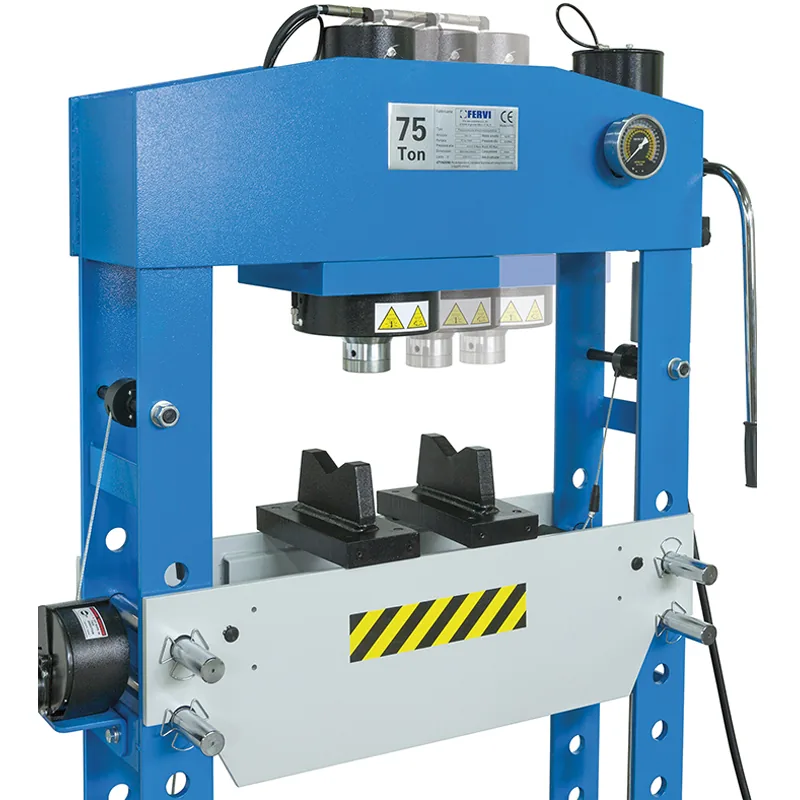

Pneumatic hydraulic shop press 75 ton FERVI P001-75 belongs to the floor-standing press range driven by a pneumatic servo pump, with a maximum force of 75,000 kg and a foot pedal control that leaves both hands free to hold the workpiece. It has a mobile piston on a trolley, a winch for raising and lowering the work table, and a two-speed manual lever: fast approach, then slow pressing once the ram touches the part.

The 800 x 279 x 850 mm working area suits large bearings, bushes, pins and shafts in machinery repair shops, car workshops and general engineering shops. Because it runs on compressed air at 0.75 to 0.85 MPa, it needs no three-phase supply. See the other models in our range of hydraulic presses.

Pneumatic hydraulic shop press 75 ton FERVI P001-75

Cylinder diameter 125 mm, ram diameter 78 mm, ram stroke 250 mm. Overall dimensions 1140 x 800 x 1896 mm, net weight 460 kg, gross weight 471 kg, packaging 1100 x 340 x 2090 mm.

SpecificationValue
Capacity75000 kg
Working area800 x 279 x 850h mm
Cylinder ø125 mm
Ram ø78 mm
Ram stroke250 mm
Working pressure0,75 ÷ 0,85 MPa
Dimensions1140 x 800 x 1896h mm
Net weight460 kg
Gross weight471,00 kg
Packaging dimensions1100x340x2090 h mm
EAN Code8012667282943

Datasheet PDF
