Electro-hydraulic press 100 ton FERVI P001-100EP230V, 230 V motor, chain-lift table

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Italy
Floor-standing electro-hydraulic press, 100 ton, 230 V 1.5 kW electric pump, 60 l oil tank. Wheeled piston assembly, chain-lifted work table, single-hand lever control. Working area 800 x 350 x 690 mm, ram stroke 300 mm, cylinder 180 mm, working pressure 38.5 MPa, overall size 1300 x 950 x 2000 mm. Genuine FERVI, made in Italy.
SKU: P001-100EP230V
€12,167.61
Stock status: Out of stock
Indicative price
Description

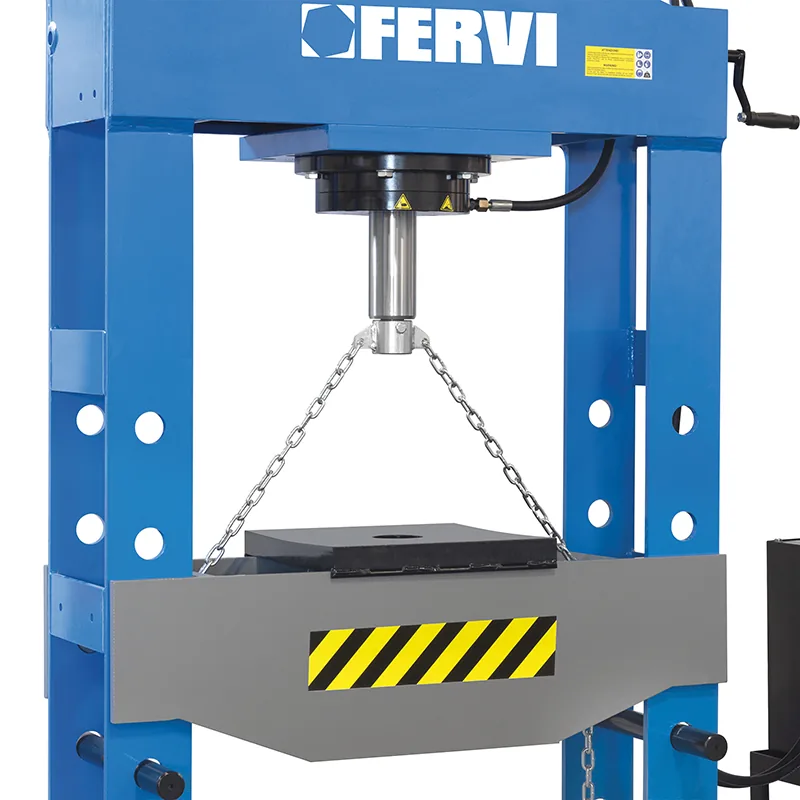

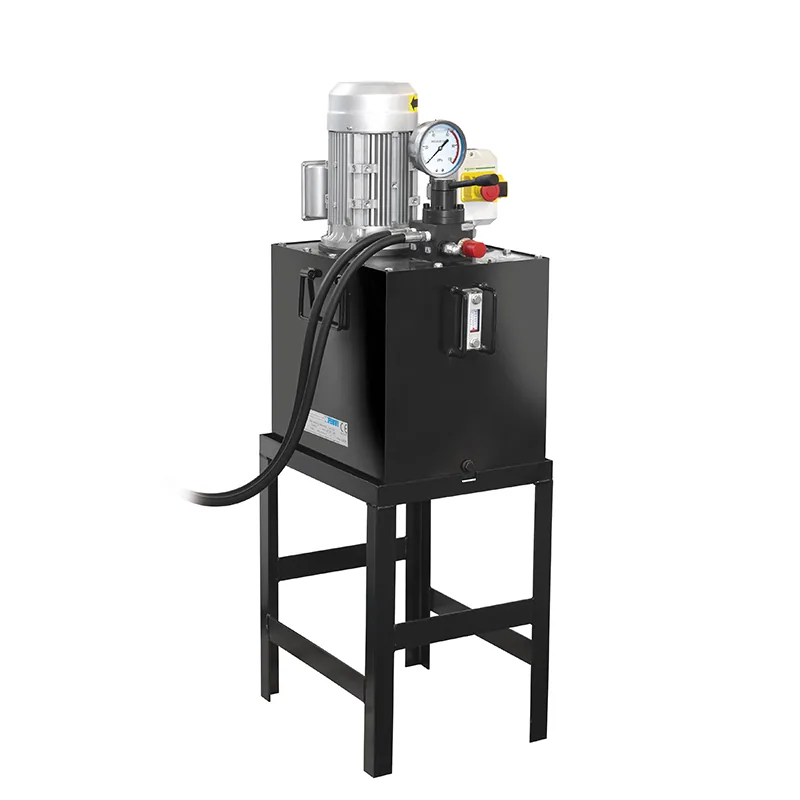

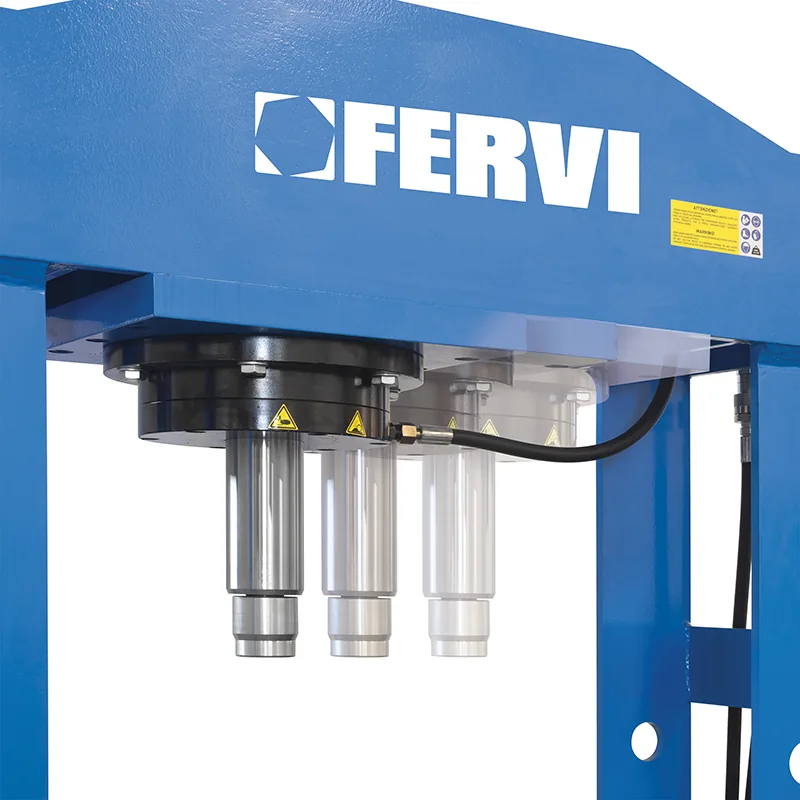

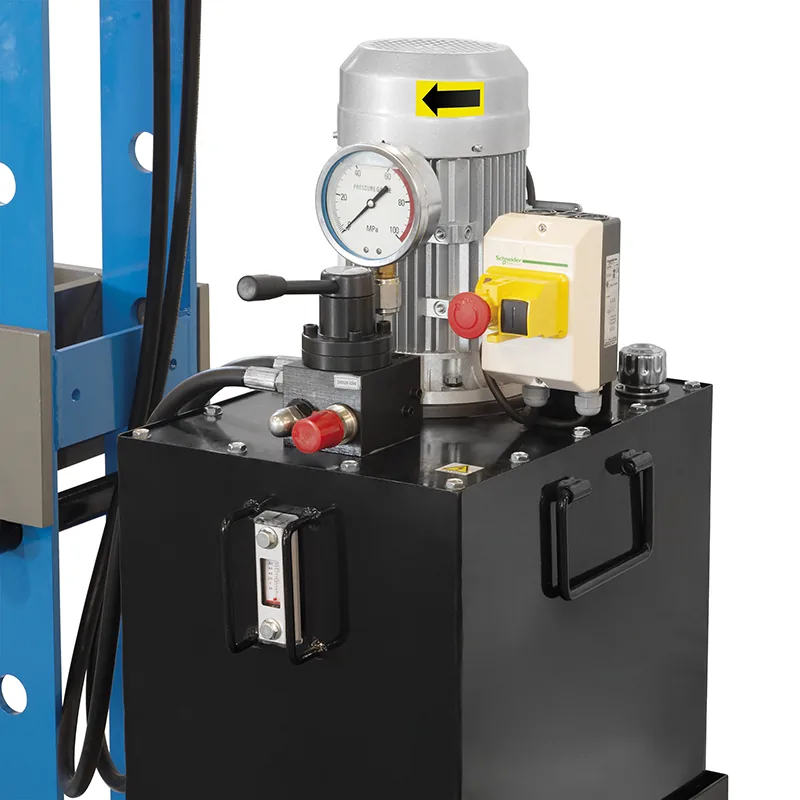

Electro-hydraulic press 100 ton FERVI P001-100EP230V belongs to the floor-standing press range driven by an electric pump, with a maximum force of 100,000 kg for workshops and garages handling heavy parts. It uses a single-hand lever control, a piston assembly that rolls along the crossbeam on wheels, and a work table lifted by a chain mechanism, so one operator can change the working height alone. Motor 230 V 50-60 Hz, 1.5 kW, oil tank 60 l.

The 800 x 350 x 690 mm working area takes large bearings, bushes, gears, pins and heavy leaf-spring bolts. Typical jobs are pressing bearings in and out, straightening shafts and pressing bushes and pins in industrial repair shops, truck garages and fabrication shops. See the other models in our range of hydraulic presses.

Electro-hydraulic press 100 ton FERVI P001-100EP230V

Cylinder diameter 180 mm, ram diameter 81 mm, ram stroke 300 mm, working pressure 38.5 MPa. Maximum continuous use 10 minutes per cycle. Overall dimensions 1300 x 950 x 2000 mm, net weight 785 kg.

SpecificationValue
Capacity100000 kg
Working area800 x 350 x 690h mm
Cylinder ø180 mm
Ram ø81 mm
Ram stroke300 mm
Working pressure38,5 MPa
Dimensions1300 x 950 x 2000h mm
Net weight785 kg
Motor230 V 50-60 Hz 1,5 kW
Tank capacity60 l
Usage timeMax 10 min continuous use
EAN Code8012667420307
Gross weight803,00 kg
