CROSS WORKING TABLE FERVI T013 WITH COOLANT CHANNELS

Name: CROSS WORKING TABLE FERVI T013 WITH COOLANT CHANNELS
Brand: FERVI
SKU: T013
Price: 60184000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Italy

Origin: Made in China

CROSS WORKING TABLE FERVI T013 WITH COOLANT CHANNELS features a robust cast iron construction, a working surface of 210 x 730 mm, and dual-axis travel of 160 x 360 mm. Equipped with adjustable handwheel graduation at 0.05 mm increments, it ensures precise positioning. The 14 mm slot and integrated coolant channels support efficient clamping and machining, while wooden box packaging facilitates safe transport and storage.

SKU: T013

60.184.000 đ

Stock status: Hết hàng

Price includes VAT

Download PDF catalog

Description

CROSS WORKING TABLE FERVI T013 WITH COOLANT CHANNELS is engineered for precision positioning and reliable performance in mechanical workshops. The table is designed with integrated coolant channels, supporting effective chip removal and temperature control during machining. Its cast iron construction delivers stability and vibration resistance, essential for consistent results in demanding environments. The working surface measures 210 x 730 mm, accommodating a wide range of workpieces and setups.

Adjustable handwheel graduation at 0.05 mm allows for accurate and repeatable adjustments along both axes. The table's dual-axis travel of 160 x 360 mm provides flexibility for various operations, including milling and drilling. A 14 mm slot enables secure clamping of fixtures or components, while the overall height of 155 mm ensures compatibility with many machine types. With a net weight of 70 kg, the table maintains stability during use, and the gross weight of 72.5 kg includes robust wooden box packaging for protection during transport.

All technical parameters are clearly specified, making it straightforward for users to select and integrate the table into their workflow. The combination of coolant channels, precise graduations, and solid construction makes this cross working table suitable for tasks requiring high accuracy and repeatability.

CROSS WORKING TABLE FERVI T013 WITH COOLANT CHANNELS

Technical Specifications and Features

The CROSS WORKING TABLE FERVI T013 WITH COOLANT CHANNELS is built for accurate movement and secure workpiece positioning. Its technical features are tailored to support a range of machining applications, with a focus on durability and precision.

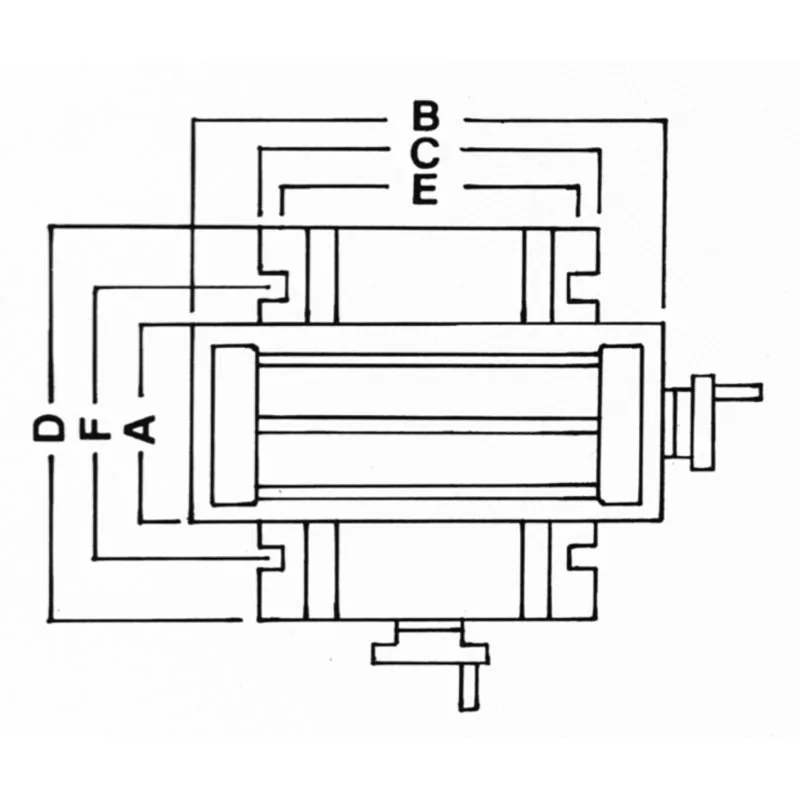

Working surface (A x B): 210 x 730 mm
Dimension C: 315 mm
Dimension D: 395 mm
Dimension E: 240 mm
Dimension F: 300 mm
Slot width: 14 mm
Height: 155 mm
Travel (X x Y): 160 x 360 mm
Handwheel graduation: 0.05 mm
Net weight: 70 kg
Gross weight: 72.5 kg
Packaging dimensions: 920 x 500 x 210 mm
Material: Cast iron
Packing: Wooden box
EAN Code: 8012667199555

Each technical parameter is provided to assist with integration and planning in workshop settings. The table's dimensions and travel range make it compatible with a variety of machines and setups, while the handwheel graduation supports fine adjustments for precision work.

Construction and Adjustment Mechanism

The table is constructed from cast iron, ensuring rigidity and vibration damping. The handwheel adjustment mechanism features clear graduations for accurate incremental movement, supporting repeatable setups and fine control during machining.

Material: Cast iron
Handwheel graduation: 0.05 mm
Integrated coolant channels
Dual-axis movement

This construction supports stable operation and long-term durability, while the integrated coolant channels help maintain optimal cutting conditions by managing heat and debris.

Common Applications

CROSS WORKING TABLE FERVI T013 WITH COOLANT CHANNELS is commonly used in mechanical workshops, manufacturing plants, and machining centers. It is suitable for precise workpiece positioning on milling machines, drilling machines, and other equipment requiring accurate two-axis movement and secure clamping.

Catalog Technical Content

The following technical details are provided directly from the official catalog for reference and procurement:

Model: T013
Cross working table with coolant channels
Adjustable handwheel graduation
Working surface: 210 x 730 mm
Travel: 160 x 360 mm
Slot: 14 mm
Height: 155 mm
Net weight: 70 kg
Gross weight: 72.5 kg
Packing: Wooden box
Material: Cast iron
Packaging dimensions: 920 x 500 x 210 mm
EAN Code: 8012667199555

All specifications are provided for accurate selection and integration into workshop environments. For further technical details, refer to the downloadable catalog.

Specifications

Working surface (A x B): 210 x 730 mm
Dimension C: 315 mm
Dimension D: 395 mm
Dimension E: 240 mm
Dimension F: 300 mm
Slot width: 14 mm
Height: 155 mm
Travel (X x Y): 160 x 360 mm
Handwheel graduation: 0.05 mm
Net weight: 70 kg
Gross weight: 72.5 kg
Packaging dimensions: 920 x 500 x 210 mm
Material: Cast iron
Packing: Wooden box
EAN Code: 8012667199555
