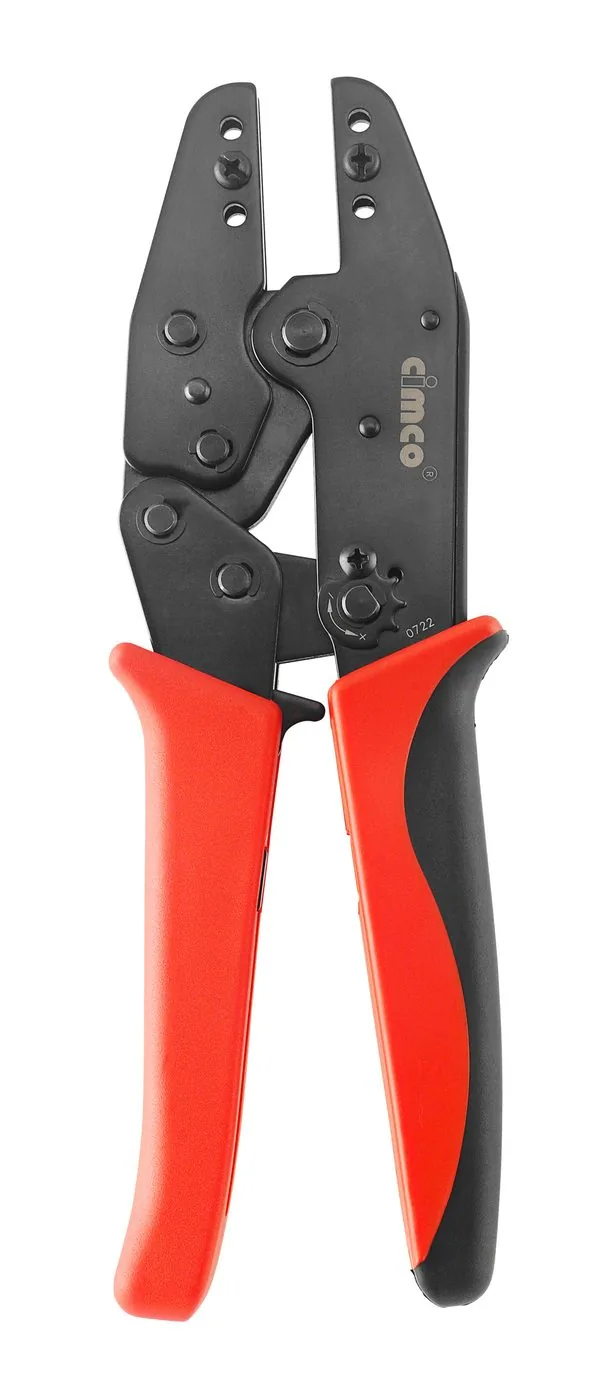

One-hand system crimping pliers, PROFI CRIMP pliers body

Name: One-hand system crimping pliers, PROFI CRIMP pliers body
Brand: CIMCO
SKU: 106112
Price: 4079000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Germany

One Hand System Crimping Pliers Professional Crimping Pliers Body

SKU: 106112

4.079.000 đ

Stock status: Hết hàng

Price includes VAT

Description

One-hand system crimping pliers Lever-operated crimping pliers with ratchet mechanism and pressure point release with a variety of interchangeable crimping profile inserts fixed by two fastening screws. The ergonomically shaped crimping pliers are easy and handy to use. The integrated automatic ratchet is triggered by the lever action of the handle. Adjustable positive release guarantees optimum crimping results. All inserts are made of carbon tool steel. The 17 different profiles are suitable for almost all crimping of cable connectors. Pliers body PROFI-CRIMP.

EAN: 4021103061121

Optional Accessories

SKU	Price VNĐ	Product name & short description
102000	12.839.000	Standard crimping tool set Standard crimping pliers set, crimping pliers with 4 interchangeable crimping profile inserts
106218	2.038.000	Press profile insert loose, hexagonal pressing, BNC/TNC coaxial plug Press profile inserts loose, hexagonal pressing, BNC/TNC coaxial connectors RG 55, RG 58, RG 59, RG 62, RG 174, RG 8279, LWL (3A4), length 230 mm
106211	2.170.000	Press profile insert loose for unshielded modular plugs, 6-pin Press profile inserts loose for unshielded modular plugs, 6-pin, Rj 11, RJ 12
106212	2.170.000	Press profile insert loose for unshielded modular plugs, 8-pin Press profile inserts loose for unshielded modular plugs, 8-pin, Rj 45
106213	1.969.000	Press profile insert, loose, round crimping, for fiber optic connectors with round crimping Crimping profile inserts loose for crimping pliers set, for fiber optic connectors with round crimping, length 230 mm
106214	1.969.000	Press profile insert, loose, hexagonal crimping, for fiber optic connectors with hexagonal crimping Crimping profile inserts loose for crimping pliers set, for fiber optic connectors with hexagonal crimping,, length 230 mm
106215	3.974.000	Compression profile insert loose for shielded modular plugs, 8-pin, HIROSE type Press profile inserts loose for shielded modular plugs, 8-pole, RJ 45 CAT.5, type HIROSE length 230 mm
106217	3.974.000	Compression profile insert loose for shielded modular plugs, 8-pin, CIMCO type Crimping profile inserts Cimco loose for crimping pliers set, shielded modular plugs, 8-pole, RJ 45 CAT.5, length 230 mm
102001	1.966.000	Press profile insert loose, trapezoidal pressing Loose extruded profile insert, trapezoidal extrusion, 1 pair for 10 6120, size 230 mm
102002	1.849.000	Press profile insert loose, roll pressing Loose press-fit insert, roll-formed, 1 pair for 10 6136, size 230 mm
102003	1.849.000	Press profile insert loose, mandrel pressing Loose press-fit insert, mandrel-pressed, 1 pair for 10 6134, size 230 mm
102004	1.849.000	Press profile insert loose symmetrical, oval pressing Loose symmetrical press-fit insert, oval press fit, 1 pair for item no. 10 6144
102006	1.966.000	Loose crimping die, trapezoidal crimp 16–25–35 mm² Crimping profile insert, loose, trapezoidal crimping for insulated and non-insulated wire end ferrules to DIN: 16 - 25 - 35 mm²
102007	1.966.000	Compression profile insert loose, insulated and non-insulated wire end ferrules DIN: 25 and 50 mm² Press profile inserts loose, trapezoidal pressing insulated and non-insulated ferrules DIN: 25 and 50 mm²
102008	1.849.000	Press profile insert loose asymmetrical, standard pressing Loose asymmetrical press-fit insert, standard press fit, 1 pair of 10 6144
102016	1.742.000	Press profile insert, loose, roll pressing for insulated plug connectors Loose extruded profile insert, roll-formed for insulated connectors with side conductor connection, 1 pair of 10 6128
102017	1.742.000	Compression profile insert, loose, roller compression for non-insulated blade receptacles Loose crimping die, roll crimping for non-insulated flat-blade connectors, with side conductor connection, 1 pair of 10 6130, size 220 mm
